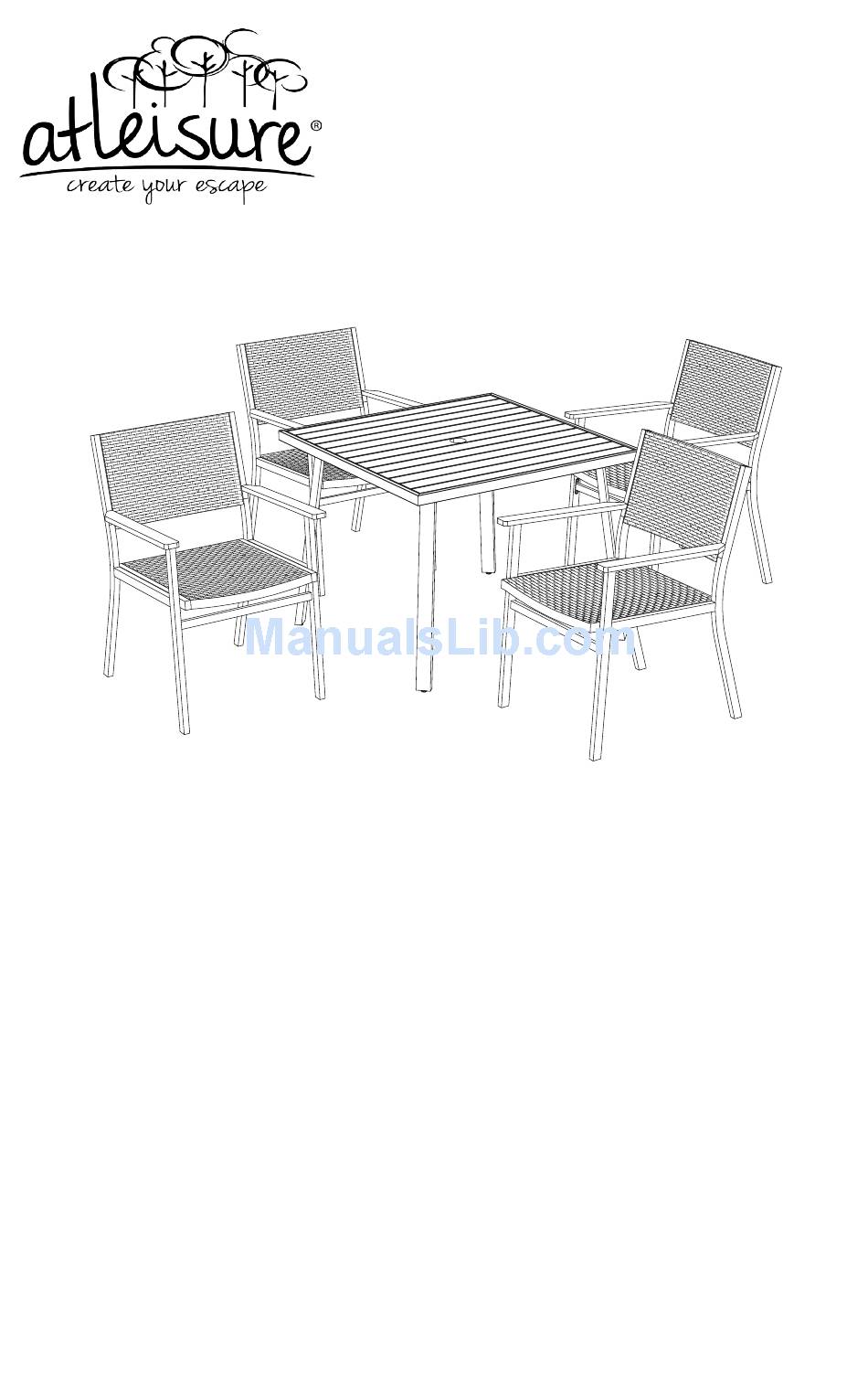

5 PC Wicker Dining Set
Assembly & Care Instructions
Item: 1896723 / 1896724
Model: FRN- 105260
IMPORTANT : RETAIN FOR FUTURE REFERENCE
READ CAREFULLY
For assistance with assembly, parts, or customer service, please contact:
ATLeisure, LLC
Toll Free: 1-855-880-7205 (English is offered)
8am - 5pm, Monday through Friday, Eastern Standard Time
Email: customerservice@atleisure.com or visit our website at www.atleisure.com
DO NOT RETURN TO STORE
For indoor/outdoor domestic use only. Not for commercial use.
Designed in USA
Made in China
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atleisure FRN-105260
Summary of Contents for Atleisure FRN-105260
- Page 1 ATLeisure, LLC Toll Free: 1-855-880-7205 (English is offered) 8am - 5pm, Monday through Friday, Eastern Standard Time Email: customerservice@atleisure.com or visit our website at www.atleisure.com DO NOT RETURN TO STORE For indoor/outdoor domestic use only. Not for commercial use. Designed in USA...
- Page 2 Contents Package Contents ......2-3 Assembly ........4-8 Care and Maintenance .
-
Page 3: Package Contents
Package Contents CAUTION: Do not use sharp tools or equipment such as a knife or scissors when removing the protective material, as it may damage the product. Before assembling make sure all parts are present. If any part is missing or damaged, do not attempt to assemble the product. -
Page 4: Assembly
Table Assembly Step 1: Place tabletop (A) upside down on a soft, flat sur- face. Align one table leg (B) with corresponding tabletop hole. Place washer (D) over the hole and insert bolt (C). Use hex key (F) to tighten bolt, being careful not to overtighten. Repeat steps for remaining table legs Step 2: Turn table over and place on flat surface. - Page 5 Chair Assembly Step 1: Place contents on soft, flat surface. Attach the chair seat (A) to the left chair leg (B) with two washers (H) and two long bolts (G). Use hex key (J) to tighten bolts, being careful not to overtighten. Step 2: Attach the chair back (D) to the left chair leg (B) with a washer (H) and a short bolt (F).
- Page 6 Chair Assembly (continued) Step 3: Attach the right chair leg (C) to the chair seat (A) with two washers (H) and two long bolts (G). Use hex key (J) to tighten bolts, being careful not to overtighten. Step 4: Attach the right chair leg (C) to the chair back (D) with a washer (H) and a short bolt (F).
- Page 7 Chair Assembly (continued) Step 5: Finish attaching the chair legs (B and C) to the chair seat (A) with washers (H) and short bolts (F). Use hex key (J) to tighten bolts, being careful not to overtighten. Step 6: Attach the support bar (E) to the front two legs with washers (H) and short bolts (F).
-
Page 8: Care And Maintenance
Chair Assembly (continued) Step 7: Place the fully assembled chair upright onto flat surface to level. Once leveled, fully tighten all of the bolts with hex key (J). Attach all bolt caps (I) onto the bolts. The chair is now ready for use. Care and Maintenance □... -
Page 9: Warnings And Cautions
This warranty does not cover damage due to neglect, abuse or weather related damage. For full warranty disclosure, email us at customerservice@atleisure.com, call toll free at 1-855-880- 7205 or send mail to: 1040 Boulevard SE Ste. B, Atlanta GA 30312... - Page 10 ATLeisure, LLC 1040 Boulevard SE, Suite B Atlanta, Georgia 30312, USA Customer Service Toll Free 1-855-880-7205 8am - 5pm Eastern Time, Monday through Friday www.atleisure.com...
