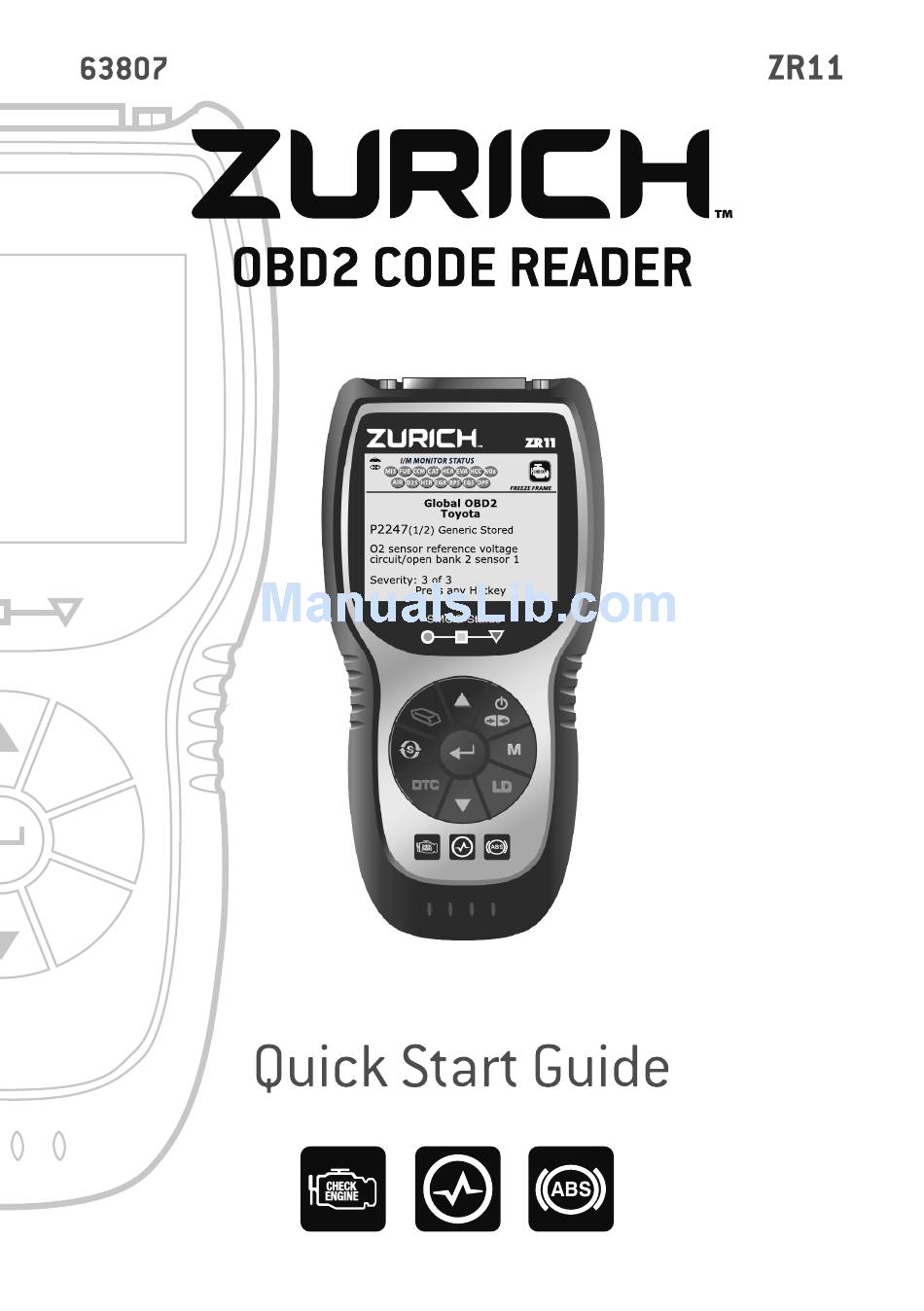

Zurich ZR11 Quick Start Manual

Zurich ZR11 Quick Start Manual

Obd2 code reader
Hide thumbs Also See for ZR11:

Advertisement

17g

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZR11 and is the answer not in the manual?

Questions and answers

Steve
June 25, 2025

Code 1201, 1223,,1247 ABS…what is diagnosis, how to fix problem?

Mark Kearns
May 21, 2025

how to reset camshaft sensor on chevy 5.3

james shepherd
May 4, 2025

how to clear all cars off memory vehicle slection

Summary of Contents for Zurich ZR11

  • Page 2 Please go to www.zurichdiagnostics.com to download and read the Master Manual for full details on functionality and usage. IMPORTANT SAFETY INFORMATION Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
  • Page 3 Controls 1. LCD Display Screen 7. MAIN MENU Button 2. SMOG Status LEDs 8. LIVE DATA button 3. ERASE Button 9. UP Button 4. SYSTEM MENU Button 10. ENTER Button 5. DTC Button 11. DOWN Button 6. POWER/LINK Button 12. Cable Connector Item 63807 For technical questions, please call 1-888-866-5797.
  • Page 4: Display Functions

    Display Functions 1. Monitor icons - Indicate which Monitors are supported by the vehicle under test, and whether or not the associated Monitor has run its diagnostic testing. Comprehensive Component Monitor Misfire Monitor Fuel System Monitor Oxygen Sensor Monitor Oxygen Sensor Heater Monitor Catalyst Monitor Heated Catalyst Monitor EGR System Monitor...
  • Page 5 Retrieve Codes Connect the Code Reader to the vehicle’s Data Link Connector (DLC). The 16-pin DLC is usually located under the dashboard, within 12 inches of center of the panel, on the driver’s side of most vehicles. Check the vehicle’s service manual for the exact location.
  • Page 6 View Results Press the DTC button to view Diagnostic Trouble Codes (DTCs) and Freeze Frame Data (if available). View OEM Enhanced Data Press and release the SYSTEM MENU button to view OEM enhanced Diagnostic Trouble Codes (DTCs). View Live Data Start the engine, then press and release the LD button to place the tool in “Live Data”...
  • Page 7 The manufacturer makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
  • Page 8 Distributed by Harbor Freight Tools Copyright© 2017 by Harbor Freight Tools®. All rights 3491 Mission Oaks Blvd. reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form PO Box 6009 without the express written consent of Harbor Freight Tools. Camarillo, CA 93011 Due to continuing improvements, actual product may 1-888-866-5797...
