Summary of Contents for Helicute H817

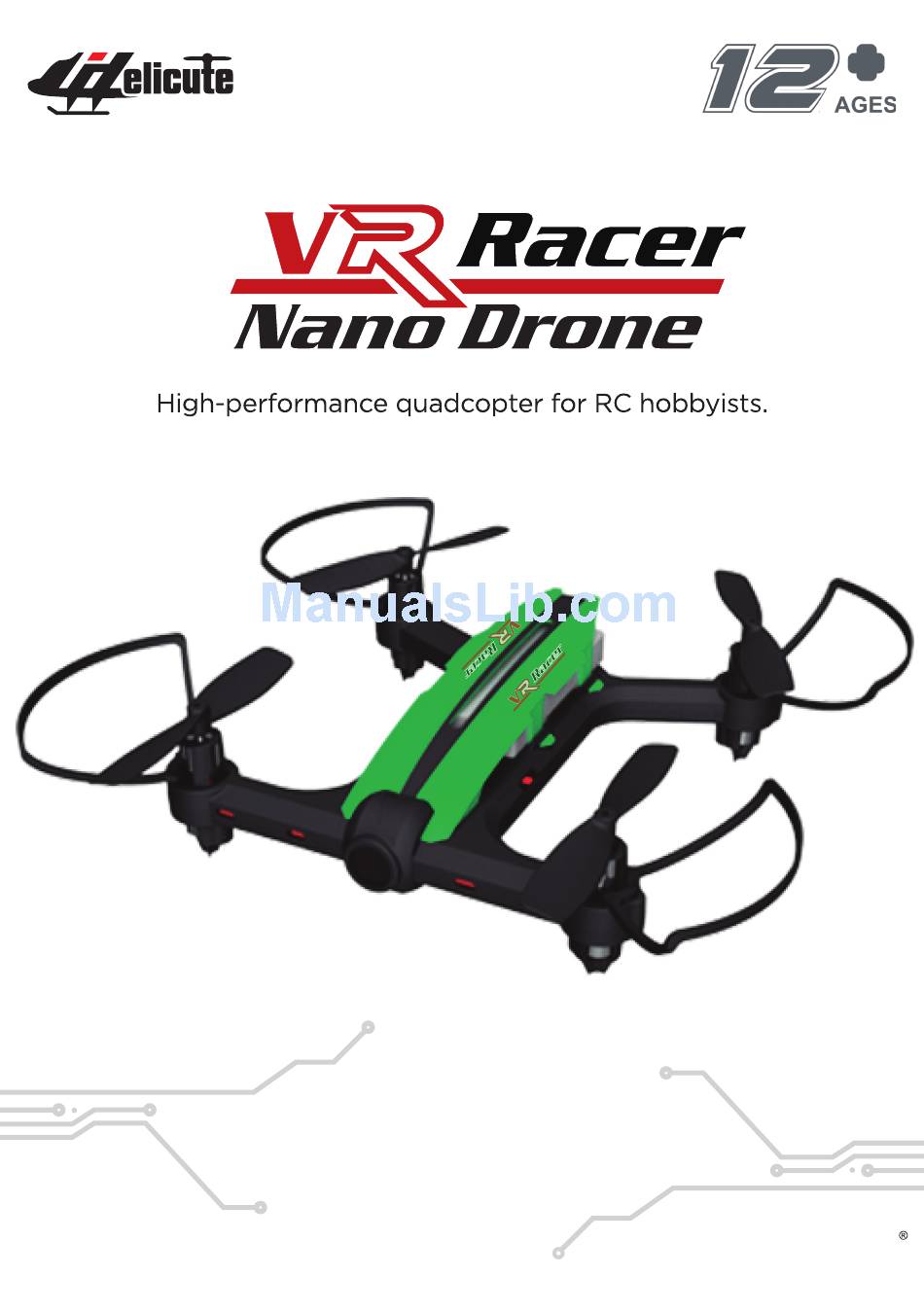

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
6.0 VR-Racer 1.0 GENERAL INFORMATION Helicute accepts no responsibility for any harm or damage caused to the product itself or thereby. The customer bears sole and exclusive responsibility for the appropriate use and handling thereof including, without limitation, its assembly, charging process, use and even selection of the area use. -
Page 3: Safety Regulations
4.0 SAFETY REGULATIONS 1- Keep all small parts out of the reach of children to prevent accidents. 2- The VR-Racer is a powerful machine. You must move the left joystick slowly (the accelerator joystick) to ensure that it does not climb rapidly and cause a collision. 3- When you have finished flying, please remove the Li-Po battery from the VR-Racer. -
Page 4: Remote Controller
5.1 INSERTING THE BATTERIES To insert the batteries in the transmitter, remove the battery compartment cover and insert 4 “AAA ” size 1.5v batteries (included) / paying special attention to the their position to ensure that the transmitter operates correctly. You may need to use a screwdriver to open the rear cover. Recommendations: Batteries must be fitted under the supervision of an adult. -
Page 5: Flying Controls
5.4 FLYING CONTROLS -The left stick controls the ascent/descent and the rotation in both directions. -The right stick controls the forward/backward and lateral displacement in both directions. 5.5 SPEED SELECTOR The VR-Racer has 3 programmable speeds: Press the speed selector (1) to switch between the different programs of speed. When you hear a "beep"... - Page 6 ( 3 ) Trim D: This will correct unintentional lateral displacement of VR-Racer by pressing in the opposite direction. Note: it is advised to make the final trim adjustment when the craft is airborne. The VR-Racer is equipped with an auto-trim system whereby it’s initial settings can be restored, allowing the aircraft to fly in an accurate and level manner.
-
Page 7: App Controller Mode
5.7 APP Controller mode Now you can control your VR-Racer from your Smartphone thanks to the new Helicute App. You will need to download the corresponding version depending on the version you have purchased, there are two versions available: To activate APP mode, you must follow the following steps: 1. -
Page 8: Vr-Racer
6.1.1 PRECAUTIONS YOU SHOULD TAKE WITH YOUR BATTERIES VR-Racer is equipped with a rechargeable Li-Po battery. - Do not use or leave the battery near a fire or source of heat. - Do not hit, throw or drop the battery on any hard surface. - Do not immerse the battery in water;... -
Page 9: Electronic Protection System
6.3 ELECTRONIC PROTECTION SYSTEM - Low-voltage protection: the VR-Racer is equipped with a system whereby, when the VR-Racer battery level is low, the control system will cut the power supply to the rotors. In this case, the battery will have to be recharged to resume flying. 6.4 MAINTAINING YOUR VR-RACER 1. -
Page 10: Return Home Function
To disable it, the process is exactly the same, keep pressed the same button during the same interval of time until you hear the beep stop intermittently. To reset the forward direction and set a new one you only have to reboot your VR-Racer disconnecting the battery and reconnecting it. -
Page 11: How To Use The Camera
6.9 HOW TO USE THE CAMERA Depending on the model of VR-Racer purchased this will come equipped with camera or not. If you have purchased one of the versions with built-in camera, here you will learn how to use it. 6.9.1 HOW TO SWITCH THE CAMERA ON/OFF The VR-Racer has a specific switch that you can use to turn the camera on and off, regardless of the model you have... -
Page 12: List Of Your Vr-Racer Components
- Access the menu of your Smartphone menu of WiFi network and connect to the WiFi network generated by the VR-Racer. - Once connected, open the Helicute APP and press the PLAY button, if the connection is successful should be able to view the real-time image of the VR-Racer.
