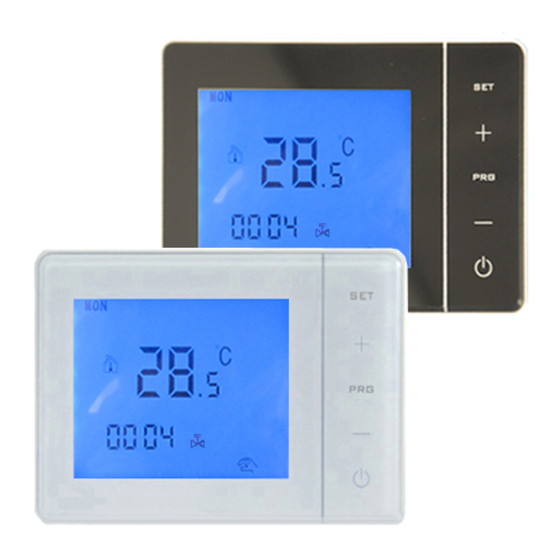

HY01WE Thermostat User Manual
Many thanks for your selection of our products and services, and also for your trust and support to
us.
Product Specifications
Power source：100-240VAC 50/60HZ
Display accuracy：0.5°C or 1°F
Probe sensor：NTC(10k)1%
Contact capacity：3A/250V(WW) 16A/250V(WE)
Working environment temperature：0~50°C/32~122°F
Range of temperature adjustment：5~35°C/41~95°F
HY01WE series is a programmable thermostat designed for floor heating.Application or helping
to limit floor temperature.
Displays&Buttons
Web:www.cn-hysen.com // Email:hysen@cn-hysen.com
Range of temperature display：0~40°C/32~104°F
Output：Switch relay
Insulating condition：Normal environment
Running program： Set per 1 week as a cycle
Installation：Wall mounted or on battery seat
Size(mm)：130*90*17
Advertisement
Summary of Contents for Hysen Control Technoloty HY01WE
-
Page 1: Product Specifications
Running program： Set per 1 week as a cycle Working environment temperature：0~50°C/32~122°F Installation：Wall mounted or on battery seat Range of temperature adjustment：5~35°C/41~95°F Size(mm)：130*90*17 HY01WE series is a programmable thermostat designed for floor heating.Application or helping to limit floor temperature. Displays&Buttons... -
Page 2: Operation Key
Web:www.cn-hysen.com // Email:hysen@cn-hysen.com Fig.1 Operation Key symbols represent set key：short press it to switch programme mode to manual mode. At programme mode, press “ ”or” ” to adjust the value, it will automatically enter into temporary manual mode Increasing key clock key：short pressing is setting clock,long pressing is setting programme Keys locked/unlocked：press “... - Page 3 Web:www.cn-hysen.com // Email:hysen@cn-hysen.com Mode explain printscreen Press“ ”to switch into programme mode（As shown in picture one） Programme illustration 5+2 programme function (advanced options contain of 6+1 and7 days programme function，you can also cancel this programme function ) Programming that is Monday to Friday is the same setting value, and Saturday to mode Sunday is the same setting value.
- Page 4 Web:www.cn-hysen.com // Email:hysen@cn-hysen.com Range：1°C~5°C： Start 1、When the setting temperature is higher than or equal to the sum of indoor temperature and the start differential differential temperature, the heating equipment will turn on. temperature 2、When the indoor temperature is higher than or equal to the sum of the setting temperature and the （A2）...
- Page 5 Web:www.cn-hysen.com // Email:hysen@cn-hysen.com Valve control option 0 represent valve is controlled by the thermostat ； （B1） 1 represent valve is not controlled by the thermostat, it’s always closed。 0 close，1 open。 Anti-freezing Anti-freezing function：when valve is continuously closed over100 hours，it will be opened (Descaling function) for3 minutes。...
-
Page 6: Product Ordering Information
Web:www.cn-hysen.com // Email:hysen@cn-hysen.com Wring Illustration 1、Wiring Terminals Wiring Terminal Remarks NC (Normally-Closed point) NO (Normally-Open point) N:AC Neutral L:AC Live RS485 RS485 Warranty： We offer the warranty of 12 months, from the sales day. The products of our company can have lifetime warranty ,if it is not the quality problems, or beyond the warranty period, we will charge for the after-sale service. - Page 7 Web:www.cn-hysen.com // Email:hysen@cn-hysen.com Please use a small screwdriver Up the screwdriver with a little Please use two screw to fasten the (about 3.5mm width) insert. The pressure, and Open the LCD penel power panel the hidden box. notch of LCD broad about 4mm LCD panel and power panel should LCD panel also be connected to the Please press the cover softly and...
