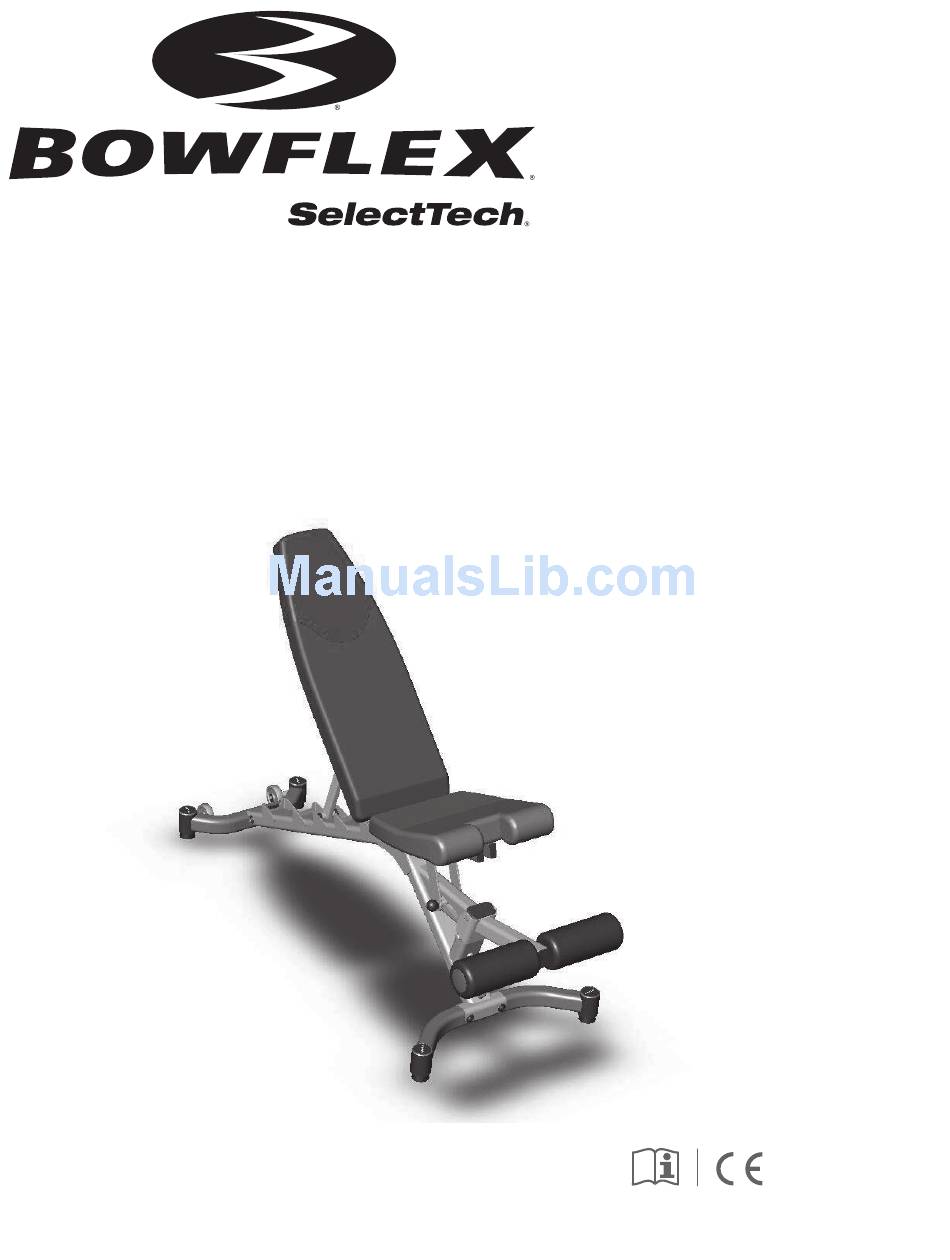

- Page 1 SelectTech 5.1 Bench ® Assembly / Owner’s Manual This product is compliant with the applicable CE requirements.
-
Page 2: Table Of Contents
Nautilus, Inc. | ® indicates trademarks registered in the United States. These marks may be registered in other nations or otherwise protected by common law. Bowflex, the B logo, SelectTech, Nautilus, Schwinn, and Universal are trademarks owned by or licensed to Nautilus, Inc. -
Page 3: Important Safety Instructions
Important Safety Instructions This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury. Before using this equipment, obey the following warnings: Read and understand all warnings on this machine. Carefully read and understand the Assembly Manual. •... -
Page 4: Safety Warning Labels
Safety Warning Labels The following safety warnings are located on the Bowflex SelectTech 5 . 1 Bench . Please read all safety ® ® precautions and warning information prior to using your product . Be sure to replace any warning label if damaged, illegible, or missing . -
Page 5: Before You Assemble
3 . When attaching two pieces, gently lift and look through the bolt holes to help guide the bolt through the holes . 4 . As a general rule, and for all bolts and nuts on your Bowflex ® SelectTech 5 . -
Page 6: Parts
Parts Item #: Qty: Description: Item #: Qty: Description: FRAME ASSY PAD, HEAD STABILIZER, REAR BHHB 5/16” x 2 .5” BLK STABILIZER, FRONT BHHB 3/8” x1” BLK LEG HLD DOWN ASSY BHHB 3/8” x 3” BLK TUBE, FOAM ROLLER FLAT WASHER 5/16” PAD, FOAM ROLLER FLAT WASHER 3/8”... -
Page 7: Assembly
Assembly STEP 1: Attaching Front and Rear Stabilizers Parts: Assembly Steps: • (1) Bench Frame - Item 1 • (1) Rear Stabilizer - Item 2 1-1 Attach the Front Stabilizer (2) to the Bench Frame • (1) Front Stabilizer - Item 3 (1) using the hardware shown . - Page 8 STEP 2: Attaching Seat Pad to Main Frame Parts: Assembly Steps: • (1) Bench Frame Assembly from Step 1 • (1) Seat Pad Assembly - Item 8 2-1 Align the Seat Pad Assembly (1) to the Bench Frame Assembly between the open holes as shown .
- Page 9 STEP 3: Attaching Back Assembly to Main Frame Parts: Assembly Steps: • (1) Bench Frame Assembly from Step 2 • (1) Back Pad Assembly - Item 9 3-1 Align the Back Pad Assembly (9) to the Bench • (1) Head Pad Assembly - Item 10 Frame Assembly between the open holes as shown .
- Page 10 STEP 4: Attaching Leg Hold Down Attachment Parts: • (1) Bench Frame Assembly from Step 3 - Item 1 4-2 Slide both Leg Pads (6) onto the Leg Pad Bar (5) • (1) Leg Hold Down Tube - Item 4 so that the entire assembly is centered on the Leg •...
- Page 11 STEP 5: Final Inspection You have successfully completed assembly of your Bowflex SelectTech 5 . 1 Bench . Please inspect your ® ® exercise bench to ensure that all fasteners are tight and components are properly assembled . Review all warnings affixed to machine .
-
Page 12: Bench Positions
Bench Positions 30 degrees Flat 60 degrees 45 degrees 90 degrees Decline with Seat raised... -
Page 13: Bench Maintenance
Check the frame of the bench for any sign of cracking or permanent bending . If you find this situation, do not use the bench and contact contact your local distributor immediately . Companion Exercise Equipment The Bowflex SelectTech 3 .1 and 5 .1 benches are designed for use with Bowflex SelectTech dumbbell ® ®... - Page 16 8014xxx.040117.A...
