Summary of Contents for Apex Fires HAVANA

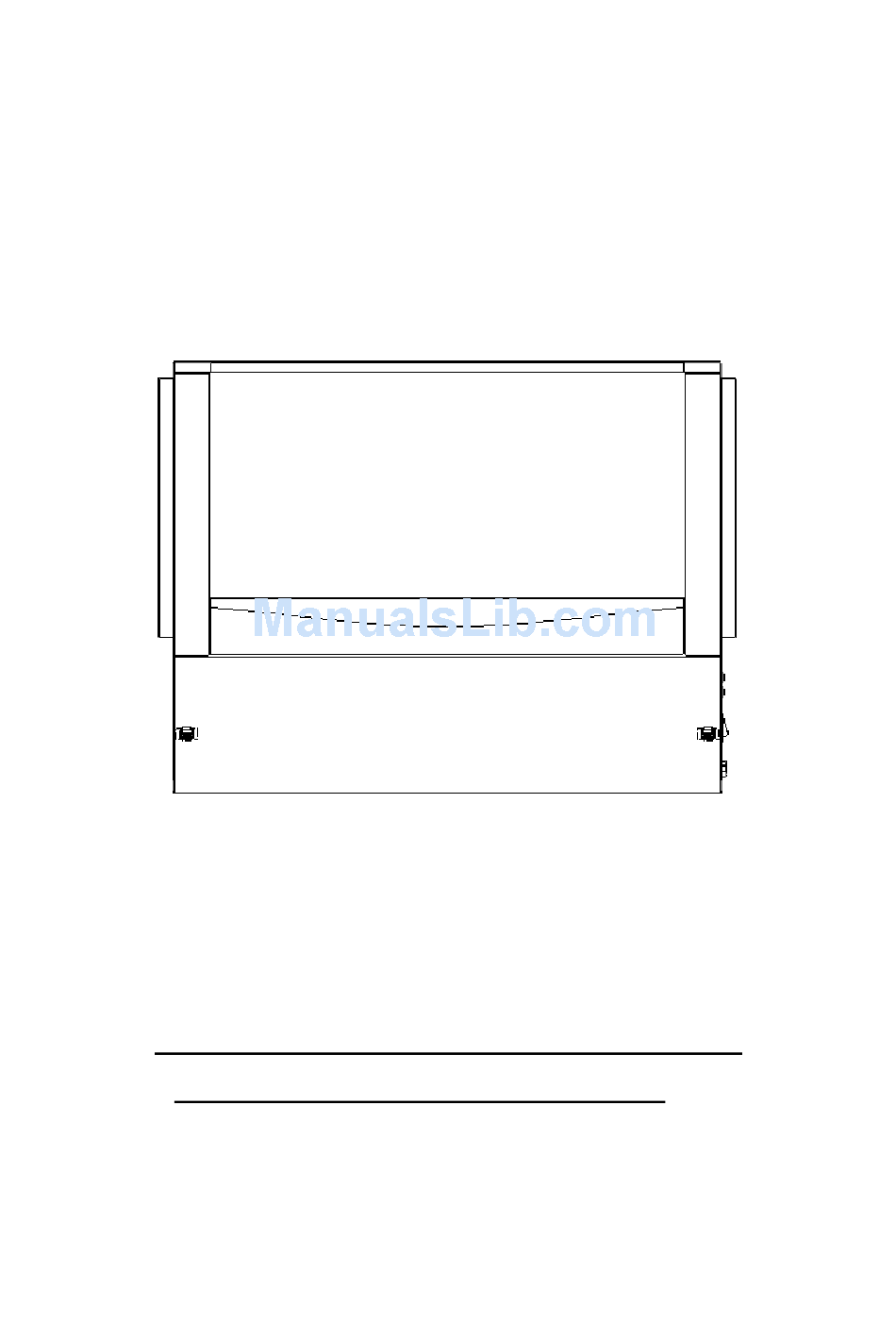

- Page 1 2kW Wall Mounted Electric Fire Complete with curved glass front panel Installation Instructions & Operating Manual HAVANA Please read the instructions carefully before the installation or use of this electric fire and retain for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION 1: WARNINGS & ELECTRIC SPECIFICATIONS 1.1 Important Safety Instructions .................3 1.2 Specifications ......................4 SECTION 2: INSTALLATION 2.1 Tools required .......................4 2.2 Unpacking the Fire ....................4 2.3 Contents List ......................4 2.4 Locating Your Electric Fireplace ...............4, 5, 6, 7 SECTION 3: OPERATING INSTRUCTIONS 3.1 Operating by Manual Buttons ................8 3.2 Operating by Remote Handset ................9... -
Page 3: Section 1: Warnings & Electric Specifications
SECTION 1 WARNINGS & ELECTRIC SPECIFICATIONS Important Safety Instructions This symbol alerts you to potential hazards that can kill or hurt you and/or others. WARNING! Risk of Fire! DO NOT: • install or operate damaged heater • modify heater • operate the heater without fully assembling all components WARNING! Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. -
Page 4: Specifications
Specifications Voltage …………………………………………. 220-240 V AC, 50 Hz Total Amps ……………………………………... 8.7 AMP Total Watts……………………………………….2000 W atts …………………………………… Mains Cable 1 x 1.7m (approx) …………………………………… Illumination LED system (no replaceable parts) Dimensions…………………………………….…910mm L x 180mm W x 580mm SECTION 2 INSTALLATION 2.1 Tools required Magnetic Phillips Screw Driver... - Page 5 WARNING! Keep Curtains and other furnishings at least 0.9m from the front and side of the electric fireplace. Clearance to Combustibles Sides ……………………………………..200mm / 8 ins. Floor …………………………………….300mm / 12ins Top …………………………….……..….200mm / 8 in. Back ……………………………….…..0mm / 0 in. CEILING 200mm 8inch...
- Page 6 Fig. 2 Fig. 3 Fig. 4...
- Page 7 Fig. 5) Fig. 6) Set the cable always as below picture not under the heater outlet.
-
Page 8: Section 3: Operating Instructions
SECTION 3 OPERATING INSTRUCTIONS This appliance can be operated by both remote control and manual button. Once the unit has been properly connected to an earthed electrical outlet, turn on the main switch located on the left hand side of the appliance. -
Page 9: Operating By Remote Handset
3.2 Operating by Remote Handset Make sure the battery are installed properly in the remote control. The effective range of the remote control is up to 4 metres or 13 feet. Multifunction Infrared Remote Handset ICON TITLE FUNCTION POWER Press once will turn the fire on. Press again turns fire the off. The fire has four flame effect settings. -
Page 10: Section 4: Maintenance
SECTION 4 MAINTENANCE Warning: Before any maintenance and/or cleaning the exterior of the fireplace, disconnect the unit from the power supply and leave until cooled off. 4.1 Remote Handset Battery Replacement Replace with two AAA batteries. Make sure the batteries are installed correctly in the remote control. 4.2 Maintenance of Motors The motors used on the fan and flame effect are pre-lubricated for extended bearing life and require no further lubrication. - Page 11 This fire complies with the European Safety Standards (LVD) EN 60335-2-30 and the European Electro Magnetic Compatibility (EMC) EN 55014-1, EN 55014-2 and EN 61000-3-2 and EN 61000-3-3 which covers the essential requirements of the EC Council Directives and 2014/30/EU.
