Dear customer,

We are so pleased and honoured by your decision to buy our roof box. We hope you will find this

box useful and joy to use. However, it is of high importance that you read carefully this user's

manual before fitting the roof box and follow these instructions during the assembly operations.

BEFORE FIITING THE ROOF BOX

This ULTRAPLAST MD 19 roof box is good for all the standard roof racks with the rails of the

following size: width : max 95 mm

height : 15 - 40 mm

First of all, attach a roof rack to the roof (follow the assembly instructions of the respective

manufacturer). For perfect stability, the distance between the rack rails should be the longest

possible. When used on a 5-door car with the rear door opening upwards, place the roof rack

the way it is possible to freely open the rear (trunk) door.

The roof box is equipped with a fit-on system which allows for fast and easy assembly with no need

for any extra tools.

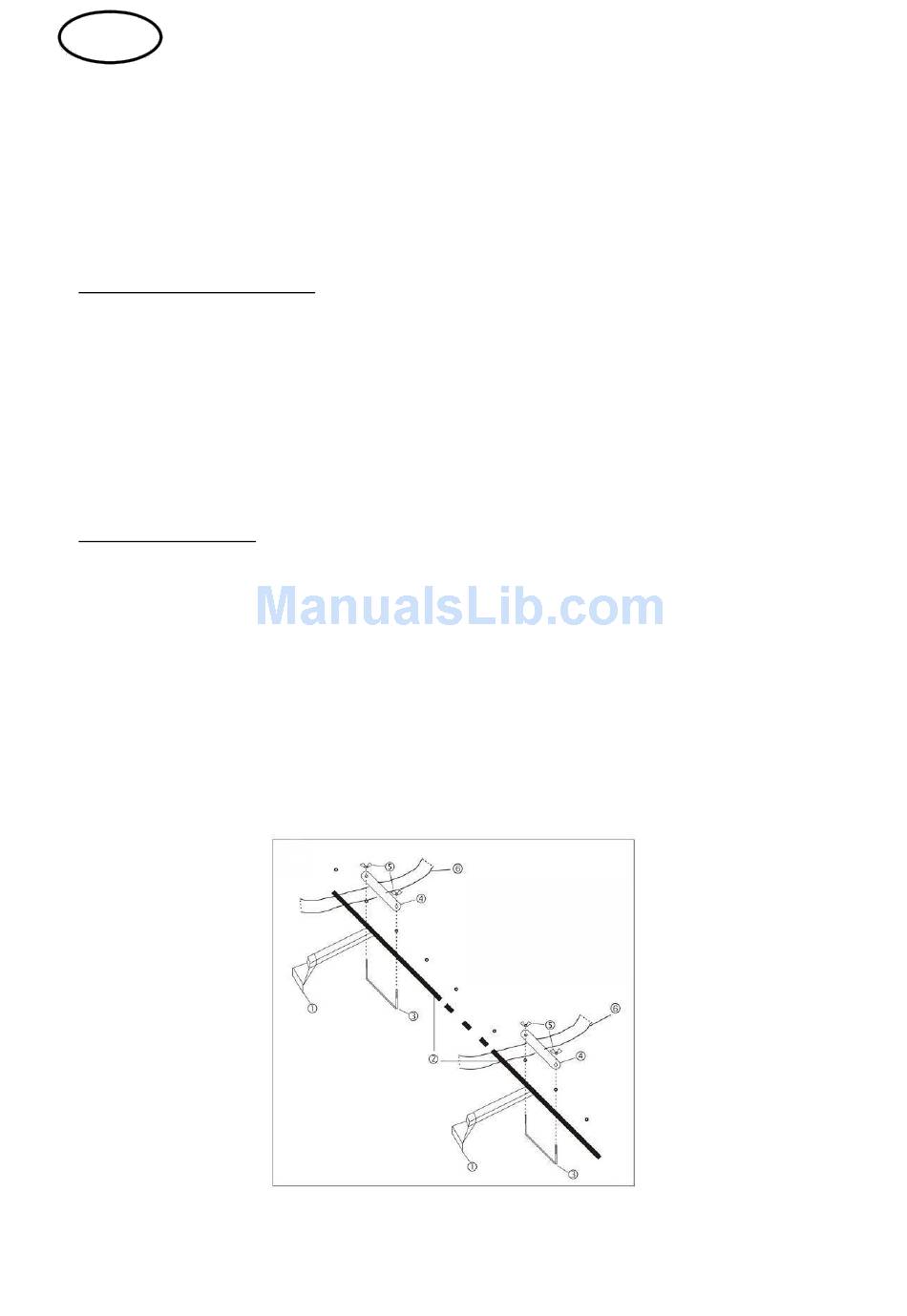

Place the roof box parallel onto the roof rack and attach the fitting elements (follow the figure

below). The anchoring straps must be placed under the plate between the supplied U-shaped

anchor arms.

1. roof rack

2. roof box

3. locking bracket / U- anchor

4. plate

5. locking bolt nut

6. anchoring strap/belt

User's Manual for MD19 Roof Box

STANDARD LOCK

Table of Contents

Need help?

Do you have a question about the MD19 and is the answer not in the manual?

Page 1 BEFORE FIITING THE ROOF BOX This ULTRAPLAST MD 19 roof box is good for all the standard roof racks with the rails of the following size: width : max 95 mm...
Page 2 Tighten evenly the bolt nuts by hand at the torque of 2,0–2,5 Nm – there is no need to use any wrenches or other tools. Make sure the bolt nuts are tightened evenly. LOADING THE ROOF BOX Make sure the maximum loading capacity of the car roof, as stated by the car manufacturer, is never exceeded.
Page 3 CLOSING THE ROOF BOX WITH A STANDARD LOCK MD19 roof box is equipped with two standard safety locks. Close the roof box by evenly tilting the top cover so that the both locks click (check the locking visually from the front and check the safety pin –...
Page 4 SECURING THE ROOF BOX After closing MD19 roof box it is absolutely necessary to engage the safety pin by moving it upward. Always check the safety after a long trip with the roof box. After driving 10 – 30 km check whether the box and rack are loaded appropriately, the safety pin engaged, the rack stable and the box locked.
Page 5 No. 1947, 4961-213/00 of Nov 11, 2000 has been issued by State Transportation Authority of Ministry of Transport, Posts and Telecommunication of the Slovak Republic. Should you have any queries, do get in touch on +44 (0) 7342 270 614 or email us on: roofbox@ultraplast.eu...
