Lian Yi Da Science CM388CWAS User Manual

Wireless camera

Thank you for choosing this wireless camera, please read this manual carefully before you use

it, it will benefit you to use it better.

1. Introduction

CM388CWAS wireless camera uses ISM wave band which can transfer audio and video signal

in the frequency scope of 2400～2483MHz, it can be used in baby monitoring、patient custody、

security, surveillance, etc.

● Image sensor: 1/3 color CMOS sensor

●Support NTSC or PAL video system

●Display Size: NTSC: 510×496

●Pixel Size: 9.2um×7.2um

●Video output: can be used as wired and also wireless

●Wireless frequency : 2.4GHz, 2.427GHz, 2.454GHz, 2.481GHz

●Audio modulation

●Open transmission distance: 100m

●Rotating angle：electric rotating 270 degrees from left to right

●Size: ￠65x95mm

●Wight: 0.15kg

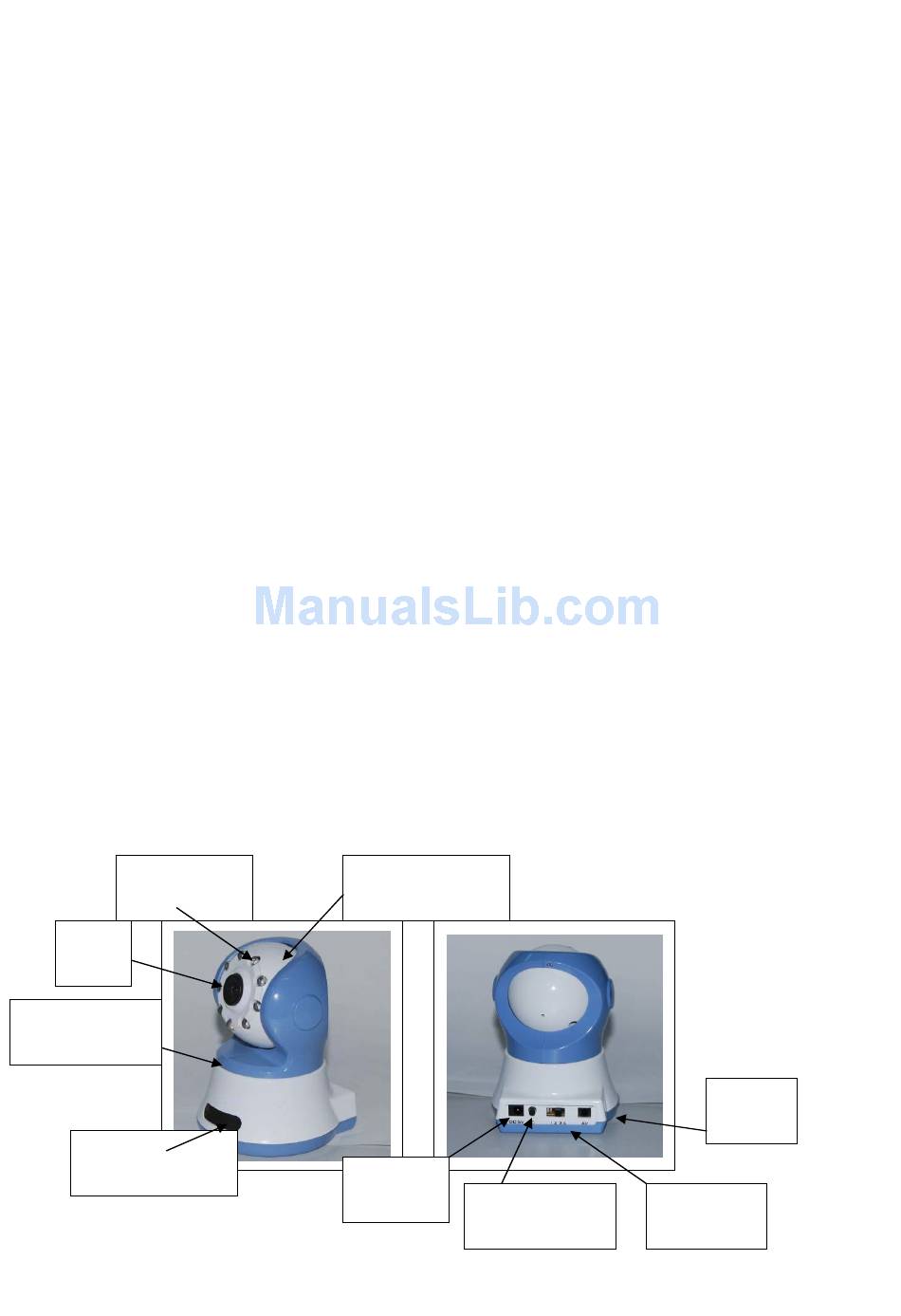

Infrared

light

Lens

270 degree Rotation

remote

sense

window

4.1. It is more convenient for you to see the stable environment when you install the

CM388CWAS Wireless Camera User Manual

PAL: 628×586

frequency:

6.0MHz

rotating 90 degrees up and down by hand

90 degree rotation

power socket

POWER Exchange Key

AV output

Channel switch

Table of Contents

Do you have a question about the CM388CWAS and is the answer not in the manual?

Page 1 1. Introduction CM388CWAS wireless camera uses ISM wave band which can transfer audio and video signal in the frequency scope of 2400～2483MHz, it can be used in baby monitoring、patient custody、 security, surveillance, etc.
Page 2 CM388CWAS in a fixed position, or install it on the other places such as the desk、baby bed nearby and so on. 4.2. Please install CM388CWAS in a better-lightened place, so you can get the clear picture. 4.3. Please install CM388CWAS in an open place, so the transferring distance will be farther.
Page 3 ④ The speed change 4 mode: transfer about 20 circles/minute, the blue indicator light will be lightened one time per 0.2S. 3). Power off: Under “power on” mode, press the key for 3 seconds, the power will be off. 5.6. The key illumination of remote control Power key: Under “off”...
Page 4 each other easily, result in poor picture quality.) d. Antenna should be far away from electromagnetic shielding obstructions, such as copper, iron and so on. e. If there is a high-power signal with the same frequency and a car radio receiver which is working, it will interfere the receiver.
