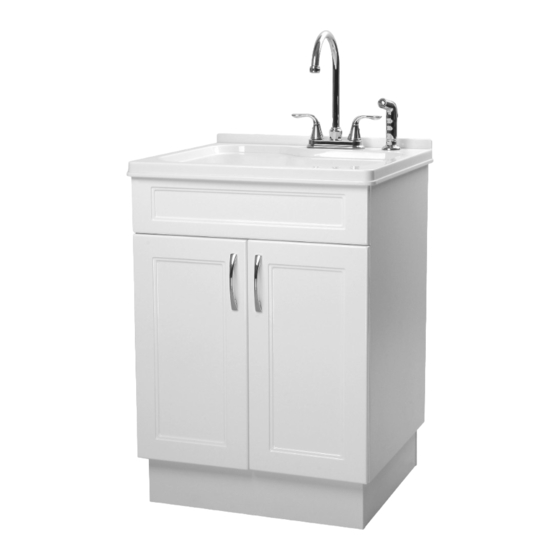

Summary of Contents for Transform QL030

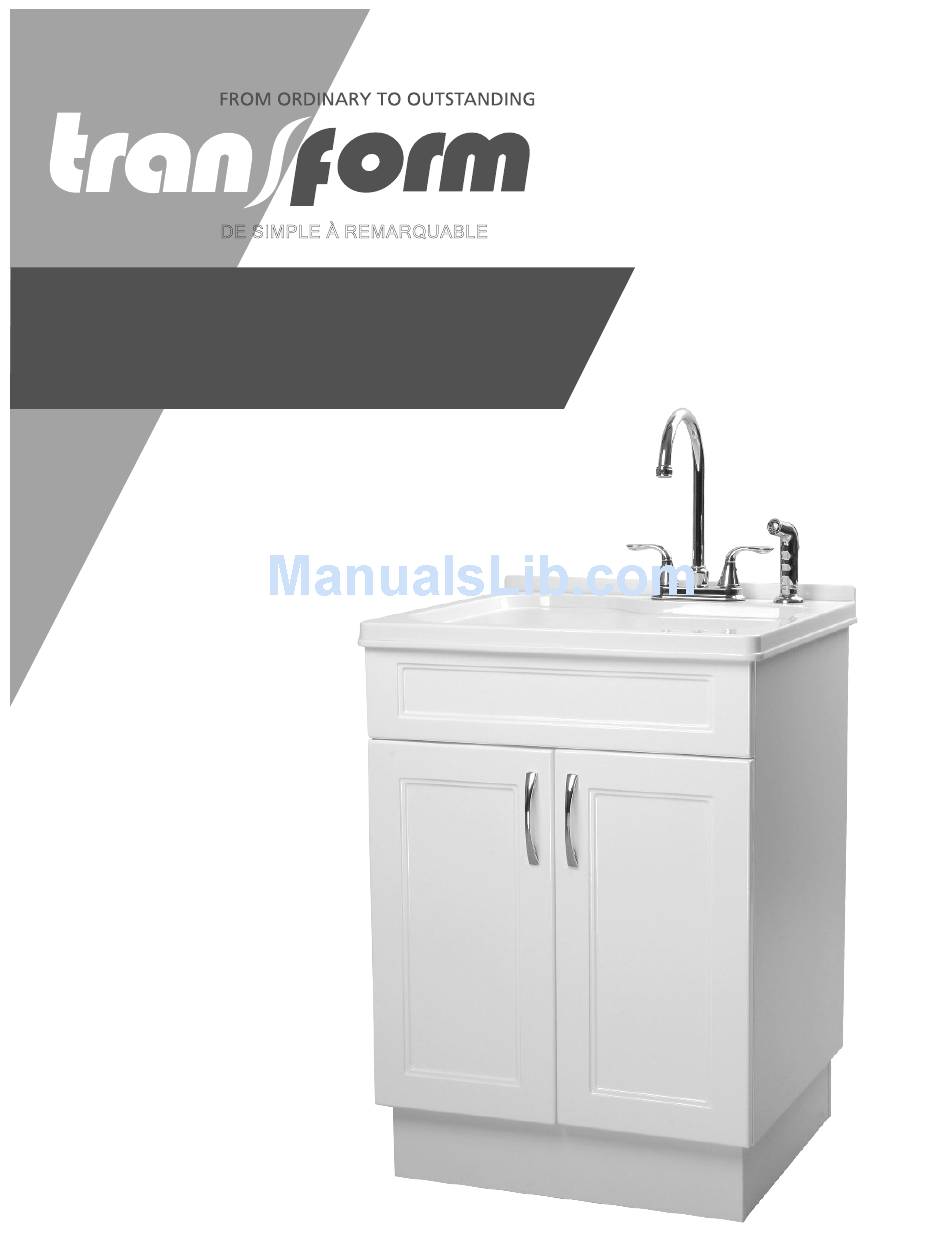

  • Page 1 DE SIMPLE À REMARQUABLE Utility Sink Évier utilitaire Model/Modèle No. QL030 Owner’s Manual Manuel de l’utilisateur...
  • Page 2: Table Of Contents

    . 4 . Protect the entire surface during installation . 5 . All holes drilled into the unit must be done from the finished surface side with extreme care and caulked very carefully to form a watertight barrier . QL030...
  • Page 3: Warranty

    Warranty ONE YEAR LIMITED WARRANTY A thorough inspection must be made before installation and any damage must be promptly reported . We will not be liable for failures or damage that could have been discovered or avoided by proper inspection and testing prior to installation . Conglom Kitchen &...
  • Page 4: Pre-Installation

    Pre-Installation TOOLS/MATERIALS REQUIRED (NOT SUPPLIED) Adjustable Needle nose Phillips wrench pliers screwdriver Utility knife Pipe wrench Sealant Carpenter’s level Hacksaw Safety gloves Safety googles Hex Key PARTS REQUIRED (NOT SUPPLIED) P-Trap Tail Pipe Supply Lines QL030...
  • Page 5: Package Contents

    Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Door Handles Cabinet Feet Cabinet Base Utility Sink Cabinet Strainer Basket Strainer Assembly Faucet Assembly Sprayer Support Sprayer with Hose Door Handle Screws Base Screws CONGLOMKB .COM Please contact cs@conglomkb.com or 1-877-333-0098 for further assistance .
  • Page 6: Installation

    1 . Insert the door hand screws (AA) into the pre-drilled holes on each door . 2 . Attach the door handles (A) and hand tighten the door handle screws (AA) . 3 . Repeat on other door . QL030...
  • Page 7: Faucet And Sprayer Installation

    Installation (continued) FAUCET AND SPRAYER INSTALLATION Before installing, carefully unpack the faucet and ensure no parts Sprayer and hose are missing . Faucet 1 . Insert the spray housing support through the pre-drilled hole on the sink corner . Screw the nut onto the threads and hand tighten .
  • Page 8: Mounting The Utility Sink

    8 . Place the gasket (3) back in its original position . 9 . Screw on the cartridge cover (4) . Do not over tighten . 10 . Place the handle (6) over top and secure the screw (5) with an hex key, replace the water indicator (7) . QL030...
  • Page 9: Care And Cleaning

    Care and Cleaning UTILITY SINK This utility sink is manufactured from ABS . With the proper care and maintenance it will provide you with many years of enjoyment . Do not Use common household cleaners (non- Do not allow your ABS surface to come into abrasive) or a mild liquid dish washing contact with products such as acetone (nail detergent .
  • Page 10: Service Parts

    0098, 8:30 am – 5 pm, EST, Monday–Friday . Identify the required part(s) and have the part number(s) ready . Part Description Code Quantity Door Handles QHL132 Cabinet Feet QHL107 Strainer Basket QHS101 Strainer Assembly QHS150 Sprayer Support QHL110 Sprayer QHL112 Flexible Hose QHL113 Cartridge QHS137 Cabinet Hinges QHL111 Door Handle Screws QHL104 Base Screws QHL108 QL030...
  • Page 11: Consignes De Sécurité

    Table des matières OWNER’S MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Installation du robinet et de la douchette latéral .
  • Page 12: Garantie

    Avant d’appeler, veuillez-vous assurer d’avoir en main : - Le numéro de modèle ou une description; - La preuve d’achat; - Les détails concernant le défaut et/ou le numéro de la pièce de rechange; - Le nom et l’adresse du propriétaire et/ou de l’installateur . QL030...
  • Page 13: Préinstallation

    Préinstallation OUTILS / MATÉRIAUX REQUIS (NON INCLUS) Tournevis Clé Pinces Phillips Couteau à lame Clé à molette Mastic retractable Gants de Niveau à bulle Scie à métaux sécurité Lunettes de Clé hexagonale Ruban sécurité Cache PIÈCES REQUISES (NON INCLUS) Tuyau de Tuyaux Siphon-P vidange...
  • Page 14: Contenu De L'emballage

    CONTENU DE L’EMBALLAGE Pièce Description Quantité Poignées de porte Pattes de l’armoire Base de l’armoire Évier Armoire Panier de crépine Assemblage de la crépine Assemblage du robinet Support Douchette latérale avec tuyau Vis de poignées de porte Vis de base QL030...
  • Page 15: Installation

    Installation INSTALLATION DE LA BASE INSTALLATION DES POIGNÉES DE PORTE Vérifier soigneusement que l’unité ne comporte aucun 1 . Insérer les vis de poignées de porte (AA) dans les trous dommage ou pièces manquantes. Si vous constatez des prépercés sur la porte . dommages ou des pièces manquantes, veuillez communiquer 2 .
  • Page 16: Installation Du Robinet Et De La Douchette Latéral

    Panier 4 . Serrer le contre-écrou à la main . Ne pas trop serrer le contre-écrou puisque ceci pourrait fendre ou déformer le corps de la crépine . Corps de la crépine Joint en caoutchouc Rondelle de friction Contre-écrou QL030...
  • Page 17: Installation De L'évier

    Installation (suite) INSTALLATION DE L’ÉVIER 1 . Appliquer un joint de mastic sur le pourtour de la partie supérieure de l’armoire . 2 . Introduire l’évier sur l’armoire en vous assurant que celui-ci soit de niveau et centré sur le meuble . Essuyer l’excès de mastic.
  • Page 18: Nettoyage

    à essence, huile de pin, etc . friction. Après avoir enlevé la tache, rincer Soyez prudent lorsque vous utilisez des immédiatement avec de l’eau . instruments tranchants qui risquent de tomber et de rayer la surface . QL030...
  • Page 19: Pièces De Rechange

    Pièces de rechange Si des pièces sont manquantes ou si vous avez besoin de pièces de rechange, veuillez nous contacter au cs@conglomkb.com ou 1-877-333- 0098 (du lundi au vendredi, 8h30 à 17h, H.N.E.). Veuillez identifier les pièces nécessaires et ayez les codes à portée de la main. Pièce Description Code Quantité...
  • Page 20 DE SIMPLE À REMARQUABLE Imported by / Importé par : St-Laurent, Quebec, H4S 2C3 1-877-333-0098 cs@conglomkb.com www.conglomkb.com Made in China / Fabriqué en Chine...
