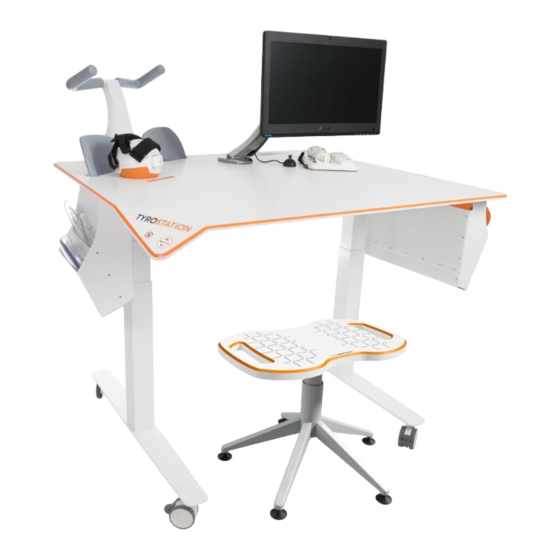

TYROSTATION

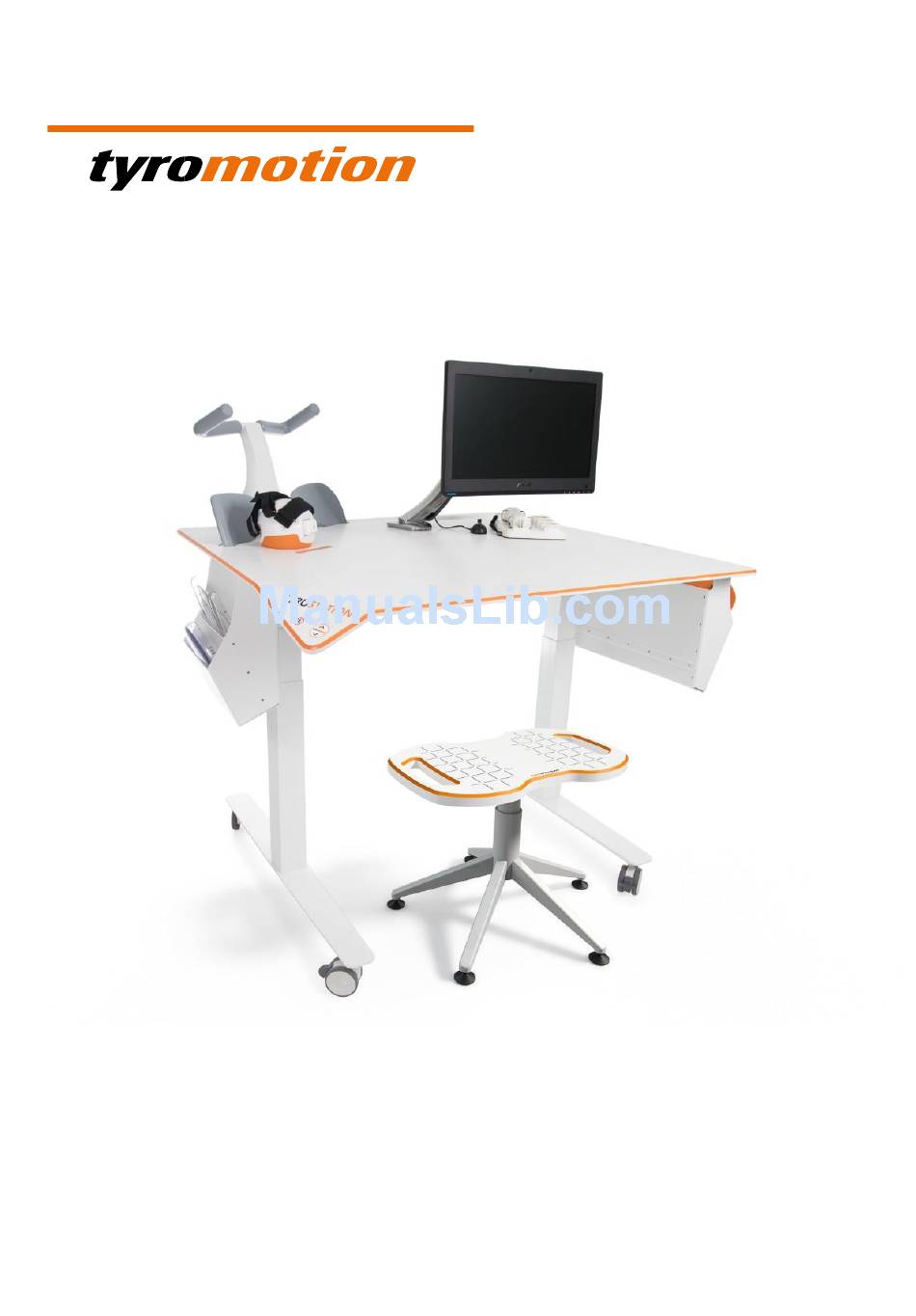

GEBRAUCHSANWEISUNG / MANUAL
Sprachen / Languages: Deutsch (DE), English (EN)
th
Ausgabedatum der Gebrauchsanweisung: 24. Juli 2017 / Issue Date of User Manual 24
July 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TYROSTATION and is the answer not in the manual?

Questions and answers

Summary of Contents for Tyromotion TYROSTATION

  • Page 1 TYROSTATION GEBRAUCHSANWEISUNG / MANUAL Sprachen / Languages: Deutsch (DE), English (EN) Ausgabedatum der Gebrauchsanweisung: 24. Juli 2017 / Issue Date of User Manual 24 July 2017...

  • Page 2: Contact Information

    Contact information: Manufacturer: TYROMOTION GmbH Bahnhofgürtel 59 8020 Graz AUSTRIA PHONE +43 316 908 909 +43 316 231123 9144 EMAIL office@tyromotion.com www.tyromotion.com SUPPORT support@tyromotion.com Distributor: TYROMOTION GmbH Bahnhofgürtel 59 8020 Graz AUSTRIA PHONE +43 316 908 909 +43 316 231123 9144 EMAIL office@tyromotion.com...

  • Page 3: Table Of Contents

    2.2.2 Disposal Adjustment options TYROSTATION 2.3.1 Height Adjustment of the Therapy desk 2.3.2 Referencing the TYROSTATION lifting columns 2.3.3 Height Adjustment of the Therapy stool 2.3.4 Adjust of the Position of the All-in-one-PC Monthly functionality check / Recurring check 2.4.1 Check list functionality test 2.4.2...
  • Page 4 Clinical application Indications/Contraindications Safety Cleaning of the TYROSTATION FAQ-Frequently Asked-Questions EN – 4...

  • Page 5: Introduction

    For legibility reasons, the following pages only refer to the male gender, which, however, always implies the female gender as well. TYROMOTION GmbH rejects any liability for damages to persons or material if safety regulations and instructions relevant to the usage of the TYROSTATION are not observed! 1.1.2 Symbols in the user manual...

  • Page 6: System Content

    The TYROSTATION has been developed as accessory equipment for the medical devices PABLO® and TYMO®. However, the user manual does not contain any information about the therapeutic use of these devices, but only serves to describe the TYROSTATION. TYROSTATION offers all options you require for the application and storage of the mentioned devices from TYROMOTION.

  • Page 7: Warning

    110kg). Make sure to put weight centrally on the therapy desk. The specified load limit applies only to the table top. Only the weight of the devices to be used on TYROSTATION may be put in shelf areas designated for them.
  • Page 8 Adjustment options TYROSTATION: It is possible to pinch body parts under TYROSTATION while lowering the lifting column. Observe the warnings attached to the device! Only therapists may lower the lifting column. Only adjust the height of TYROSTATION after all TYROMOTION devices have been placed in the shelves designated for them.

  • Page 9: Owner's Responsibility

    If you need to lift the TYROSTATION during transport, be careful not to raise the TYROSTATION on the table top or on the storage containers, but always on the table frame.

  • Page 10: Error And Omissions

    TYROMOTION or by other employees of the owner who have been trained by TYROMOTION before being authorized to operate the TYROSTATION. The owner is obligated to maintain a list of authorized operators.

  • Page 11: Training Concept

    Users are able to perform initial and repeated therapies training with the TYROSTATION. Users are not permitted to instruct other persons in the usage of the TYROSTATION. Users are trained by a member of TYROMOTION GmbH or by another trainer delegated by TYROMOTION GmbH.

  • Page 12: Symbols On Tyrostation

    Do not discard with household waste. Applied part, type B Alternating current CE mark Information about the manufacturer of the TYROSTATION, including the manufacturer's full mailing address is displayed next to the factory symbol. Warning symbol: Crushing hazard warning Sitting prohibited! Sitting on or bracing oneself against the device or device parts is prohibited.

  • Page 13: Type Label

    I means the device is activated (top position). O means the device is deactivated (bottom position). Table 1: Symbols on TYROSTATION 1.3.1 Type label The type labels designate the TYROSTATION as a medical product. TYROSTATION Therapy desk Figure 1: Type label TYROSTATION Therapy desk TYROSTATION Therapy stool Figure 2: Type label TYROSTATION Therapy stool EN –...

  • Page 14: Technology

    Protection class I device – protective grounding shock: Electromagnetic Class B device (CISPR 11) The TYROSTATION is suitable for usage in all establishments including compatibility: residential areas and areas that are directly connected to the PUBLIC SUPPLY GRID, which also supplies residential buildings.

  • Page 15: Area Of Application

    Temperature: -20 ... 60 °C Humidity: 20 ... 90 % relative humidity, no dew Maximum load: The maximum load for the TYROSTATION therapy desk is 70 kg. The maximum load for the TYROSTATION therapy stool is 110 kg. Caution: The TYROSTATION may not be used in explosion-prone zones AP and APG according to EN 60601-1/2006.
  • Page 16 Guidelines and MANUFACTURER‘s declaration – ELECTROMAGNETIC EMISSIONS The TYROSTATION is designed for operation in an ELECTROMAGNETIC ENVIRONMENT as indicated below. The customer or user of the TYROSTATION must ensure that it is used in such an environment. ELECTROMAGNETIC Interference emission Agreement ENVIRONMENT –...
  • Page 17 Guidelines and MANUFACTURER‘s declaration – ELECTROMAGNETIC IMMUNITY The TYROSTATION is designed for operation in an ELECTROMAGNETIC ENVIRONMENT as indicated below. The customer or user of the TYROSTATION must ensure that it is used in such an environment. IEC 60601-Test ELECTROMAGNETIC...
  • Page 18 The TYROSTATION is designed for operation in an ELECTROMAGNETIC ENVIRONMENT as indicated below. The customer or user of the TYROSTATION must ensure that it is used in such an environment. Portable and mobile RF communications equipment should be used no closer to any part of the device, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.
  • Page 19 If the measured field strength in the location in which the TYROSTATION is used exceeds the applicable RF compliance level above, the device should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the TYROSTATION.

  • Page 20: The Tyrostation System

    Table 5: Recommended separation distances between portable and mobile RF communications equipment and TYROSTATION 2.2 The TYROSTATION system Figure 3: The TYROSTATION – 1 Figure 4: The TYROSTATION – 2 EN – 20...

  • Page 21: Repair

    Adjustable guide castors Power switch Fuses 2.2.1 Repair Always contact the manufacturer for repairs! 2.2.2 Disposal The TYROSTATION must not be disposed of in the same manner as normal waste, but returned to the company TYROMOTION GmbH. EN – 21...

  • Page 22: Adjustment Options Tyrostation

    2.3 Adjustment options TYROSTATION 2.3.1 Height Adjustment of the Therapy desk The height of the therapy desk can be adjusted by means of the control panel integrated in the table top, which enables an optimum adjustment of the device to the patient’s needs.

  • Page 23: Referencing The Tyrostation Lifting Columns

    The TYROSTATION lifting columns are inclined.  The TYROSTATION lifting columns do not move for no reason. Proceed as follows to perform a reference run of the TYROSTATION lifting columns: Press height adjustment button “down”. TYROSTATION starts reference run. Hold the height adjustment button “down” until the lifting columns are completely retracted and then release the button! Wait for 2-3 seconds.

  • Page 24: Height Adjustment Of The Therapy Stool

    2.4.1 Check list functionality test The functionality checks described here must be performed on a monthly basis. Perform the check even if the TYROSTATION indicates a malfunction (e.g. in case of unusual sounds, elementary damages, etc.). The person responsible for checking the device must be trained in handling and operating TYROSTATION.

  • Page 25: Recurring Checks

    Recurring checks may only be carried out by technically qualified personnel. The device operator must ensure that the intervals for the recurring checks stipulated by him are observed. Usage of the TYROSTATION must stop if the inspection intervals are not observed.

  • Page 26: Preparation / Basics

    TYROSTATION into operation for the first time: Installation of the VESA support on TYROSTATION The VESA support is installed at the rear end of TYROSTATION. Proceed as shown in the following illustrations: Figure 8: Components VESA support...

  • Page 27: Power Supply Tyrostation

    Installation of the PC on the VESA support The PC has been prepared by TYROMOTION for installation on the VESA support. Use the screws provided to fix the PC to the VESA support and proceed as shown in the following illustrations: Figure 12: Installation of the PC on the VESA support 3.1.2 Power supply TYROSTATION...

  • Page 28: Device Setup And Movement

    TYROMOTION GmbH to the power supply of the TYROSTATION. 3.2 Device setup and movement In order for you to use TYROSTATION as effectively as possible, it is necessary to keep enough distance to the walls or other equipment on both sides of TYROSTATION. The lateral distance to the next wall or the next equipment should be at least 50 cm.

  • Page 29: Start-Up

     Observe the warning "Sitting prohibited", which is attached to the device 3.3 Start-up After TYROSTATION has been set up according to the instructions of chapter 3.1, it can be started by turning on the main power switch. By doing this, all electric components are supplied with electricity.

  • Page 30: Storage On The Tyrostation

    Fuses may only be tested and replaced by technical personnel. Please proceed as shown in the following illustrations: Figure 14: Changing the fuses on the back side of the TYROSTATION - 1 Figure 15: Changing the fuses on the back side of the TYROSTATION - 2 The electronic distribution panel at the rear of TYROSTATION can only be accessed using tools.
  • Page 31 Figure 16: Accommodation of the PABLO® - and TYMO® system Place the therapy devices on TYROSTATION as shown in the following illustrations: Figure 17: Storage of the PABLO® Figure 18: Storage of the TYMO® system system Figure 19: Storage of the TYMO® Rolling Elements...

  • Page 32: Clinical Application

    Since TYROSTATION is accessory equipment for medical products which does not have any intended medical purpose in itself, there are no specific contraindications for the use of the TYROSTATION. However, the contraindications for the devices that are used together with TYROSTATION always apply.
  • Page 33 The hygienic instructions stated in this chapter must be strictly observed. Please also observe the cleaning instructions for the devices used with the TYROSTATION. EN – 33...

  • Page 34: Faq-Frequently Asked-Questions

    FAQ-Frequently Asked-Questions Why does the height adjustment not work? Check that the power cord is plugged in. Check that the device has been put into operation by means of the mains switch on the rear panel and that all electrical components are supplied with power (see chapter 3.3) Perform a reference run of the lifting columns (see chapter 2.3.2) if the height adjustment still does not work.
