Summary of Contents for bf1 systems F1-100-1451-003

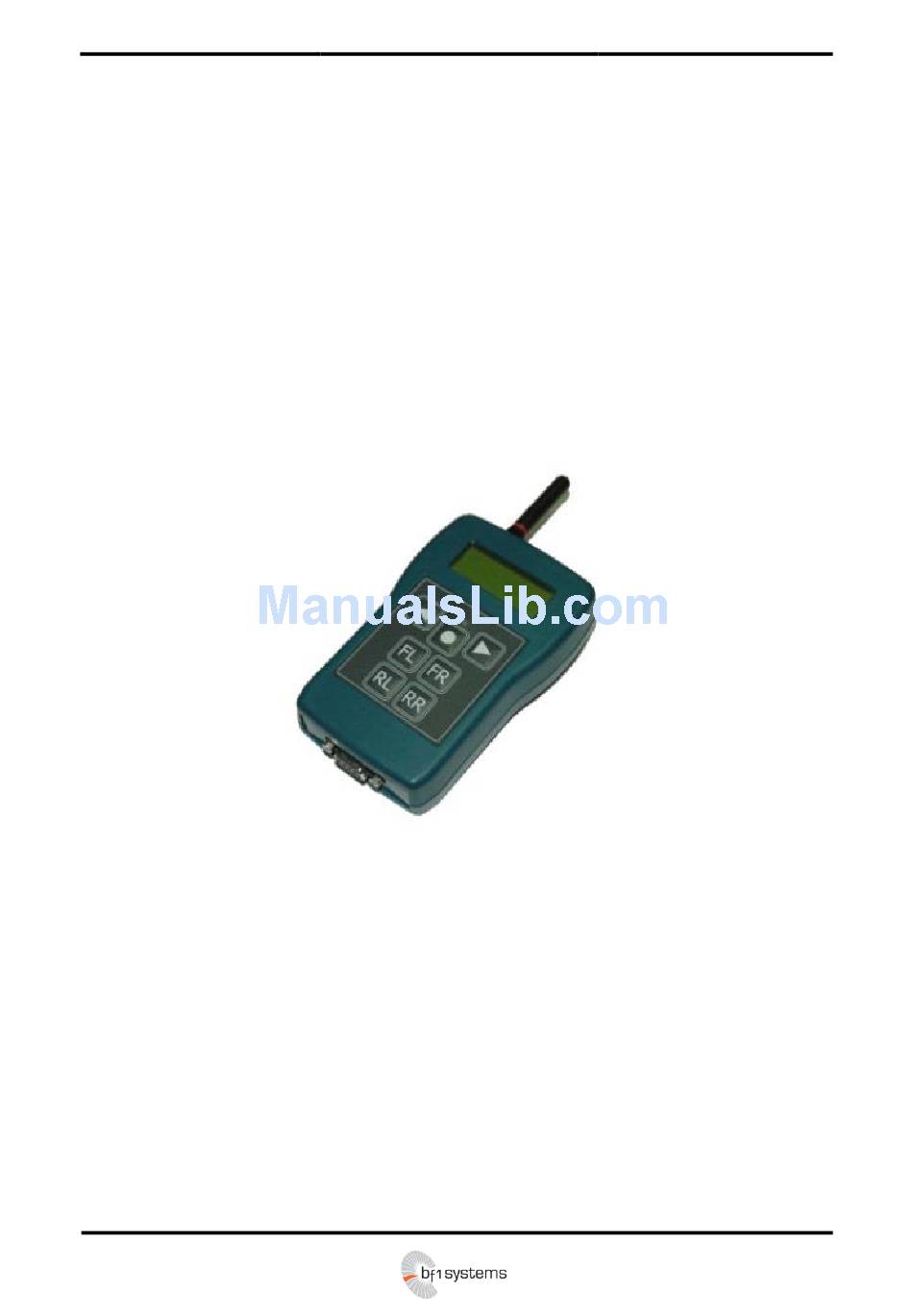

- Page 1 1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 Page 1 of 32 bf1systems Tyre Pressure Monitoring System – Mini Analyser User Manual F1-100-1451-003 – 433MHz TPMS Mini Analyser, Wireless Version – 1.06 RD096 071112...
-
Page 2: Modifications
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 2 of 32 Wireless Mini Analyser User Manual Revision History 1 Modifications Date Modifications Author Version Modified Approved Sheets Date Signed 03/07/2009 Document Creation 1_01 31/07/09 Serial port configuration added Detailed description of ‘last’... -
Page 3: Table Of Contents
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 3 of 32 Modifications ..................................2 Safety Advice ..................................4 MW6288 9V mains charger ............................4 EMSA 5W USB Series Power Supply ......................... 5 Wireless mini analyser ..............................6 Inventory .................................... -
Page 4: Safety Advice
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 Page 4 of 32 2 Safety Advice 2.1 MW6288 9V mains charger WARNING! Risk of electric shock This product contains no serviceable parts and must not be opened. ... -
Page 5: Emsa 5W Usb Series Power Supply
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 5 of 32 2.2 EMSA 5W USB Series Power Supply WARNING! Risk of electric shock This product contains no serviceable parts and must not be opened. This product must not be used outside. -
Page 6: Wireless Mini Analyser
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 6 of 32 2.3 Wireless mini analyser CAUTION! Do not use the wireless mini analyser if there is any damage to the battery terminal or wire. Only use the power cables that have been supplied with the wireless mini analyser. -
Page 7: Inventory
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 7 of 32 3 Inventory The system will arrive with the following items: Description Wireless Mini Analyser 9V Battery Snap to 2.5mm Jack Charging Cable 280 mAh Ni-MH PP3 Rechargeable Battery Detachable Antenna Carry Case Carrying Strap... -
Page 8: Battery Charger
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 8 of 32 5.1 Battery Charger A 230V AC - 9/9.8 V DC Battery Charger is supplied with the Wireless Mini Analyser. The unit can charge 2 rechargeable 9V batteries and includes the following features: LED status display, micro controlling trickle charge mode, a discharge function, and delta V detection Intended use: This product is intended for use only in dry interior rooms. -
Page 9: Usb Mains Power Supply
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 9 of 32 5.2 USB mains power supply The USB mains power supply is supplied with the purpose of supplying power directly to the wireless modules that are used with the mini analyser. The power supply converts 230V AC mains voltage into 5V DC at 1.0A The power supply should only be used in conjunction with the USB cables that have been supplied with the mini analyser. -
Page 10: Wireless Mini Analyser
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 10 of 32 5.3 Wireless Mini Analyser The Wireless Mini Analyser is fitted with a rechargeable battery in order to maximise the performance and versatility of the device. A jack socket on the side of the unit allows it to be charged using the mains charger provided. Pin 9 of the 9-way D-type fitted to the Wireless Mini Analyser has been wired to provide power for the Analyser Module unit when in use. -
Page 11: Mini Analyser Battery
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 11 of 32 5.4 Mini Analyser battery To remove the battery compartment lid The battery and antenna can be found stored Press the release clip and lift away. within the battery compartment. -
Page 12: Attaching The Antenna
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 12 of 32 5.5 Attaching the Antenna The wireless mini analyser is supplied with a detachable antenna which can be found and stored in the battery compartment. Attach the antenna simply screw it clockwise onto the antenna connector located on top of the mini analyser. The antenna should only be finger tight –... -
Page 13: Wireless Modules
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 13 of 32 5.6 Wireless Modules 5.6.1 Wireless Module The Wireless Module is fitted with a 9-way D-type, which connects directly to the 9-way D-type fitted to the bottom of the Mini Analyser. -
Page 14: Wireless Pc Module
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 14 of 32 5.6.2 Wireless PC Module The Wireless PC Module is fitted with a 9-way D-type, which can be connected directly to the 9-way D-type serial connector on a PC. A straight through serial extension lead should be used to remotely connect the Wireless PC module. -
Page 15: Status Information
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 15 of 32 5.6.3 Status Information Both the Wireless PC Module and Wireless Analyser Module have 2 LEDs that are used for indicating the status to the user. The red LED pertains to power while the orange LED relates to wireless link status. 5.6.3.1 Power LED The power LED has three modes of operation: Continuously on... -
Page 16: Operation
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 16 of 32 At power on the co-ordinator node (Wireless PC Module) enters pairing mode (fast flashing Link LED). In this mode it listens for any programmed device that is in range. When an end device node (Wireless Analyser Module) is powered on it also enters pairing mode (fast flashing Link LED). - Page 17 1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 17 of 32 As each wheel is learned, the serial number of the sensor that has been assigned to the wheel will be shown on the Mini Analyser display. Unassigned locations will display serial number ‘0’. ▲...
-
Page 18: Data Transfer
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 18 of 32 6.2 Data Transfer Transfer of the data collected by the Wireless Mini Analyser is achieved via the wireless serial link provided by the Wireless PC Module and Wireless Analyser Module. The wireless modules provide a transparent 19200-baud serial link between the host PC and the Mini Analyser. -
Page 19: Setclear' Command
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 19 of 32 On receipt of the ‘ack’ message the Wireless Mini Analyser will return to the USER1>, ready for the next host command. USER1> last Pos Chan Serial No Pact Tact RSSI RBL Mode RLRot Timestamp... -
Page 20: Setup Menu
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 20 of 32 6.2.4 ‘gencfg’ Command By default the Wireless Mini Analyser is configured to auto detect and decode RF datagrams from Ge1, Gen2 and Gen 3 sensors. In some situations the user may wish to configure the unit to receive only sensors of a specific type. This can be achieved via the ‘gencfg’... -
Page 21: Power Settings
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 21 of 32 6.3.1 Power Settings The <Power Settings> selection page allows the user to configure the automatic power controls for the Mini Analyser. The <Power Settings> selection page is entered by pressing the power button at the <Setup – Power Settings>... -
Page 22: Beep / Led 2
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 22 of 32 6.3.3 Beep / LED 2 The <Beep / LED 2> selection page allows the user to configure the indicators for LF transmissions by the Mini Analyser. -
Page 23: System Info
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 23 of 32 6.3.4 System Info The System Info pages provide details regarding the Mini Analyser hardware and software. The <System Info> display pages are entered by pressing the power button at the <Setup – System Info> page. Setup System Info Ok Down... -
Page 24: Channel Config
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 24 of 32 Channel Config The <Channel Config> selection page allows the user to select the sensor types that the Mini Analyser is capable of decoding. The <Channel Config> selection page is entered by pressing the power button at the <Setup – Channel Config>... -
Page 25: Wireless Analyser Module
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 25 of 32 7.1 Wireless Analyser Module The cParameters in the Wireless Analyser Module that may be updated by the user are: Network ID [PAN_ID] Co-ordinator MAC address [C_MAC_Addr_1] Link activity timeout [Link_timeout]... -
Page 26: Link_Timeout
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 26 of 32 7.3.3 Link_timeout The user command for changing the link timeout held within the cParameter table shall have to following format: Link_timeout <ddddd> <ddddd> – 16 bit decimal value for Link_timeout setting, expressed in seconds eg: Link_timeout 15 Result: Link_timeout is set to 15 seconds Typing the Link_timeout command with no argument shall report the current Link_timeout setting. - Page 27 1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 27 of 32 The Mini Analyser communication speed is now correct to function with the bf1systems Analyser Bootloader software. Close the terminal emulator and start the bootloader software. The screenshot below shows the bootloader software.
-
Page 28: Wireless Analyser Module Specifications
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 28 of 32 9 Wireless Analyser Module Specifications 9.1 General Parameter Units Conditions Power supplied to module via Pin 9 on the 9-Way D Supply Voltage Connector or by the Mini USB connector Supply Current 9.2 Communications Parameter... - Page 29 1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 29 of 32 Important Notice User information according to FCC15.21 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
-
Page 30: Wireless Pc Analyser Module Specifications
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 30 of 32 Wireless PC Analyser Module Specifications 9.4 General Parameter Units Conditions Power supplied to module via Pin 9 on the 9-Way D Supply Voltage Connector or by the Mini USB connector Supply Current 9.5 Communications The implemented IEEE 802.15.4 based network operates in the 2400 MHz (2.4GHz) radio frequency band. -
Page 31: Environmental
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 31 of 32 Parameter Units Conditions Data Rate kbaud 19.2 Communications Range Transmit Power Level Receiver Sensitivity Protocol 2.4GHz IEEE802.15.4 Compatible 9.6 Environmental Parameter Units Conditions Operating Temperature °C Range Lead-Free and RoHS compliant... -
Page 32: Charger Mw 9V Mw6288Gs
1_04 Wireless Mini Analyser User Manual Wireless Mini Analyser User Manual V1_06 32 of 32 10 Charger MW 9V MW6288GS 10.1 Specifications Input Output Output Output Protection/IP Class Tech Fitting size (VAC) (VDC) (mA) Ni-Cd 230 @ 50Hz 2x 9.8 1.4 Max II / IP20 2x 9V Block...
