Summary of Contents for digmoda DDC552

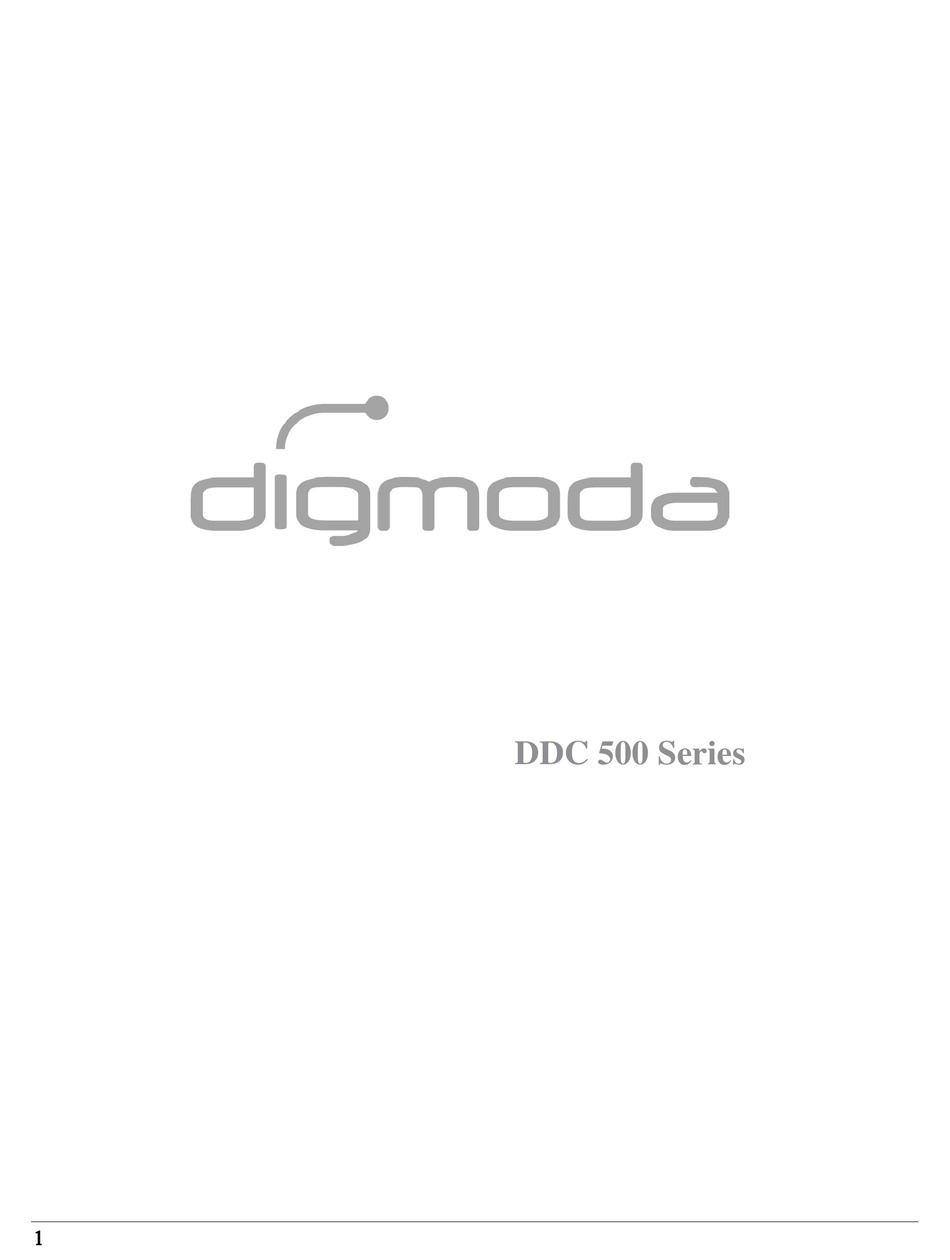

- Page 1 DDC 500 Series ...
- Page 2 Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include the following: Power supply/Power cord/Grounding Use only floated test equipment. Oscilloscopes, PCs, signal generators, voltmeters, etc. must be connected through a three-to-two-prong adapter to avoid ground loops and other conditions that may damage the amplifier.
- Page 3 Operation Your DDC 500 Series Amplifier is factory programmed to 0dB Output Gain; please take your precautions before applying any audio signal to the input. Read the Amplifier specifications (page 22) before connecting loudspeaker loads. Do not operate the LF, MF and/or HF amplifier sections (depending on the model) to Max Power when all the channels are set to flat response without crossover filters.
- Page 4 Congratulations and thank you for your purchase of the Digmoda Professional DDC 500 Series Amplifier. We’re sure it will meet your demands and exceed your expectations. Please take time to look through this manual carefully. It’s packed with important information on how to get the most from this amazing product.
- Page 5 This manual outlines a series of steps to operate your DDC 500 Series Amplifier in the right way and avoid malfunctions, errors or even damage to the unit. Please follow the steps in order: Get familiar with the unit parts and connectors Download and install the software Follow the connection diagrams Operate the unit according to instructions...
-
Page 6: Table Of Contents
III. 520 Specifications………….. Step 3...…………………………………… Step 4...………………………….…….… IV. Mechanical Dimensions…… V. Computer Requirements….… Step 5..………………………….………… VI. Contact Info..………….…… Connection Diagrams DDC552 Driver Wiring & Software Routing ………………………………..… DDC550 Driver Wiring & Software Routing ………………………………..… DDC520 Driver Wiring & Software Routing ………………………………..…... -
Page 7: The Connectors & Indicators
The Connectors & Indicators Back Panel Front Panel ... -
Page 8: Connectors & Indicators Description
Connectors & Indicators Description Signal Throughput Connector AC Power In Receptacle This connector allows a pass through of the Connect the provided AC cord to the line audio signal to other devices. One voltage (120V or 230V depending on the application might be a daisy-chain setup product model) here. -
Page 9: Connectors Detail & Pin-Out
Connectors Detail & Pin-out [552 MODEL] Pin Out 3 HF Module Pos + 6 HF Module Neg – 2 MF Module Pos + 5 MF Module Neg – 1 LF Module Pos + 4 LF Module Neg – [550 MODEL] Pin Out 3 N/A 6 N/A... -
Page 10: Software Installation
D-Pro Software has been developed. To download and install the D-Pro Software follow these next steps. Step 1 Go to the Digmoda web site: http://www.kscind.com/digmoda/ Step 2 Click on the button located in the lower right corner. -
Page 11: Connection Diagrams
HP, LP, BP, Parametric EQ, Bass Shelf, Treble Shelf as well as other DSP functions like Compression, Delay and Phase Inversion. By default the Configuration for the DDC552 has been programmed with the logic channel routing and filtering represented in this diagram. -
Page 12: Software Routing
Amplifier Software Routing ach amplifier module inside the DDC552 is routed to an individual logic channel. Each of these channels is a dedicated processing unit responsible for achieving a very specific sound characteristic by means of a collection of powerful filters which include: HP, LP, BP, Parametric EQ, Bass Shelf, Treble Shelf as well as other DSP functions like Compression, Delay and Phase Inversion. -
Page 13: Software Routing
Amplifier Software Routing ach amplifier module inside the DDC552 is routed to an individual logic channel. Each of these channels is a dedicated processing unit responsible for achieving a very specific sound characteristic by means of a collection of powerful filters which include: HP, LP, BP, Parametric EQ, Bass Shelf, Treble Shelf as well as other DSP functions like Compression, Delay and Phase Inversion. -
Page 14: System Connection
System Connection Connect the DDC 500 Series Amplifier according to the drawing shown below. Once you connect the unit to the computer and supply AC Power, the computer will find the new hardware. ... -
Page 15: Basic Operation
Basic Operation PERFORMANCE TESTS Once the unit is connected as indicated on the previous page, you can test the operation and performance of your DDC 500 Series Amplifier in its factory configuration scheme. Acoustic Tests o If you want to perform acoustic tests make sure your system is wired to the drivers according to the diagram for your specific model (check Connection Diagram section on page 16). - Page 16 Interfacing with the computer A new window will show up. Click on the button labeled SCAN. The program will scan for an available COM Port and once it finds it, it will use it to communicate your DDC Amplifier with the PC. As soon as the program finds and assigns a Communications Port you will see the word SUCCESSFUL appearing in the scan status box.
-
Page 17: A Brief Look At The Software Program
A BRIEF LOOK AT THE SOFTWARE PROGRAM The only goal of this section is to show you how to access the DSP functions and modify parameters in real time so you can hear and/or see the difference instantaneously. To fully understand and learn all about the software functions please refer to the D-Pro Windows Software User’s Manual. - Page 18 A brief look at the software program A warning will show up: “This action will write over your current DSP configuration. Do you wish to continue?” You can click on YES due to the fact that you’re running the software for the 1 time and you don’t have any user configuration files to lose.
- Page 19 DSP Functions Mid Range Driver Routed to channel 4 High Freq. Driver Routed to channel 6 DSP chip #2 is being used Example of a Block Diagram Screen [DDC552 Amplifier Model] ...
- Page 20 A brief look at the software program Click on any of the blocks to access its respective set of controls and graphical representations. You can modify them as you wish, but in order to apply your changes in real time (for quick checking) you will need to enable the LiveUpdate.
-
Page 21: Appendices
Appendices I. DDC552 Specifications DDC552 Audio Specifications Parameter Conditions Unit f = 40Hz, Po = 1W 0.009 0.011 THD+N in 4Ω f = 500Hz, Po = 1W 0.025 0.031 (AES17 filter) f = 1KHz, Po = 1W 0.019 0.024 f = 40Hz, Po = 1W 0.007... -
Page 22: Power Specifications
1. DDC552 Specifications (continued) Low channel DC Output Offset in 4Ω (DC Mid channel High channel mVrms Low channel DC Output Offset in 8Ω (DC Mid channel High channel Input Clipping (Vin f = 1KHz clip Damping Factor (D f = 100Hz, R = 8Ω... -
Page 23: 550 Specifications
II. DDC550 Specifications DDC550 Audio Specifications Parameter Conditions Unit f = 40Hz, Po = 1W 0.009 0.011 THD+N in 4Ω (AES17 filter) f = 500Hz, Po = 1W 0.025 0.031 f = 40Hz, Po = 1W 0.007 0.009 THD+N in 8Ω (AES17 filter) f = 500Hz, Po = 1W 0.016... - Page 24 II. DDC550 Specifications (continued) -Input Connector: XLR female -Power Switch: Neutrik, PowerCon -Thru-put Connector: XLR Male -Output Circuitry: Class-D amps with analog feedback -Power Indicator: Green LED -Speaker output connector: MOLEX 03-09-2062 (On the back) -Fault Indicator: Red LED -DSP Control: USB ...
-
Page 25: 520 Specifications
III. DDC520 Specifications DDC520 Audio Specifications Parameter Conditions Unit f = 40Hz, Po = 1W 0.009 0.011 THD+N in 4Ω (AES17 filter) f = 1KHz, Po = 1W 0.019 0.024 f = 40Hz, Po = 1W 0.007 0.009 THD+N in 8Ω (AES17 filter) f = 1KHz, Po = 1W 0.013... - Page 26 III. DDC520 Specifications (continued) -Input Connector: XLR female -Power Switch: Neutrik, PowerCon -Thru-put Connector: XLR Male -Output Circuitry: Class-D amps with analog feedback -Power Indicator: Green LED -Speaker output connector: MOLEX 03-09-2062 (On the back) -Fault Indicator: Red LED -DSP Control: USB ...
-
Page 27: Mechanical Dimensions
IV. DDC5xxx Series Mechanical Dimensions ... -
Page 28: Computer Requirements
Chula Vista, CA 91914 Telephone: (619) 671-0110 www.kscind.com/digmoda/ D-Pro™, Digmoda® and KSC™ are trademarks of KSC Industries, Inc. All other trademarks and registered trademarks are the property of their respective license holders. Design ©2008 KSC Industries, Inc. All rights reserved.
