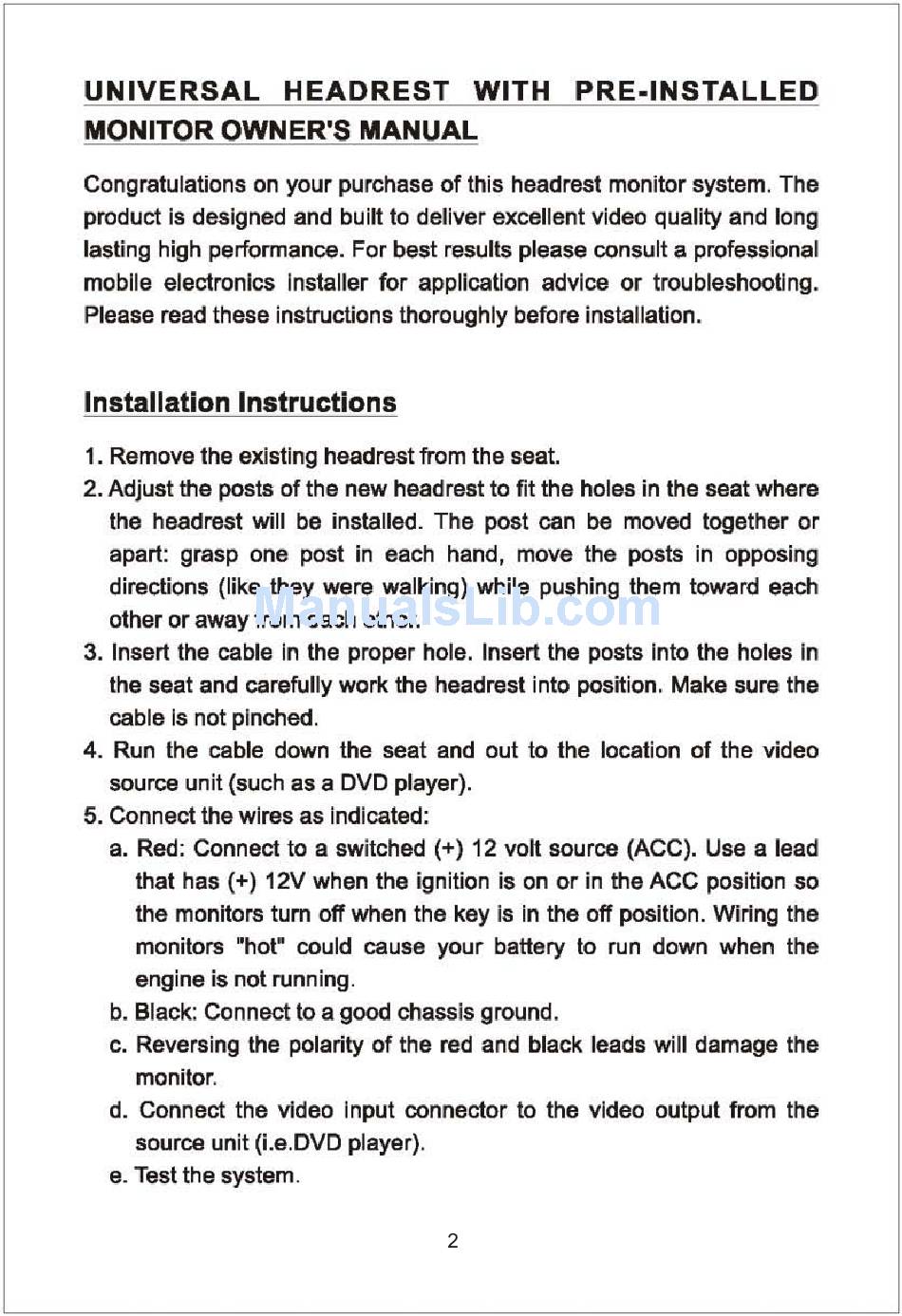

UNIVERSAL HEADREST WITH PRE-INSTALLED
MONITOR OWNER'S MANUAL
Congratulations on your purchase of this headrest monitor system. The
product is designed and built to deliver excellent video quality and long
lasting high performance. For best results please consult a professional
mobile electronics installer for application advice or troubleshooting.
Please read these instructions thoroughly before installation.
Installation Instructions
1. Remove the existing headrest from the seat.
2. Adjust the posts of the new headrest to fit the holes in the seat where
the headrest will be installed. The post can be moved together or
apart: grasp one post in each hand, move the posts in opposing
directions (like they were walking) while pushing them toward each
other or away from each other.
3. Insert the cable in the proper hole. Insert the posts into the holes in
the seat and carefully work the headrest into position. Make sure the
cable is not pinched.
4. Run the cable down the seat and out to the location of the video
source unit (such as a DVD player).
5. Connect the wires as indicated:
a. Red: Connect to a switched (+) 12 volt source (ACC). Use a lead
that has (+) 12V when the ignition is on or in the ACC position so
the monitors turn off when the key is in the off position. Wiring the
monitors "hot" could cause your battery to run down when the
engine is not running.
b. Black: Connect to a good chassis ground.
c. Reversing the polarity of the red and black leads will damage the
monitor.
d. Connect the video input connector to the video output from the
source unit (Le.DVD player).
e. Test the system.
