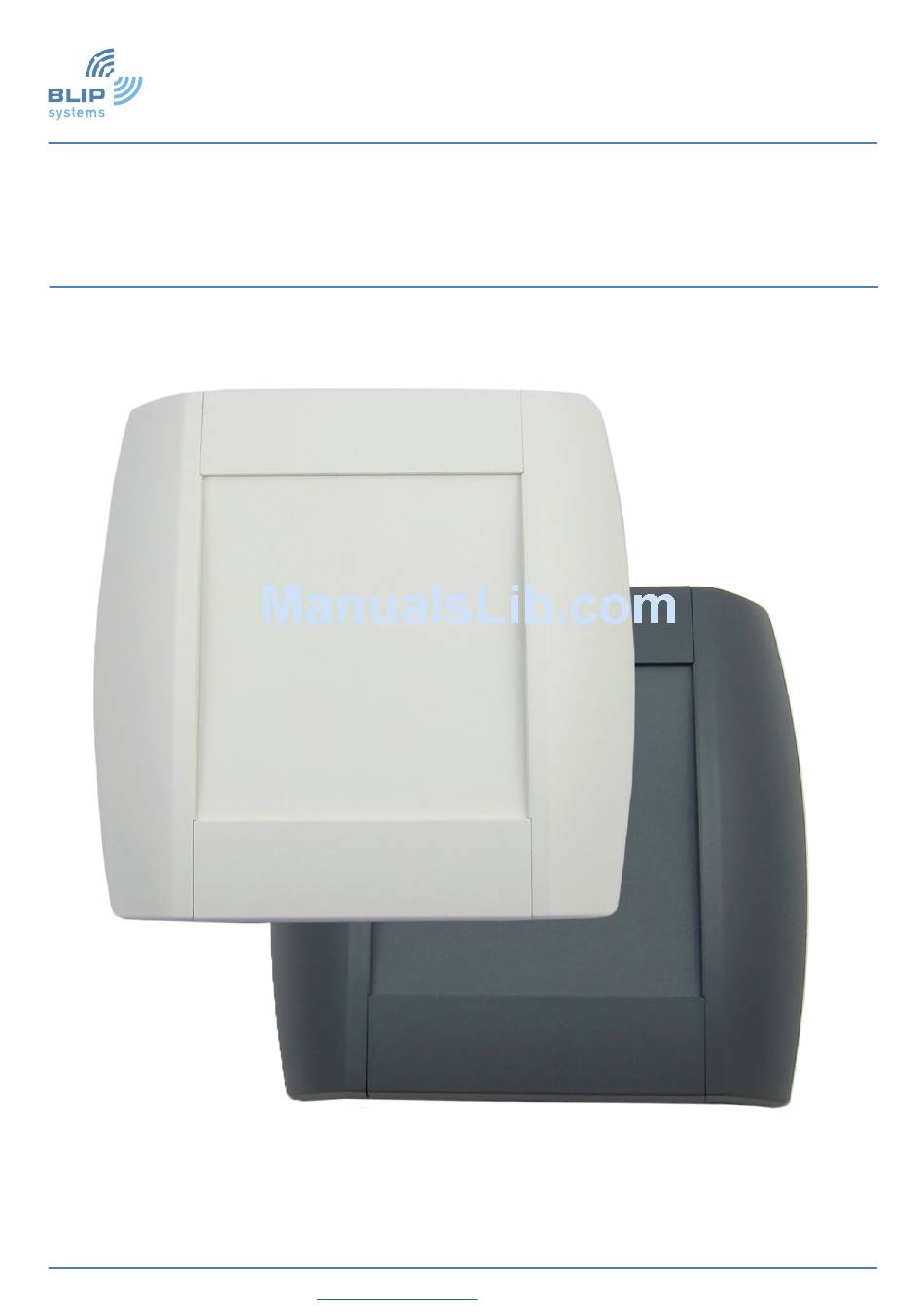

- Page 1 08-01-2017 Installation manual BlipTrack BNL2i-WF v1.1 ENGLISH - INDOOR SENSOR INSTALLATION MANUAL – BLN2i-WF BLIP Systems A/S · support@blipsystems.com · +45 98847202 · www.blipsystems.com...
-
Page 2: Table Of Contents
Storage of BlipTrack BNL2iWF: There are no special storage concerns to be observed for this unit This and other handling manuals (preparation, installation, troubleshooting, storage, maintenance and other general information) can be found on BLIP Systems web-page: http://www.blipsystems.com/download/ Page 2 of 11 BLIP Systems A/S ·... -
Page 3: Step 1 - Preparations
3. Check the unit has the correct serial number as agreed with BLIP Systems. 4. Record the MAC address of the unit for the configuration stage. 5. The unit has been fully tested at BLIP Systems prior to shipment so the unit can be installed “out-of-the-box” at the measurement point without any further preparations. -
Page 4: Step 2 - Remove Side Panels And Top Lid For Mounting Access
• Remove the lid by unscrewing the four screws. (Lift the lid carefully to avoid damaging the green antennas) Small wing Four screws Page 4 of 11 BLIP Systems A/S · support@blipsystems.com · +45 98847202 · www.blipsystems.com... -
Page 5: Step 3 - Create Cable Access
4. Mount the L2i module again by pressing it firmly onto the four taps. 5. Reattach the USB cable. Tabs for the L2i module USB Cable Entry for LAN Cable Page 5 of 11 BLIP Systems A/S · support@blipsystems.com · +45 98847202 · www.blipsystems.com... -
Page 6: Step 4 - Mount The Unit Safely At The Measuring Point
The unit shall be placed 3-10 meters above ground level. • When mounting the unit it must be placed at least 1 meter apart from any other radio based equipment. Location for drilling mounting holes Page 6 of 11 BLIP Systems A/S · support@blipsystems.com · +45 98847202 · www.blipsystems.com... -
Page 7: Step 5 - Connect The Unit To The Poe Lan Network
2. Attach the cable in the LAN slot of the L2i module. 3. As soon as the active PoE LAN cable is attached the unit will be powered and begin to operate LAN Cable Plug Page 7 of 11 BLIP Systems A/S · support@blipsystems.com · +45 98847202 · www.blipsystems.com... -
Page 8: Step 6 - Check The Power-On Sequence
So at this point check that the outer green LED is on when attaching the PoE LAN cable and that both LED’s will start blinking after the wake up flash. Page 8 of 11 BLIP Systems A/S · support@blipsystems.com · +45 98847202 · www.blipsystems.com... -
Page 9: Step 7 - Fasten The Lid And Side Panels Of The Unit
1. Fasten the lid firmly using the four screws. 2. Click the two side panels in place to close the unit. (Be mindful of the green antennas) Four screws Page 9 of 11 BLIP Systems A/S · support@blipsystems.com · +45 98847202 · www.blipsystems.com... -
Page 10: Step 8 - Await Unit Configuration
Check that the MAC address of the unit (recorded in “Preparations”stage) can be seen from the local LAN server. Blip Support can now provide the needed BlipServer configuration remotely. 1. Contact BLIP Support when the unit is ready for configuration providing the serial number. Blip Support can be reached from support@blipsystems.com... -
Page 11: Step 9 - Complete The Installation
1. Take a photo of the mounted unit showing the serial number. 2. Take a photo of the mounted unit in it’s surroundings. The photos may ease the maintenance phase. An installation report may be forwarded to BLIP Systems: support@blipsystems.com The sensor must be placed at least 1 meter from other radio based devices.
