Summary of Contents for Sherlotronics 3.2AMP

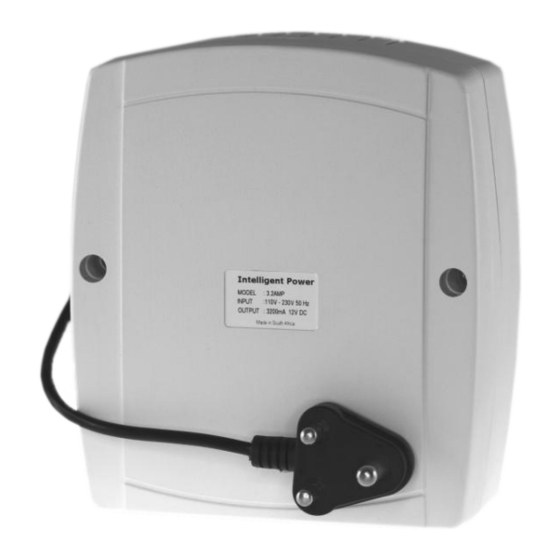

- Page 1 English Installation Instructions - For Service Persons Only Model No: 3.2AMP 12V 3.2A Power-Supply, Battery Charger with Low battery Cutoff. 12VDC 3 . 2 AMP...
-
Page 2: Product Description
The device is intended to Charge Lead Acid batteries with a max capacity ampere hour rating of 7A/H. A bigger battery may result in the unit not operating correctly. WARNING: THE SOCKET OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE For more info visit our web site: www.sherlotronics.com... -
Page 3: Wiring Diagram
When AC is restored goes 0V (Negative) 10A/125VAC MODEL: 28VDC 3.2AMP +Positive 13.8V - 14.2V DC (Processor controlled charge rate ) -Negative 0V DC The Battery Charge output is Current limited to approx 1A and is suitable for batteries no bigger than 7A/H Note: Before connecting the battery, plug the unit into mains. - Page 4 Wiring up a 3.2AMP Power-supply to a Typical Alarm panel & Radio Radio Alarm Panel BATTERY 12V 7A/H Approvals: This product is approved for use in Residential, commercial and Light Industrial Environment and Complies with the essential protection requirements of the R&TTE Directive 1999/EC on the approximation of the laws of the Member states..
