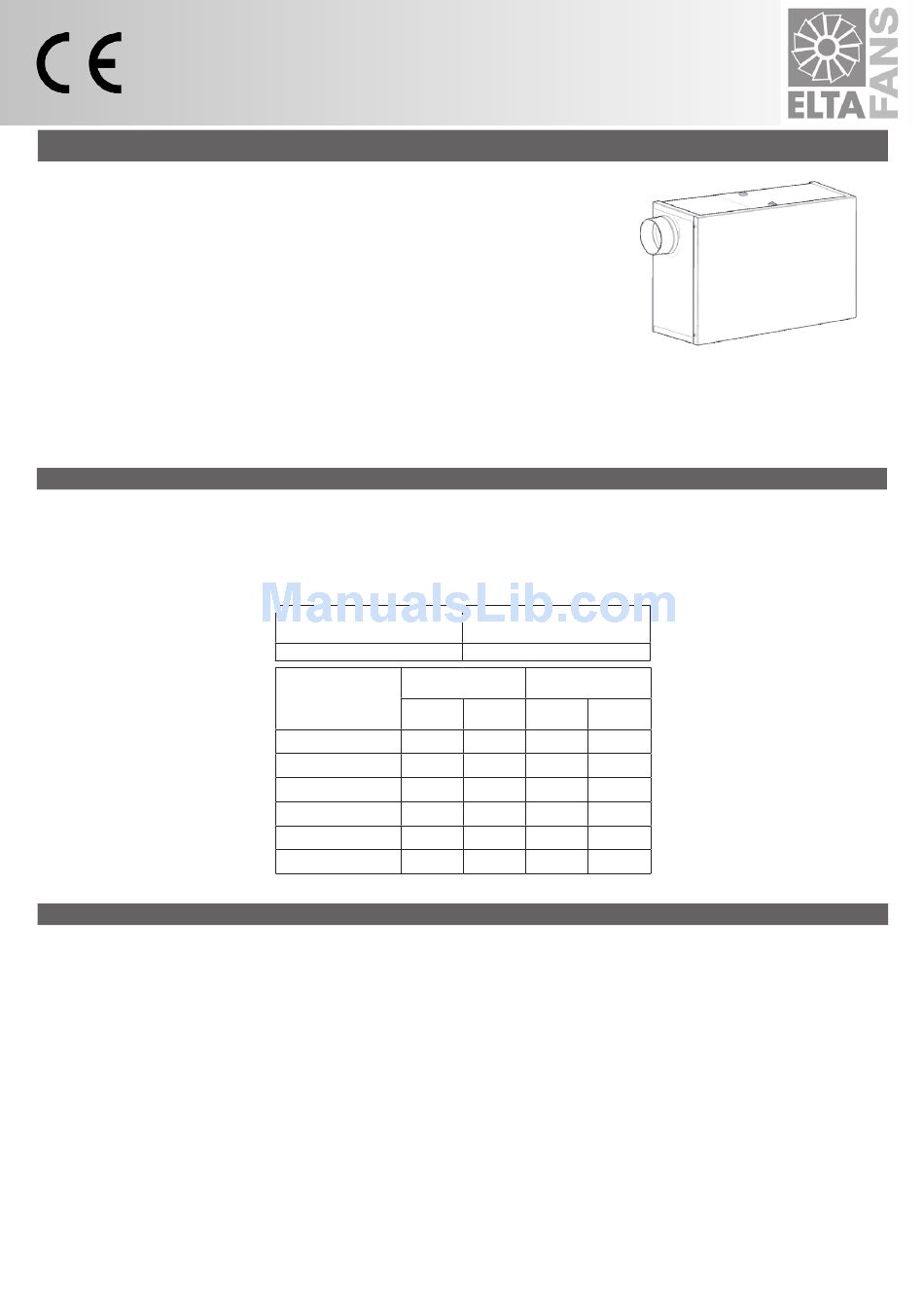

Installation manual
SANO PIV WALL Positive input ventilation unit
Introduction
The Elta SANO PIV WALL is a positive input ventilation unit suitable for installation on a wall for
dwellings without a loft space. It continuously supplies fresh air through a discharge diffuser, that
should be situated in the central hallway or landing. The unit has multiple options for the inlet spigot;
on both sides and the back of the unit allowing multiple installation options. The unit can also be
configured to discharge air from the left or right hand side.
Please read this manual carefully before using the product and keep it in a safe place for reference.
This product was constructed up to standard and in compliance with regulations relating to electrical equipment and must be installed by technically
qualified personnel in accordance with all regulatory requirements. The manufacturer assumes no responsibility for damage to persons or property
resulting from failure to observe the instructions contained in this booklet.
TECHNICAL SPECIFICATIONS
• Outer fan casing manufactured from powder coated galvanised sheet steel providing a lightweight construction.
• An ultra-quiet EC motor/fan assembly for energy saving, mounted on ball bearings that guarantee a longer product life and is suitable for cold
climates.
• G2 filter fitted as standard with large surface area to provide long filter life and efficient filtration of incoming air.
• All fans are individually tested before leaving the factory and are designed and manufactured to procedures defined in BS EN ISO 9001:2008.
• Power Supply 230V – 50/60Hz.
PRECAUTIONS FOR INSTALLATION, USE AND MAINTENANCE
• The device should not be used for applications other than those specified in this manual.
• After removing the product from its packaging, verify its condition. In case of doubt, contact a qualified technician. Do not leave packaging within
the reach of small children or people with disabilities.
• Do not touch the appliance with wet or damp hands/feet.
• The device is not intended for use by persons (including children) with reduced physical, sensory or mental capacities or those with a lack of
experience and knowledge, unless they have been given supervision or instruction concerning use of the device from a person responsible for
their safety.
• Children should be supervised to ensure that they do not play with the device.
• WARNING: In order to avoid overheating, do not cover/close the air exit.
• Do not use the product in the presence of flammable vapours, such as alcohol, insecticides, gasoline, etc.
• If any abnormalities in operation are detected, disconnect the device from the mains supply and contact a qualified technician immediately. Use
original spare parts only for repairs.
• The electrical system to which the device is connected must comply with applicable regulations.
• Before connecting the product to the power supply or the power outlet, ensure that:
- The data plate (voltage and frequency) correspond to those of the electrical mains.
- The electrical power supply/socket is adequate for maximum device power. If not, contact a qualified technician.
• Operating temperature: 0°C up to +40°C.
• Do not leave the device exposed to atmospheric agents (rain, sun, snow, etc.).
Power
W max
28
Inlet grille
(5m duct 2x bends)
Unit setting
Flow Rate
1 13
2 17
3 21
4 25
5 29
6 33
The power consumption shown is Normal mode.
Sound pressure
dB(A) @3m
27
Outlet grille
Watts Flow Rate Watts
3.7 14 4.5
4.8 17 5.2
6.4 21 6.9
9.2 25 9.3
11.1 29 12.7
16.8 34 16.8
Fig. 1
