Summary of Contents for R2TECK DVL-2

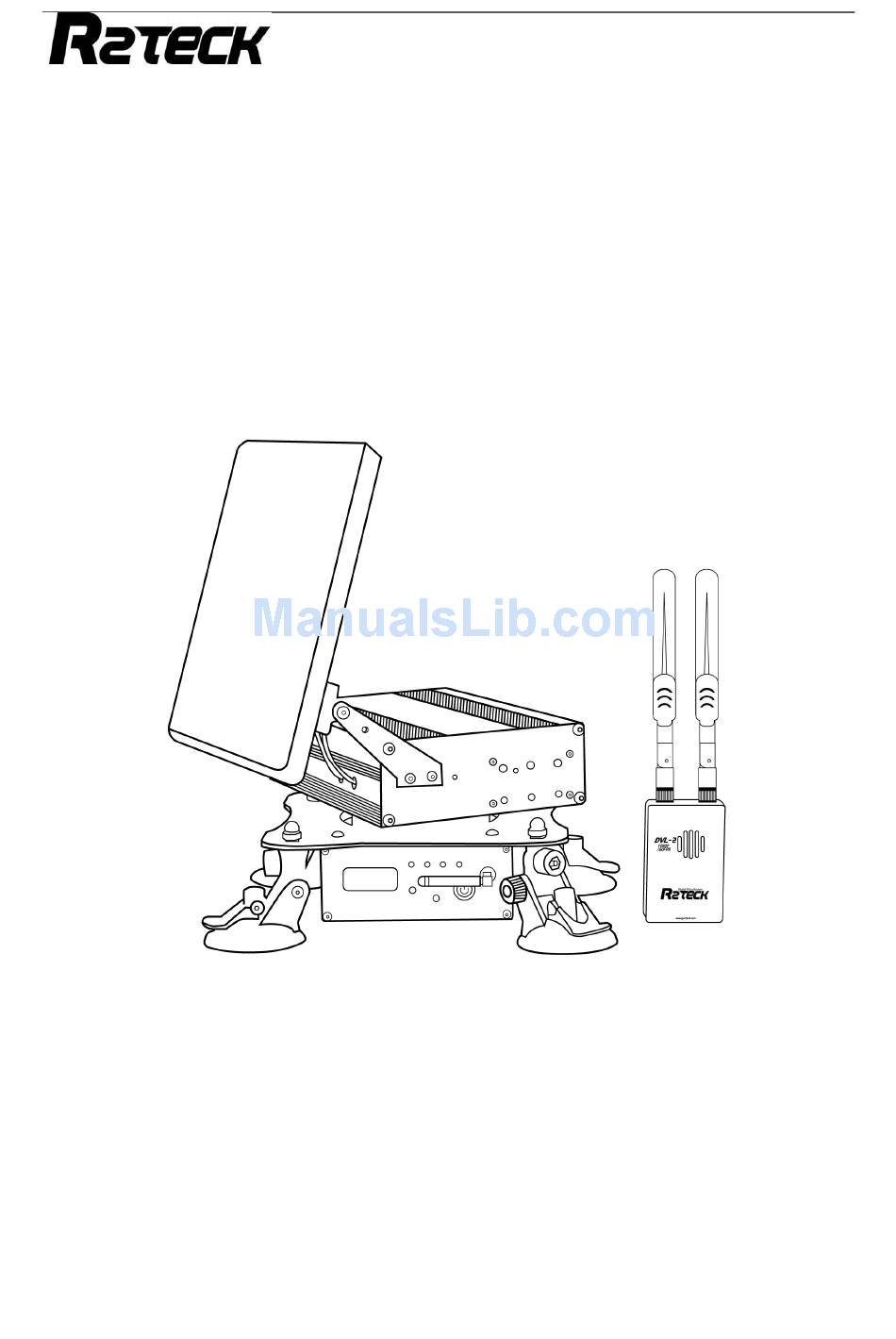

- Page 1 Digital Video Transmission System DVL-2 USER MANUAL...
-
Page 2: Table Of Contents
Wuxi R2TECK Co.,Ltd Content 1. EASY WAY TO START THE DEVICE......................1 2. SPECIFICATION.............................. 3 3 INTRODUCTION..............................4 3.1 Disclaimer..............................4 3.2 Profile............................... 4 3.3 Intended usage............................4 3.4 Caution..............................4 4. PRODUCT OVERVIEW...........................6 4.1 Brief introduction.............................6 4.2 Standard spec............................6 5. PORT DEFINITION............................8 5.1 Transmitter port............................8... -
Page 3: Easy Way To Start The Device
1. Easy way to start the device 1.1 Operating steps and instructions 1.1.1 OSD module Install GPS module. Install voltage monitoring cable. Install OSD Data output cable. Install Mavlink data cable. (optional, if you do not need, just go to next step.) ... - Page 4 Wait receiver MOBILE light turn off. Repeat the above 4 steps. IOS App installation: In App store, search the key word “r2teck” and download. Android installation: In 360 mobile assistant, search the key word “r2teck” and download. In Google play, search the key word “r2teck” and download.
-
Page 5: Specification
1.1.3.1 2. Specification Here list the detailed specification about DVL2 2.1.1 Function specification Communication distance (outdoor, 800mw ground distance ≥ 6000m no obstruction) Output Power (EIRP) 25mw-800mw adjustable Sensitivity -95dbm±2dbm Frequency Physics specification working temperature -10~60℃ storage temperature -20~50℃ dimension (including the shell, not Transmitter: L.75.5mm x W. -
Page 6: Introduction
The right of the manual write, modify and release only belong to Wuxi R2TECK, Without the authorization of Wuxi R2TECK, this use manual could not be copied or modified or released The information in this manual is only for DVL2 Full-HD Digital Video Transmission System. - Page 7 DVL-2 should not work when it is wet. Have to make sure it is dry when you use it. DVL-2 is the high precise product, it is forbid to beat and clash.
-
Page 8: Product Overview
OSD module、air part and ground part, it transmit the video and image by the wireless communication mode. DVL-2 is perfect for the transmission distance because of the receiver antennas can be automatically adjusted. Please install the transmitter and OSD module on the aircraft, connect the receiver to the monitor or mobile phone to monitoring the video. - Page 9 Receiver mobile antenna x 2 4.2.1 OSD module part OSD Data collection module ×1 GPS module ×1 Voltage monitoring cable ×1 OSD Data output cable ×1 Mavlink data cable ×1 4.2.3 Receiver cable Transmitter power cable x 1 (standard) Transmitter power cable 12V HDMI cable (D-D) x 1 Camera HDMI cable 4.2.3 Transmitter cable...
-
Page 10: Port Definition
5. Port definition 5.1 Transmitter port 5.1.1 Back side 5.1.1.1 [1]: For frequency switch setting Press the button more than 5 seconds, 4 lights (HDMI, LINK, OSD, WORK) are all turn-off, release the key, 4 lights flash as 0.5Hz frequency, and then 4 lights back to normal state, that means channel change is finished. - Page 11 [1]:HDMI port, for connecting with the camera. [2]:Power port, for transmitter get the power DC-12 V or 2S~3S from the aircraft. [3]:OSD port, for connecting with OSD module. [4]: Work light, for monitoring the transmitter working status. Light status Description Action Flash transmitter works well...
-
Page 12: Front Side Port
5.1.3 Front side port 5.1.3.1 Cooling fan: Pay attention to not cover the cooling fan. 5.2 Receiver port 5.2.1 Upper cabin right side port 5.2.1.1 [1]: Upgrade port, for update the control panel software. [2]: GPS port, for position the receiver. Connect with the receiver GPS module. The two ports are GPS data reception and electronic compass. -
Page 13: Left Side Port
5.2.2 Upper cabin left side port 5.2.2.1 [1]: For MODE button, press MODE button 2seconds, MODE light turn-off (The tracking direction can be adjustable by hand) in offline status, MODE green light turn-on in tracking status. [2]: For LEFT FINE-TUNE button: When the antenna refers to the north direction to the right, please press this button to adjust. -
Page 14: Right Side Port
[8]: MODE light Light status Description Action Green light Tracking status Turn on Turn off Offline status Green light Auto calibration flash twice light Calibration failed Power again turn on 5.2.3 Below cabin right side port 5.2.3.1 [1]: For Bind the Transmitter and receiver. Press the button more than 5 seconds, 4 lights (HDMI, LINK, OSD, WORK) are all turn-off, then stop press the button, 4 lights flash one by one, when the LED light works well that means they are well binded. - Page 15 [6]: Monitor the receiver work status Light status Description Action Flash regularly Receiver works well Receiver does not work Other status Connect the power again well [7]: Monitor the transmitter and receiver connect status Light status Description Action Turn on Connect with transmitter Please wait for connecting Make...
- Page 16 [3]: DC power port, for transmitter to connect with the DC power, suggest output power is more than 2A. 5.3 OSD Interface definition OSD module front side Interface Definition 5.3.1 5.3.1.1 GPS Connection port: Connect with GPS module Voltage Monitoring Interface: Voltage range (DC 0-36V) could be monitored through OCV cable. ...
- Page 17 OSD module back side Interface Definition 5.3.2 5.3.2.1 Mavlink port, for transmit mavlink data, Baud rate 57600, Fream: 0xFE.
-
Page 18: Installation
Video resolution not the best performance. Pls choose“only support by Iphone” when you are using Ipad for downloading the APP.) For Android Users: Pls go to “Google Play” get “r2teck” then download. For Android Users: Pls go to Google play, search the key word “r2teck” and download. -
Page 19: Bind And Frequency Switch
7. Bind and Frequency switch 7.1 Frequency switch This feature is implemented at the transmitter For channel switch setting Press the button more than 5 seconds, 4 lights (HDMI, LINK, OSD, WORK) are all turn-off, release the key, 4 lights flash as 0.5Hz frequency, and then 4 lights back to normal state, that means channel change is finished. -
Page 20: App Instruction
8. APP instruction 8.1 OSD setting Click OSD button, select "Turn-on" or "Turn off", match to the "Display" or "Not display" 8.1.1 8.2 Power setting Click "setting" button to adjust the power, if click 100mw, then the video top right corner shows "PW: 100 OK", means output power setting is succeed. -
Page 21: Troubles Solution
9. Troubles solution Below is the device maintenances about DVL-2, to help the users whom don't have professional testing equipments and technology to solve the simply troubles. 9.1 Transmitter and receiver trouble symptoms / diagnosis / solution 9.1.1 Symptoms Diagnosis... - Page 22 2. DVL2 of the air system needs to be powered system receive the OSD again. turn-off.( DVL-2) MODULE data. 3. OSD MODULE needs to be powered again. 1.Chech the supply voltage ( DC 5V) and the connection cable is normal or not,...
- Page 23 2. The distance is re-accounted again or the value is incorrect, the air system of DVL-2 and OSD MODULE should be re-charged again. If the above solutions do not work, please contact with the customer service.
-
Page 24: Appendix
10. Appendix 10.1 Video input format requirement Signal Video Resolution Remark type format 1080p@60fps 1080p@50fps IF want to change the 1080p@25fps resolution, you have to PAL, 1080i@60fps HDMI re-start the both of the NTSC 1080i@50fps transmitter 720p@60fps receiver. 720p@50fps 720p@25fps 10.2 Monitor OSD content Beside the video, on the top side and bottom side of the monitor display the OSD data.
