SMART X
®
Instructions Manual
A three-phase power consumption data logger for commercial
English
and industrial buildings with breakdown by end-use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMART X and is the answer not in the manual?

Questions and answers

Related Manuals for Smart Impulse SMART X

Summary of Contents for Smart Impulse SMART X

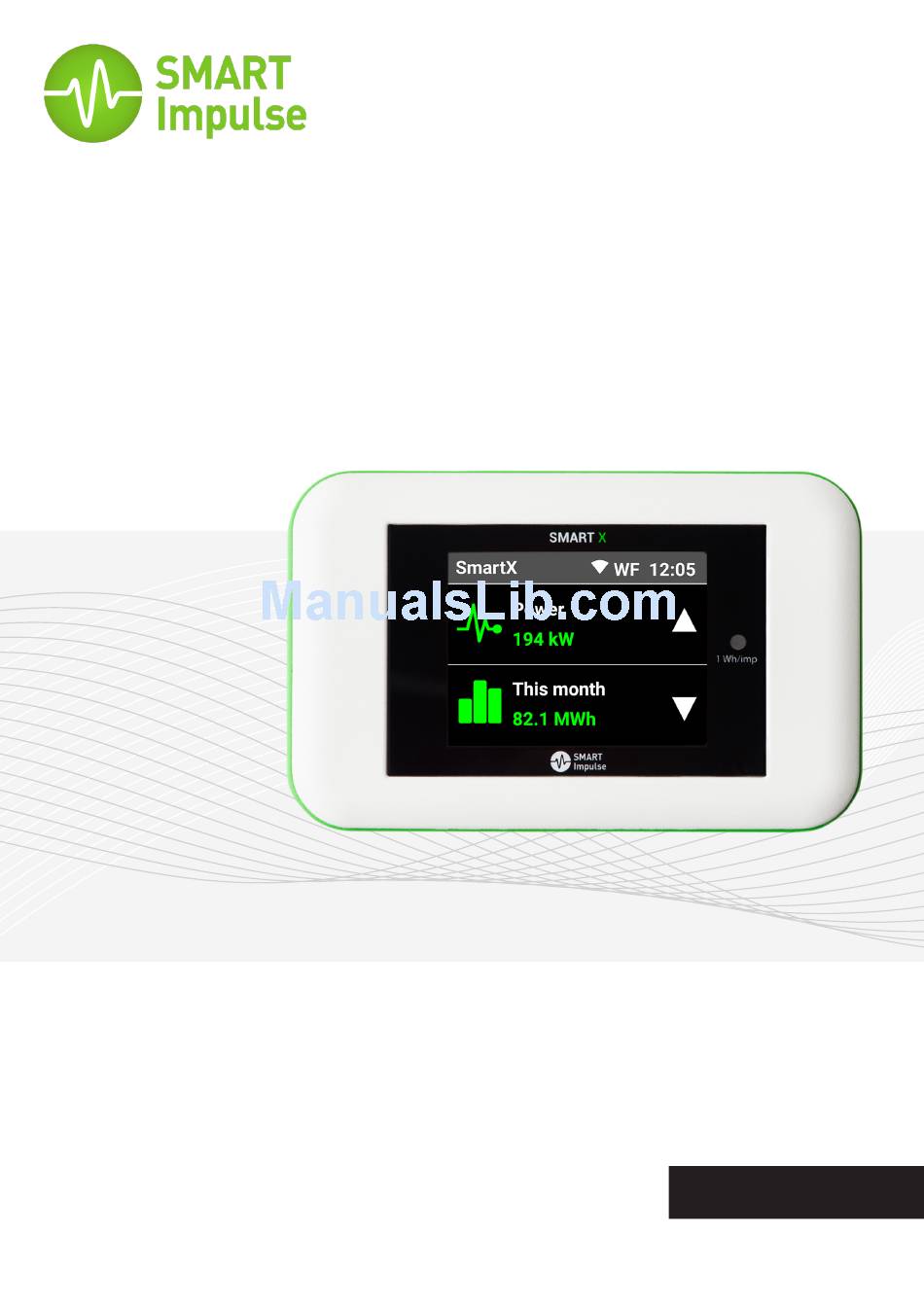

  • Page 1 SMART X ® Instructions Manual A three-phase power consumption data logger for commercial English and industrial buildings with breakdown by end-use.

  • Page 2: Introduction

    ® equipment in a building, from only one measuring point. In addition to standard information about the quality of energy, Smart X also provides a percentage breakdown of electricity consumption by type of equipment or by end-use. Data measured is retrieved from Smart Impulse servers in real time via an Internet connection, or at the end of the measurement period when returning equipment to Smart Impulse.

  • Page 3: Contents

    Contents Smart X comes with all of these accessories: Smart X Current Sensors Smart Router Smart X is the device Accurate and flexible, these Smart Router is a LAN/3G that analyses electricity current sensors measure the gateway that connects to consumption.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Introduction Symbols Used ......................2 Warning ........................2 Contents ........................3 Description Instructions Mounting ........................6 Current measurement ..................... 6 Supply and voltage measurement ................7 Communication ......................8 Validating installation ....................8 Touch Screen ......................9 Characteristics Mechanical .......................

  • Page 5: Description

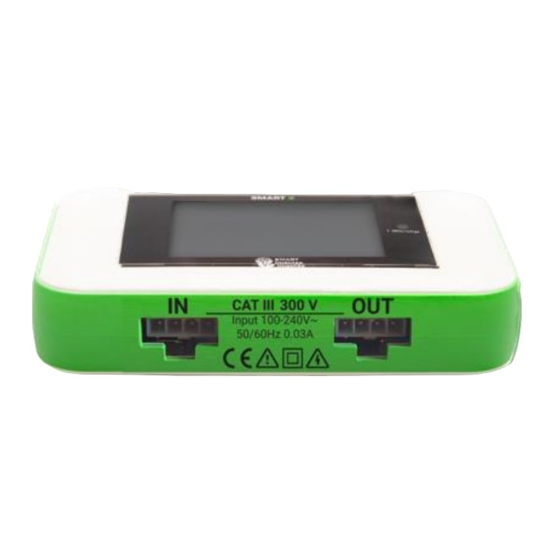

    DESCRIPTION Smart X has three input/output connecting ports: - 1 input port to connect current sensors (current measurement) - 1 “IN” port to connect the single-phase lead, or the three-phase lead or the bridge lead (power supply and voltage measurement) - 1 “OUT”...

  • Page 6: Instructions

    Mounting Mounting on DIN rail Fix magnetic DIN rail adapters to the back of the Smart X as shown, then fix the ensemble to the DIN rail, starting with the top of the rail first, then the bottom of the rail.

  • Page 7: Supply And Voltage Measurement

    For easy installation, Smart X devices in the same electrical panel can share the same power supply. In this case, first connect the bridge lead to the Smart X that has no power (“IN” port), then connect it to the Smart X already installed...

  • Page 8: Communication

    The Smart Router enables the communication of Smart X data located in the same room to Smart Impulse servers (up to 15 Smart X devices per Smart Router). To do so, install the Smart Router close to the Smart X devices...

  • Page 9: Touch Screen

    Router). Verification During this step, Smart X checks the quality of the connection to the Smart Impulse server and the apparent compliance of the installation. In the event of non-compliance, actions are proposed. If a multi-sensor kit is detected, specific actions are proposed.

  • Page 10: Characteristics

    Electrical Characteristics Voltage Input Smart X: CAT IV 300 V (source of the installation of the LV* network) Smart X + three-phase lead: CAT III 300 V (building’s LV* network) Smart X + electrical socket: CAT II 300 V (LV* network load).

  • Page 11: Communication

    CHARACTERISTICS Communication Data Encrypted transmission via HTTP protocol Transmission Volume of data transmitted < 500 MB/month by Smart X WiFi Wifi 2,4 GHz 802.11n Local Storage < 1 month Communication LAN or optional 3G (multi-operator SIM card supplied) Outbound ICMP Protocol to 8.8.8.8 (ping), DNS TCP Protocol to 83.222.241.132, port 80 (HTTP)

  • Page 12: Precautions For Safety & Upkeep

    ● It is prohibited to change or transform the product arbitrarily. ● Never open or disassemble the product. The inside of the Smart X has no part that requires configuration or maintenance on your behalf. ● Any maintenance, configuration or repair works must only be carried out by a qualified technician or a specialized laboratory with perfect knowledge of the potential risks and requirements that apply.

  • Page 13: Maintenance

    Smart Impulse. You must imperatively disconnect the power lead from the electric power supply before opening the fuse holder, so that you change the fuse with the power off.
  • Page 14 Notes 157 boulevard Macdonald 75019 PARIS FRANCE Help Desk: +44 (0) 330 684 6080 technique@smart-impulse.com ● www.smart-impulse.com © Smart Impulse 2017...
