GMGPS GPS001 User Manual

Gps vehicle tracker (gps+gsm+sms/gprs)
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual

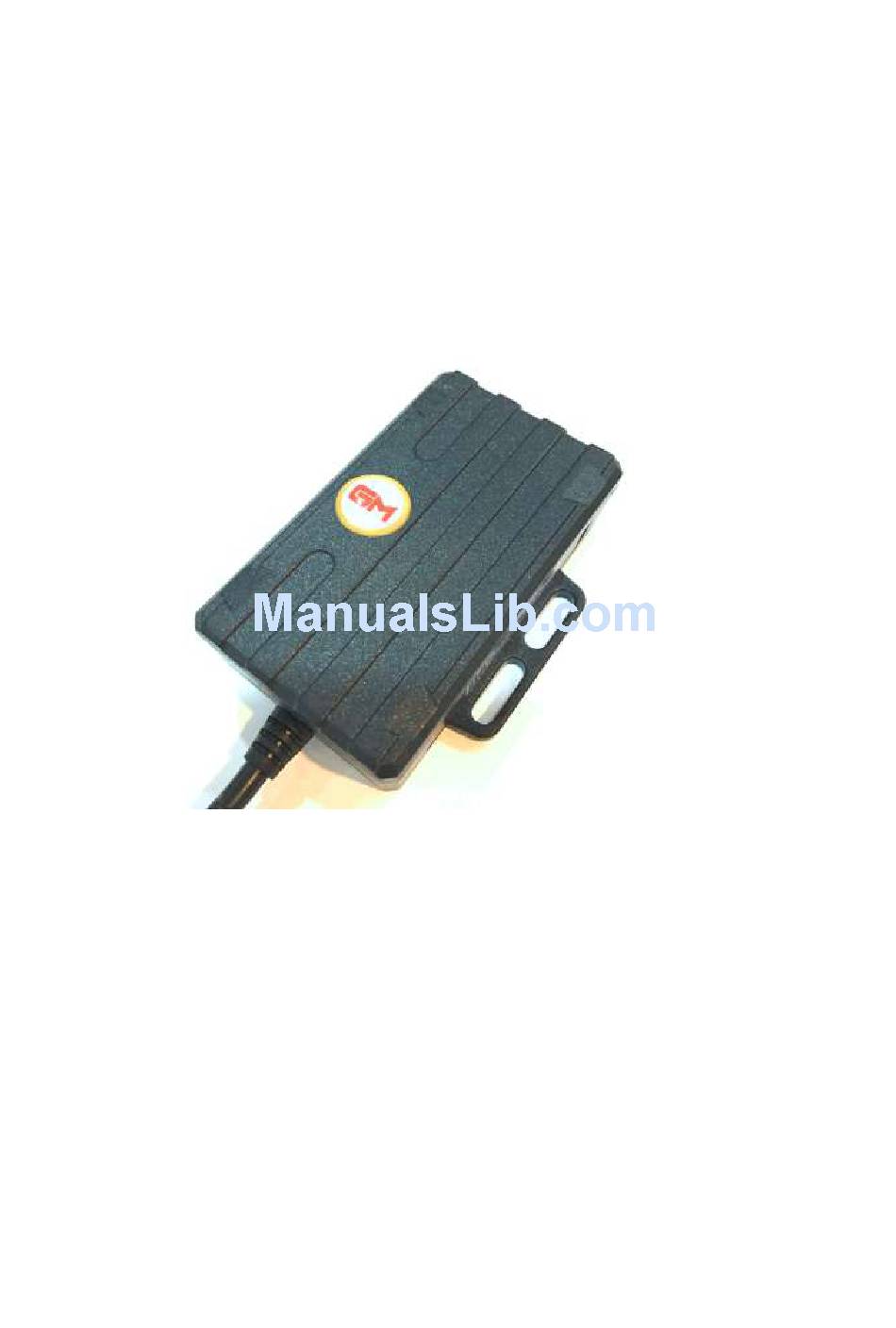

GPS Vehicle Tracker
(GPS+GSM+SMS/GPRS)
Thank you for purchasing the tracker.This manual shows how to operate the device smoothly and
correctly Make sure to read this manual carefully before using this product.
1. Product packaging accessories:
1.1 Power 4P line 1pc (standard accessory)
1.2 Electric relay 1pc (optional accessory)
1.3 User manual 1pc (standard accessory)
(Accessories products refer to the actual product)
1
GPS001
User Manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the GPS001 and is the answer not in the manual?

Questions and answers

Summary of Contents for GMGPS GPS001

  • Page 1 GPS001 GPS Vehicle Tracker (GPS+GSM+SMS/GPRS) User Manual Thank you for purchasing the tracker.This manual shows how to operate the device smoothly and correctly Make sure to read this manual carefully before using this product. 1. Product packaging accessories: 1.1 Power 4P line 1pc (standard accessory) 1.2 Electric relay 1pc (optional accessory)

  • Page 2: Product Features

    2. Product features： 2.1 GSM four frequency(GSM850/900/1800/1900MHZ) system global general; 2.2 built-in switching power supply, exceed wide voltage input range: 10-75 VDC; 2.3 GPS continuous GPS positioning, GPRS report regularly; 2.4 Support SMS message to check the location info; 2.5 built-in vibration sensor, realization vehicle anti-theft intelligently; 2.6 ACC the ignition signal detection, vehicle status prompted;...
  • Page 3 3. Appearance scheme Hang hole Light SIM Card slot USB port Waterproof cover...

  • Page 4: Preparation Installation

    4. Preparation Installation 4.1. Check the product 4.1.1 Open the package, and check product model and accessories. If there is something wrong or missing, please contact the distributor. 4.1.2. The selection of SIM card must follow the distributor’s suggestion. 4.1.3. Install SIM card Firstly , open the cover of the waterproof , secondly, insert the card ;...
  • Page 5 4.3 Terminal wiring diagram...
  • Page 6 Relay connected 5. Equipment Connect the matters needing attention Power supply, the original car guard against theft, broken oil and electricity control line (4 pin) 5.1 This equipment is standard for power supply 10V-75VDC, please choose the original provide power supply cord, red line power positive, the black line for power negative;...
  • Page 7 6. Terminal parameter setting Message set data: The car owner’s mobile phone No. send the message code to the SIM card of the GPS device. Separated symbols is comma. The commas of the following functions data setting command is the English input format. 6.1 Basic operation Settings 6.1.1 Special No.
  • Page 8 6.2.5 Vibration alarm setting Continuous vibration time for 3 seconds by default, vibration alarm time interval 5 minutes by default Alarm way：1 = SMS, 2 = phone call, 3 = SMS + Call , 0 = closed Command format：vib2,3 Reply message：OK! Vibration Level: X Alarm mode: Call/SMS/Call & SMS Alarm content：Vibration！Please check it now! Lat: Lon: GPS:A/V 2016-04-18 16:23 6.2.6 Shift alarm setting (default open) 6.2.6.1 Open Command format：move300...

  • Page 9: Troubleshooting

    Used For: Domestic use ,Car ,Taxi ,Truck, Special Vehicles. *Our company thanks for choosing to use the GMGPS Tracker products. Wish you a pleasant use*...
