mePed Assembly Manual

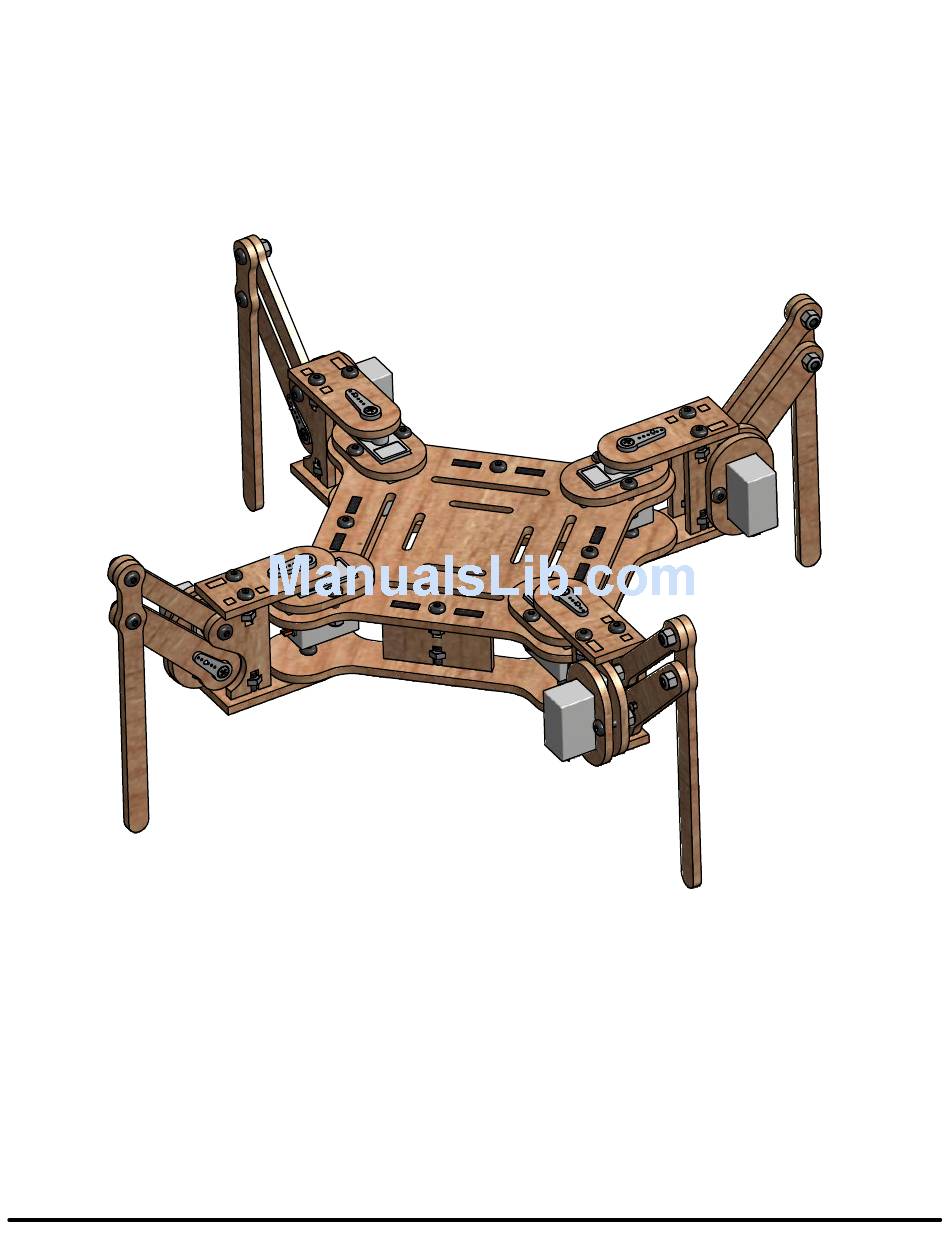

The mePed is a small, open source, quadruped robot designed by Scott Pierce of Spierce Technologies, LLC.
This design is released under the Creative Commons, By Attribution, Share Alike License.
Please keep open source projects going for everyone!
Hardware source files can be found at: www.thingiverse.com/thing:756681
www.spiercetech.com
1
mePed Assembly Manual
www.spiercetech.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SpierceTech mePed
Summary of Contents for SpierceTech mePed
- Page 1 Assembly Manual The mePed is a small, open source, quadruped robot designed by Scott Pierce of Spierce Technologies, LLC. This design is released under the Creative Commons, By Attribution, Share Alike License. Please keep open source projects going for everyone! Hardware source files can be found at: www.thingiverse.com/thing:756681...
- Page 2 32ea - M3 Nyloc Nut 24ea - M3 Nut 40ea - M3 x 10mm 16ea - M3 x 12mm mePed Assembly Manual www.spiercetech.com...
- Page 3 ITEM PART NUMBER Leg Attachment Bottom Plate Leg Servo Plate Servo Single Arm 9 Gram Servo Parallel Joint, Bottom Parallel Joint, Top Nut, M3 x 0.5, Nyloc M3 x 12mm Screw Servo Retainer Servo Mount Screw mePed Assembly Manual www.spiercetech.com...
- Page 4 9 Gram Servo M3 x 10mm Screw M3 Nut Nut, M3 x 0.5, Nyloc Make 4 sets of this assembly M3 x 12mm Screw & set aside for a later step Body Spacer Leg Servo Plate Servo Retainer mePed Assembly Manual www.spiercetech.com...
- Page 5 PARTS LIST ITEM PART NUMBER Servo Screw M3 x 10mm Screw M3 Nut Nut, M3 x 0.5, Nyloc mePed Assembly Manual www.spiercetech.com...
