ESPROS epc610 Manual

Camera module v1.0 time-of-flight camera epc610, 8x8 pixel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

General Description

The epc610 Camera Module V1.0 is a fully assembled and tested
3D TOF camera for the evaluation of the epc610 Time of Flight
(TOF) product.
The module includes an epc610 TOF Imager chip, an active IR
LED illumination for the observation area, a complete lens system
and has a cable interface to the mainboard, allowing a flexible and
convenient placement in a lab setup. The module has a 8.7° x 8.7°
optical aperture angle.
In combination with the epc600/610 Evaluation Kit, which provides
all hardware to operate the epc610 Camera Module V1.0, the user
has a fully functional TOF imager evaluation system.
The included comprehensive application software enables the user
to explore the 3D TOF technology as well the epc610 imager chip.

Overview

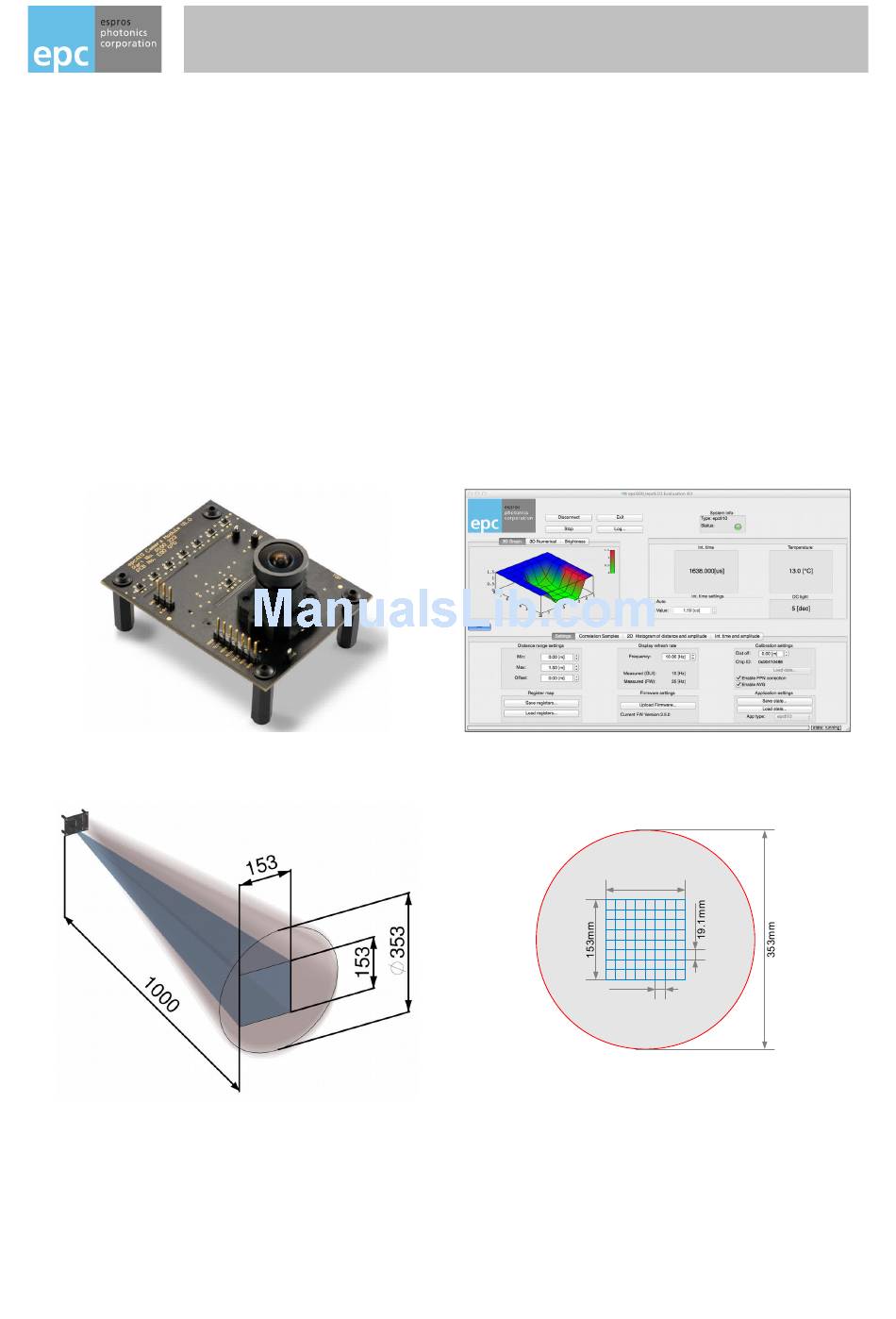

Figure 1: The epc610 Camera Module V1.0
Figure 3: Field of view of the camera
Receiver spot:
153 x 153 mm (8.7° x 8.7°)
Emitter spot:
353mm diameter ≙ □ 250 x 250mm
© 2014 ESPROS Photonics Corporation
Characteristics subject to change without notice
Manual – epc610 Camera Module V1.0
Time-of-flight camera epc610, 8x8 pixel

Features

■ Fully functional TOF camera with 8x8 pixel epc610 Imager chip.
■ Comprehensive application software with graphical user interface
to operate the epc610 chip inside the camera.
■ Automatic mode with adaptive integration times.
■ Manual mode to run the camera in individual set-up or to analyze
raw data.
■ Possibility to store and reload operating configurations.
■ Functionality for logging measurement data on PC.

Purpose

■ Performance demonstration of the epc610 chip in terms of
speed, operating range and accuracy.
■ Demonstration and evaluation hard- and software.
■ Development system for user's own epc610 chip application.
Figure 2: The main dialog of the graphical user interface
with 3D data representation
Figure 4: Illumination spot size
1 / 26
153mm
19.1mm
and pixel field in the object area
Manual epc610_Camera - V1.5
www.espros.ch
