Pyroclassic Fires Pyroclassic IV Wood Burner Installation Instruction Manual

Table of Contents

Download this manual

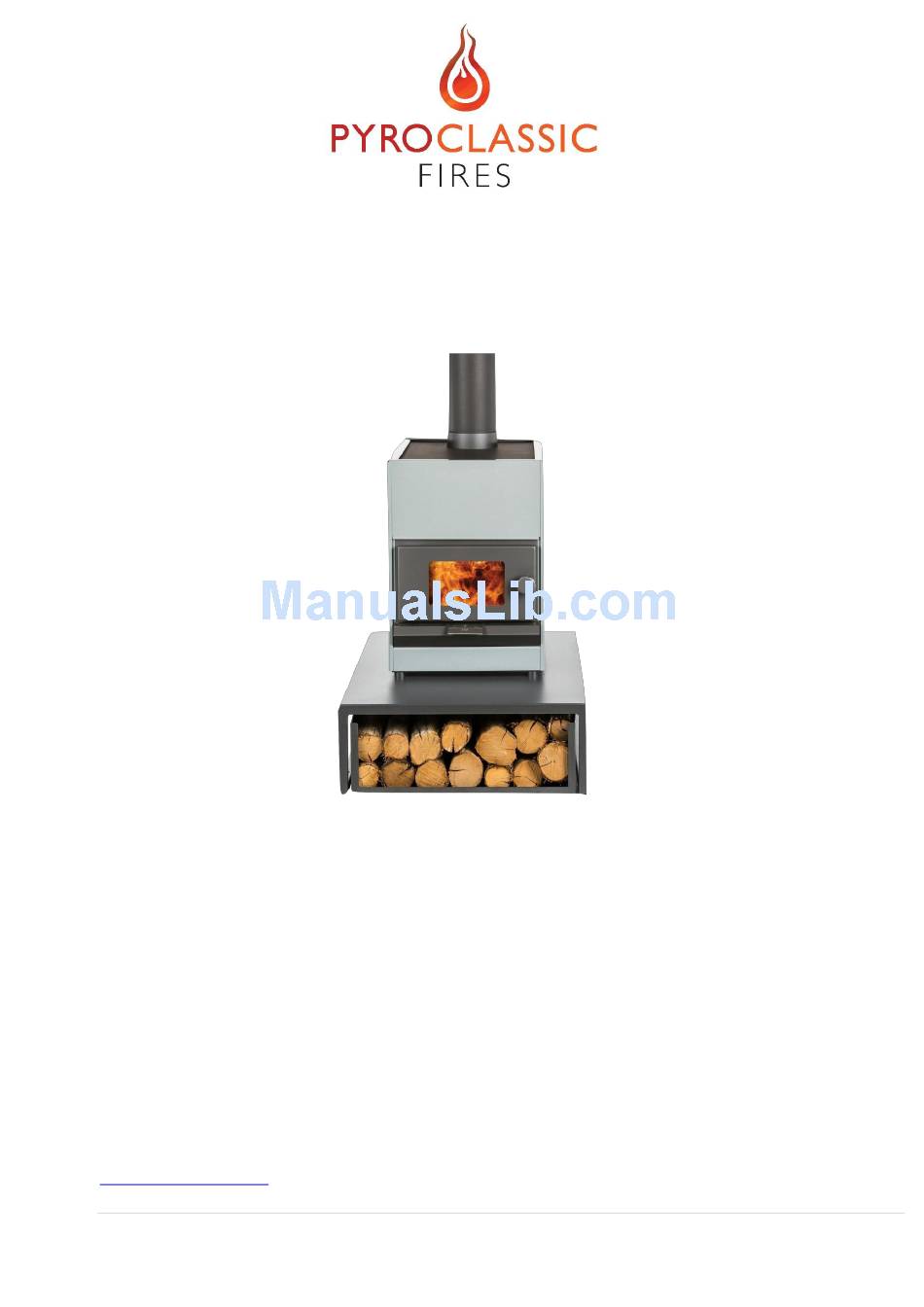

INSTALLATION INSTRUCTIONS

Model: Pyroclassic® IV Wood Burner

Model: Pyroclassic® Mini Wood Burner

PLEASE ENSURE THIS SET OF INSTRUCTIONS REMAINS WITH THE OWNER TO READ

IMPORTANT NOTE

This Pyroclassic fire is tested to AS/NZS4012 and 4013

and should be installed in accordance to AS/NZS 2918:2001.

We strongly recommend that an approved qualified installer is used to install your Pyroclassic fire.

Under no circumstances should any modification be made, or parts removed.

Doing so will result in voiding the fire's warranty.

Pyroclassic Fires Ltd

PO Box 14057, Hastings, 4159

Showroom: 917 Karamu Rd, Hastings, 4122

Ph: (06) 877 0175 or 0800 479 762

www.pyroclassic.co.nz

Table of Contents

Do you have a question about the Pyroclassic IV Wood Burner and is the answer not in the manual?

Page 1: Installation Instructions
We strongly recommend that an approved qualified installer is used to install your Pyroclassic fire. Under no circumstances should any modification be made, or parts removed. Doing so will result in voiding the fire’s warranty. Pyroclassic Fires Ltd PO Box 14057, Hastings, 4159 Showroom: 917 Karamu Rd, Hastings, 4122 Ph: (06) 877 0175 or 0800 479 762 www.pyroclassic.co.nz...
Page 2 INSULATING HEARTH (NOT SUPPLIED BY PYROCLASSIC) Pyroclassic Fires must sit on an insulating hearth with a minimum distance of 369mm in front of the heater when the hearth is installed flush with the surrounding combustible floor. The width...
Page 3 Pyroclassic angled at 45 degrees to the wall the minimum unscreened clearance from the walls is 370mm, measured from the rear corners of the heater to the wall. PYROCLASSIC STANDARD WALL SCREEN Please see ‘Pyroclassic Fires Wall Screen Installation Instructions’ provided with your wall screen or online at http://www.pyroclassic.co.nz/resources/downloads/. CORNER WALL SCREENS Please see ‘Pyroclassic Fires Wall Screen Installation Instructions’...
Page 4 Retaining screw from top plate to flue fitted Here at Pyroclassic Fires, we would like to thank you for completing this installation of one of our fires to the highest standards. We appreciate the time you have taken to ensure this fire will give its new owner many years of service.

Pyroclassic mini wood burner
