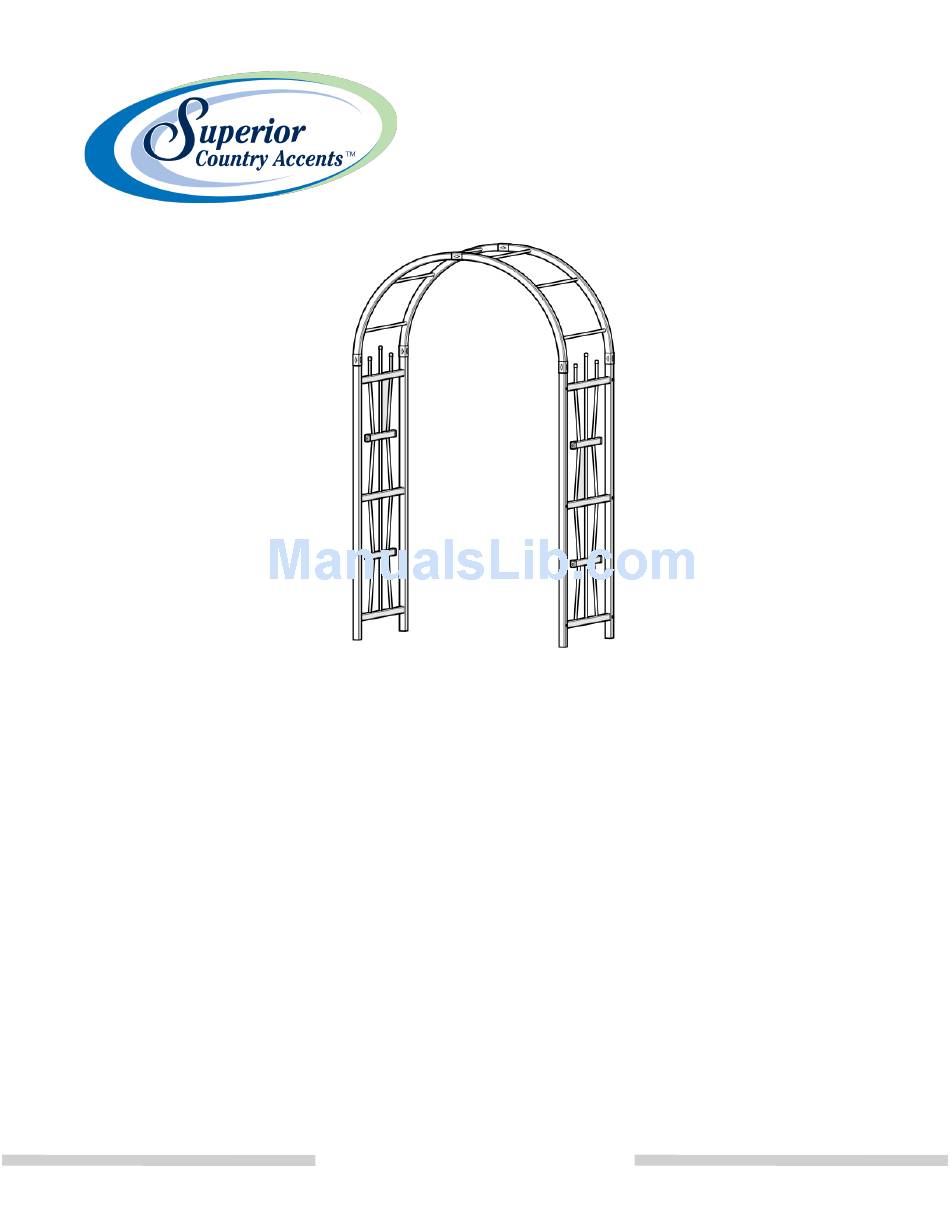

Superior Country Accents Two Hoop Arbor Assembly Manual

Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Recommended Tools

• Safety Glasses
• Tape Measure & Pencil
• Rubber Mallet
• Level
• Power Drill w/ bit driver
•
These directions are only a guide and may not address every situation.
•
Always wear proper safety equipment while assembling and installing.
•
The installer should obtain all required building permits and follow all installation procedures in accordance
with applicable building code requirements.
•
Superior Plastic Products, Inc. shall not be held liable for improper or unsafe installations.
•
Applying paint, will void your warranty.
•
To ensure proper coverage by our warranty please visit our website and complete the warranty form and mail
to: Superior Plastic Products, Inc., 260 Jalyn Drive, New Holland, PA 17557

What's Included

• (4) 1-1/2"sq. x 62" Posts
• (6) 7/8"x 1-1/2"x 25-3/4" Rails
• (4) 7/8"x 1-1/2"x 15" Rails
• (6) 5/8"x 25-3/4" Roof Rails
• (4) 5/8"x 59" Round Spokes
• (2) 5/8"x 61" Round Spokes
• (4) Arch Halves
• (4) 1-1/4"sq. x 16" Alum. Anchors
260 Jalyn Drive ● New Holland, PA 17557
SuperiorPlasticProducts.com
Two Hoop Arbor
• (6) Decorative Connectors
• (1) 4oz. Can of Adhesive
• (16) #8x 1" Screws/ Caps
SPPIG161010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Two Hoop Arbor and is the answer not in the manual?

Questions and answers

Summary of Contents for Superior Country Accents Two Hoop Arbor

  • Page 1 Two Hoop Arbor What's Included Recommended Tools • (4) 1-1/2"sq. x 62" Posts • (6) Decorative Connectors • Safety Glasses • (6) 7/8"x 1-1/2"x 25-3/4" Rails • (1) 4oz. Can of Adhesive • Tape Measure & Pencil • (4) 7/8"x 1-1/2"x 15" Rails •...
  • Page 2 Assemble Side Sections Insert Spokes into 25-3/4" bottom Rail (has routed holes on one side only). Longest Spoke to be placed in center position. Next place remaining Rails over Spokes according to illustration. Place Posts onto Rails. Check width at top and bottom of the side section. Place Caps on Spokes.
  • Page 3 Assemble Arbor Connect the roof with the side sections; again applying adhesive (included) to the mating surface of each Connector prior to placing on corresponding Post. Allow the adhesive to fully set prior to continuing to the next step. Insert Anchor Channels 6 inches into Posts.
  • Page 4 260 Jalyn Drive ● New Holland, PA 17557 SuperiorPlasticProducts.com...
