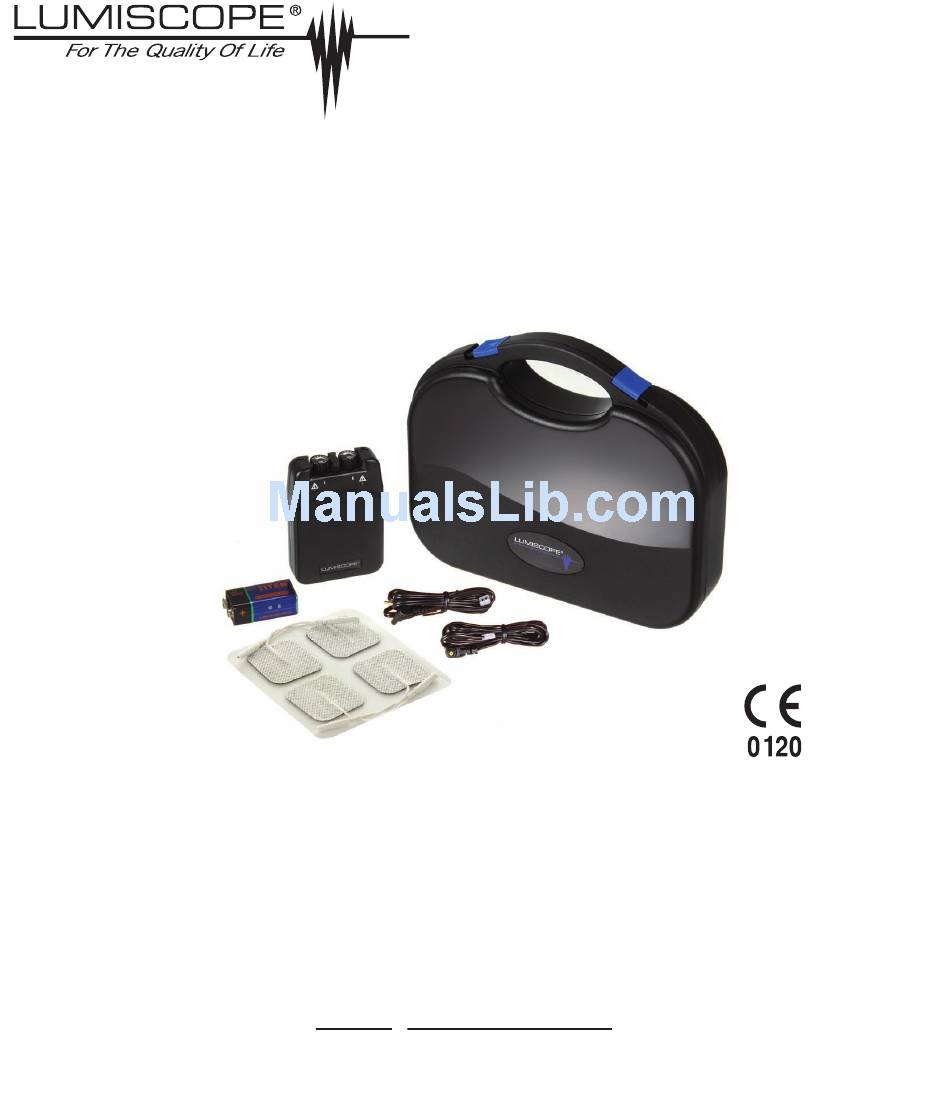

- Page 1 Transcutaneous Electrical Nerve Stimulation Device LUMI-TENS Operation Manual Read this manual before operating your LUMI-TENS. Save this manual for future use. The most current version of this manual can be found online at www.grahamfield.com. LUMI-TENS-INS-LAB-RevC14...
-
Page 2: Table Of Contents
GF Health Products, Inc. is not responsible for typographical errors. For the most updated and current information on packaging, warranties, products and specifications, including the most current version of these instructions, please visit our website at www.grahamfield.com. Graham-Field and Lumiscope are registered trademarks of GF Health Products, Inc. -
Page 3: Introduction To Tens
INTRODUCTION TO TENS What is Pain? Pain is the body’s warning system. Pain is important because it signals an unusual condition in the body and alerts us before additional damage or injury can occur. TENS was developed to help relieve some types of chronic and acute pain. -
Page 4: Warnings
SAFETY Always follow basic safety precautions, including the following: WARNING: Indicates a potential hazard situation or unsafe practice that, if not avoided, could result in death or serious personal injury. CAUTION: Indicates a potential hazard or unsafe practice that, if not avoided, could result in minor personal injury or product/property damage. -
Page 5: About This Device
Lead Connector Intensity Controls Indicator Light Pulse Width Control Mode Selector MODE 4 5 10 20 Pulse Rate Control (uS) (Hz) PULSE WIDTH PULSE RATE Battery Compartment Battery Strip ABOUT THIS DEVICE Your TENS device is a battery operated device that includes two controllable output channels. -
Page 6: Unit Controls
UNIT CONTROLS Panel Cover A cover which conceals the controls for the Pulse Width, Pulse Rate, and Mode Selector. Press the top portion of the cover and pull down in order to open the cover. Intensity The Intensity Knobs located on the top of the unit affect the strength of the stimulation and also function as ON/OFF controls. -
Page 7: Electrode Selection And Care
ELECTRODE SELECTION AND CARE Use the electrodes as prescribed. Follow application procedures outlined in electrode packaging to maintain stimulation and prevent skin irritation. The electrode packaging provides instructions for care, maintenance and proper storage of electrodes. TIPS FOR SKIN CARE Good skin care is important for effective and comfortable use of your TENS device. -
Page 8: Battery Information
4. Insert the lead wire connector to the TENS device: Plug the end of the lead wire into the lead connector port to be used, pushing plug in as far as it will go. 5. Select treatment settings: Ensure the unit is set to the proper settings (Pulse Width, Pulse Rate, and Mode Selector), recommended by your physician. -
Page 9: Caring For Your Tens Device
CARING FOR YOUR TENS DEVICE Your TENS device may be cleaned by wiping gently with a damp cloth moistened with mild soap and water. Never immerse the device in water or other liquids. Wipe lead wires with a damp cloth moistened with soap and water. To properly store the TENS device for extended period of time, remove the battery from the unit. -
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS Channel: Dual, isolated between channels Modes of Operations: Burst, Continuous, Modulation Pulse Intensity: Adjustable 0-80mA peak into 500 ohm load each channel, constant current Pulse Rate: 2Hz-150Hz (adjustable) Pulse Width: 30uS-260uS (adjustable) Burst Mode: Burst consists 2 burst per sec at 100 Hz Wave Form: Asymmetrical Bi-Phasic square pulse Voltage:... -
Page 11: Warranty
ONE-YEAR LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser (“Customer”) only, that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use for a period of one year after the purchase date unless there is an expiration date on the component in which case the warranty shall expire on the earlier of the warranty period or the expiration date. - Page 12 Manufactured for: GF Health Products, Inc. 2935 Northeast Parkway Atlanta, Georgia 30360 telephone: 770-368-4700 fax: 770-368-2386 www.grahamfield.com © 2008 GF Health Products, Inc. Made in Taiwan...
