- Page 1 CLICK TO CHANGE TEXT PRESSURE WASHER PPPW-3100 OWNERS MANUAL...
-
Page 2: Table Of Contents
INTRODUCTION CONTENTS FOR SAFE OPERATION ................ 4-7 This manual has been produced by Parker Products Ltd. and should be kept with the PARTS ASSEMBLY ................... 8-9 product and referenced for operation, maintenance and troubleshooting. FEATURES ...................... 10-11 This manual contains an overall description of the product, together with all the ASSEMBLY ..................... -
Page 3: For Safe Operation
FOR SAFE OPERATION • • Read and understand this manual in its entirety before operating High pressure hoses, fitting and couplings are important for the GLOVES this pressure washer. Improper use of this pressure washer could safety of the machine. Use only hoses, fittings and couplings Gloves should be worn where appropriate. -
Page 4: For Safe Operation
FOR SAFE OPERATION FOR SAFE OPERATION • For gas or oil-heated machines it is important to provide adequate • Always release water pressure from unit every time you stop the • When adding or draining fuel, unit should be turned off for at least 2 ventilate and make sure that the flue gases are properly discharged. -
Page 5: Parts Assembly
PARTS ASSEMBLY PARTS ASSEMBLY NUMBER ITEM NAME NUMBER ITEM NAME PACKING LIST ENGINE WIRE • Pressure washer • Quick start guide DETERGENT TANK CAP NOZZLE HOLDER • Operator's manual DETERGENT TANK ROTATIONAL SCREW • Engine manual • Spray gun LOWER FRAME ASSEMBLY PIPE •... -
Page 6: Features

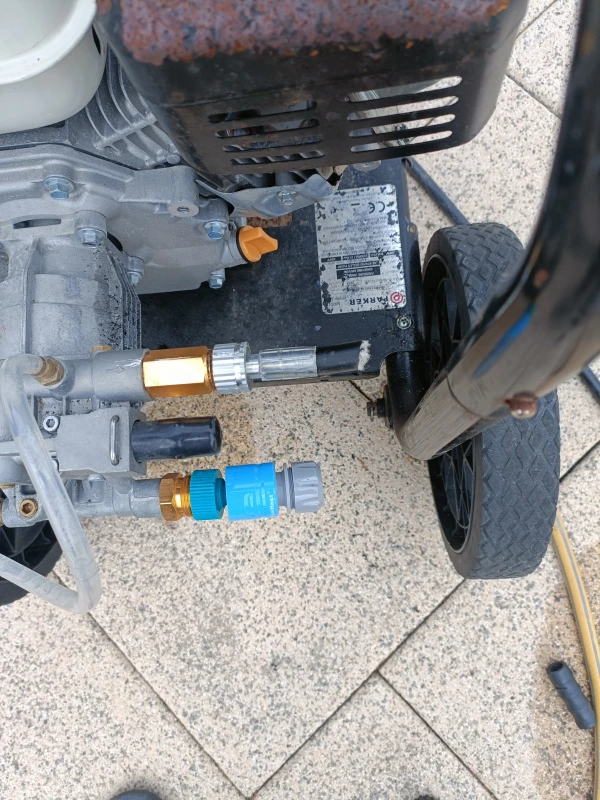

FEATURES FEATURES HIGH PRESSURE HOSE SPRAY GUN SOFT GRIP HANDLE HIGH PRESSURE PUMP CHOKE & FUEL LEVER RECOIL PULL STARTER HIGH PRESSURE OUTLET PRESSURE RELEASE VALVE OIL FILLER & DIPSTICK ON/OFF SWITCH WATER INLET SOAP TANK FOAM FILLED TYRES... -
Page 7: Assembly
ASSEMBLY ASSEMBLY ATTACH FOOT ASSEMBLY INSTALL HANDLE ATTACH ACCESSORY HOOK ATTACH SPRAY GUN ATTACH THE HOSE Parts needed: 1 x foot + 1 x M8 lock nut. Install the upper frame (handle) onto the lower frame Attach the accessory hook. Screw the spray wand and the trigger handle together Insert the inlet coupler of the spray hose into the threaded fitting on the high pressure spray gun and... - Page 8 ASSEMBLY ASSEMBLY ADD / CHECK OIL ADD FUEL CONNECT GARDEN HOSE CONNECT HIGH PRESSURE HOSE 1. Attach end of high pressure hose to the high 1. Place pressure washer on a level surface. 1. Set pressure washer on a clean and level surface 1.
-
Page 9: Starting The Engine
STARTING THE ENGINE STARTING THE ENGINE PRE-OPERATION CHECKLIST TURN FUEL VALVE TO "ON" SLIDE CHOKE TO LEVER TO "CHOKE" ☑ Read and understand this operator manual in it's entirety before operating pressure washer ☑ Check oil level and add oil to the proper level if low ☑... - Page 10 STARTING THE ENGINE STARTING THE ENGINE PULL RECOIL SLIDE CHOKE TO RUN POSITION TURN ENGINE OFF/ON SWITCH TO "ON" TURN ON WATER SUPPLY CHOKE 1. Holding the machine with your hand, pull the recoil 1. Slide choke lever to the right (RUN position) 1.
-
Page 11: Turning Off The Engine
TURNING OFF THE ENGINE TURNING OFF THE ENGINE TURN OFF THE ENGINE TURN FUEL VALVE OFF TURN OFF WATER SUPPLY RELEASE WATER PRESSURE 1. Turn the ON/OFF switch to the "OFF" position. 1. Slide the fuel valve to the left (OFF position). 1. -
Page 12: Operating The Spray Gun
OPERTAING THE SPRAY GUN START WATER FLOW STOP WATER FLOW SLOT THIS PAGE HAS INTENTIONALLY BEEN LEFT BLANK LOCK OUT TRIGGER 1. Flip the lock tab behind the trigger up or down 1. Release trigger to stop water flow. until it clicks to apply or remove the safety. 2. -
Page 13: Using Spray Nozzle
USING SPRAY NOZZLE APPLYING DETERGENT APPLYING DETERGENT RINSING WITH THE PRESSURE WASHER CHANGING NOZZLES USING SPRAY NOZZLE • • Rinse surface with cool water before applying cleaner. Test a small area first to avoid surface damage. • Prepare detergent as required fro job. For best results follow •... -
Page 14: Maintenance
MAINTENANCE MAINTENANCE Regular mantenance will extend the life of your pressure washer and REMOVE DEBRIS CHANGING ENGINE OIL HIGH PRESSURE HOSE improve its performance. The warranty does not cover items that re- sult from operator negligence, misuse or abuse. To receive full value 1. - Page 15 MAINTANENCE CHECKING THE SPARK PLUG REPAIRING LEAKING CONNECTIONS 1. Disconnect the spark plug wire from the spark plug. Purchase O-rings/seals and replace damaged or worn seals on the pressure washer. 2. Before removingthe spark plug, clean the area around its base to prevent debris from entering the engine.
-
Page 16: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION PROBLEM POSSIBLE CAUSE SOLUTION Engine loses power when Out of fuel Fill fuel tank Engine speed is too low Contact ParkerBrand load is added Engine oil low Add engine oil Inspect garden hose for kinksor leaks. Make sure you are using a large Water supply is restricted enough garden hose (min. - Page 17 TROUBLESHOOTING MAINTENANCE SCHEDULE PROBLEM POSSIBLE CAUSE SOLUTION Inspect garden hose for kinksor leaks. Make sure you are using a large Water supply is restricted enough garden hose (min. ¾ inch diameter) Water not turned on full power Open water source all the way Nozzle is clogged Clean nozzle Pump fails to produce...
-
Page 18: Diagram
DIAGRAM Ignition Switch Ail Alert Unit THIS PAGE HAS INTENTIONALLY BEEN LEFT BLANK Spark Plug Ignition Coil Oil Sensor Black Yellow... -
Page 19: Specifications
SPECIFICATIONS DECLARATION OF CONFORMITY Description & Function: Technical file complied by: Declared Single-Number Noise Emission Values Model Number PPPW-3100 Gasoline Pressure Washer - High Press Cleaner Parker Products Ltd. in accordance with EN ISO 4871:1996 Richmond Park Rated Pressure 21.3 MPa... - Page 20 PPPW-3100 WWW.PARKERBRAND.CO.UK July 2017 Rev 1.0...
