FEL990 Series lectric Mortice Lock
Installation Instructions

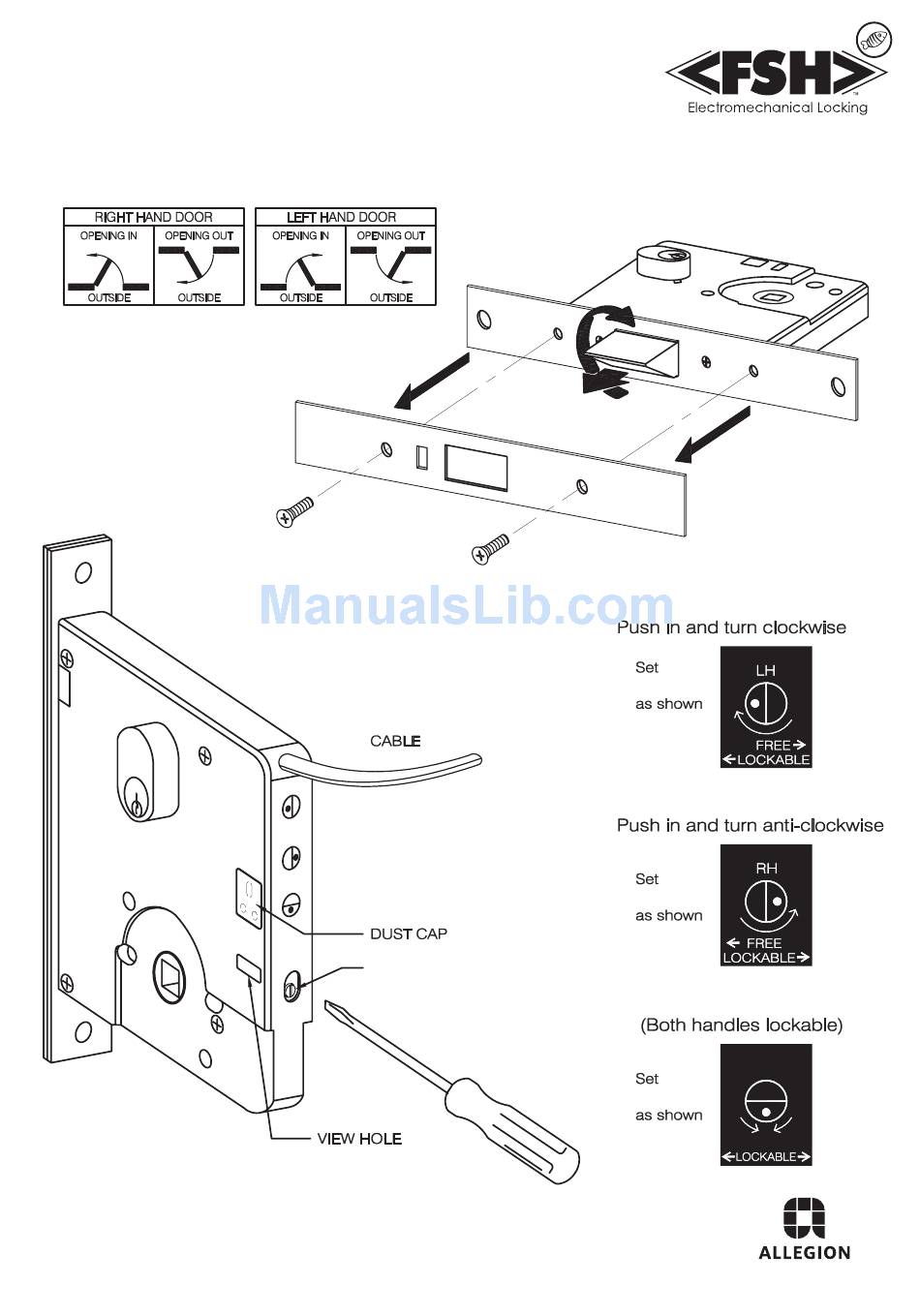

TO REVERSE LATCH BOLT
1.
Remove outer Face Plate
2. Pull & Rotate Latch Bolt 180 degrees clockwise
NOTE:
If the handing and locking function selector is not visible through the
view hole - the lock is set for Fail Secure (FSE). To make
the handing and locking function selector visible, use the holdback clip
- see overleaf for Fail Safe (FSA) Fail Secure (FSE) selection.
E
HANDING AND LOCKING
FUNCTION SELECTOR
HANDING AND LOCKING FUNCTION SELECTION
For left hand VESTIBULE
selector
For right hand VESTIBULE
selector
To set for C COMBINATION
selector
