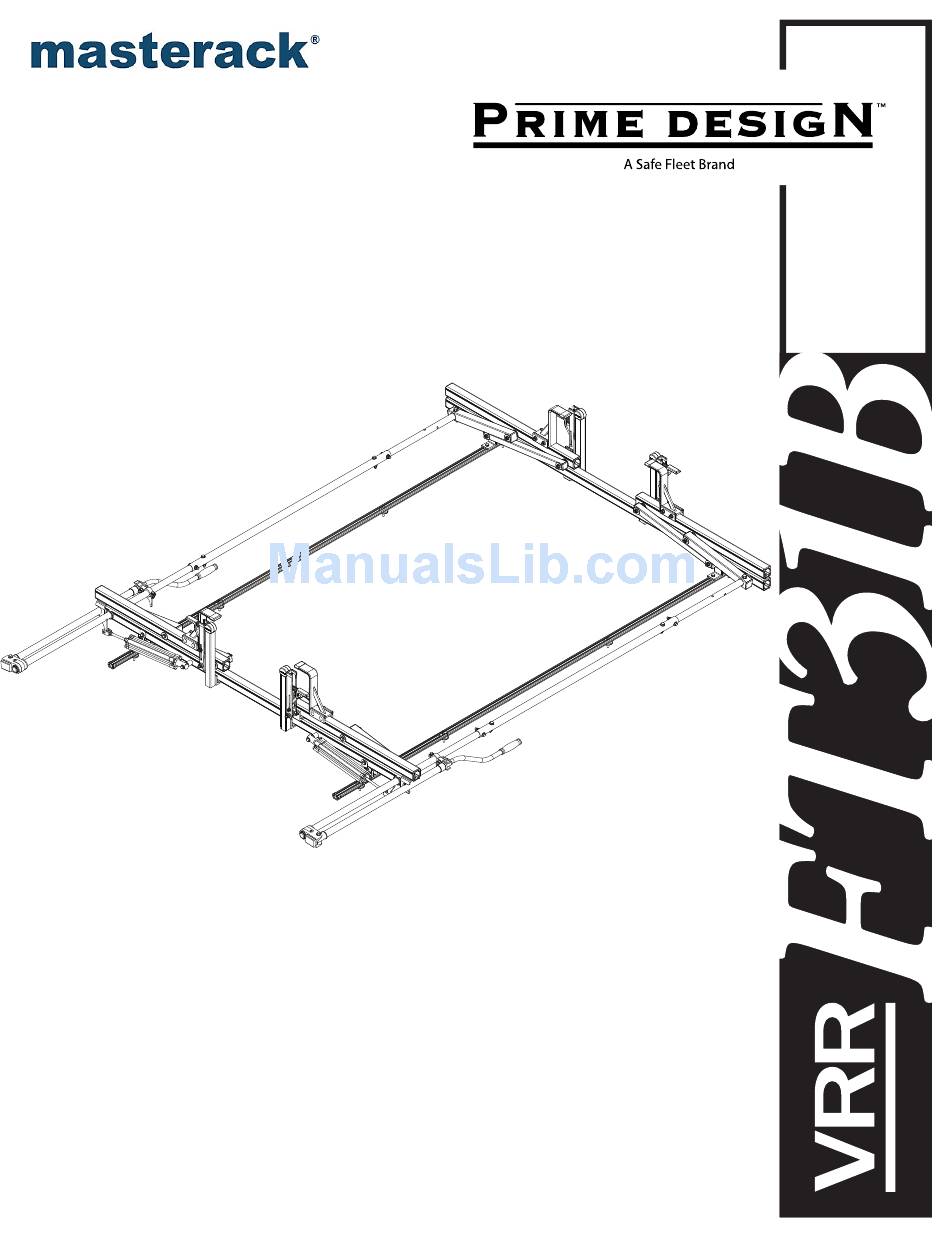

Prime Design ErgoRack VRR-FT31B Assembly Instructions Manual

Ergorack series for ford transit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ErgoRack VRR-FT31B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Prime Design ErgoRack VRR-FT31B

Summary of Contents for Prime Design ErgoRack VRR-FT31B

  • Page 2: Contents Overview

    CONTENTS OVERVIEW 1—FBM-0011 ............(Qty 1) 26-1/4” Channels (2X) Channels with Hardware 72” Channels (2X) M8 X 35MM (8X) End Caps (4X) Brackets (4X) Connect Plate (6X) Flex Channel Connector (2X) M8 Spacer (8X) Foam Gasket (8X) Foam Pad (6X) Flex Channel Foam Pad (2X) 2—Rear Crossbar Assembly ........
  • Page 3 4—Rear Drive Shaft ..........(Qty 1) Right Hand, B4 Version, 46.00” 5—Handle Latch Assembly ........(Qty 1) Right Hand 6—Connecting Bar ..........(Qty 2) 4.00’ 7—Front Drive Shaft ..........(Qty 2) B Version, 35.75” 8—Z Post ............... (Qty 4) Adjustable, 7.25”...

  • Page 4: Fbm-0011

    FBM-0011 Install Channels into roof Channel groove as shown CHANNELS TO ROOF Position Channels as shown below in Fig.1 F r o R i g R e a Install fasteners into factory roof rail mounting locations. Torque to 150 in-lbs. Fig.
  • Page 5 RIGHT ROTATION ASSEMBLY 3/18 CROSSBARS CROSSBAR ADJUSTMENT F r o 9.25” Front 8.65” Rear Torque to 90 in-lbs...

  • Page 6: Rear Drive Shaft

    REAR DRIVE SHAFT CYLINDER HARDWARE Torque to 90 in-lbs Torque to 80 in-lbs CONNECTING BAR FRONT DRIVE SHAFT...

  • Page 7: Connecting Bar

    CONNECTING BAR FASTENERS Z POSTS SEE QUICK START GUIDE FOR ADJUSTMENTS Torque to 90 in-lbs L POSTS DRIVE SHAFT SEALING SEE QUICK START GUIDE FOR ADJUSTMENTS Torque to 90 in-lbs Apply Silicone Sealant to Connecting Bar ends...
  • Page 8 LEFT ROTATION ASSEMBLY 11/18 REAR DRIVE SHAFT CYLINDER HARDWARE 10.1 11.2 10.2 10.3 11.1 10.4 Torque to 10.5 90 in-lbs Torque to 80 in-lbs...
  • Page 9 CONNECTING BAR FRONT DRIVE SHAFT 13.1 13.2 12.1 13.3 12.2 CONNECTING BAR FASTENERS Z POSTS SEE QUICK START GUIDE FOR ADJUSTMENTS 15.1 15.1 15.2 Torque to 90 in-lbs...

  • Page 10: L Post

    L POSTS DRIVE SHAFT SEALING SEE QUICK START GUIDE FOR ADJUSTMENTS 16.1 17.1 16.1 16.2 17.2 Torque to 90 in-lbs Apply Silicone Sealant to Connecting Bar ends CYLINDER ADJUSTMENT Adjust the Cylinder Flow Control Screw to allow approximately 3 seconds time for the ladder to glide down when operating the loaded Ladder Rack.
