Page 1: Portable Dvd Player

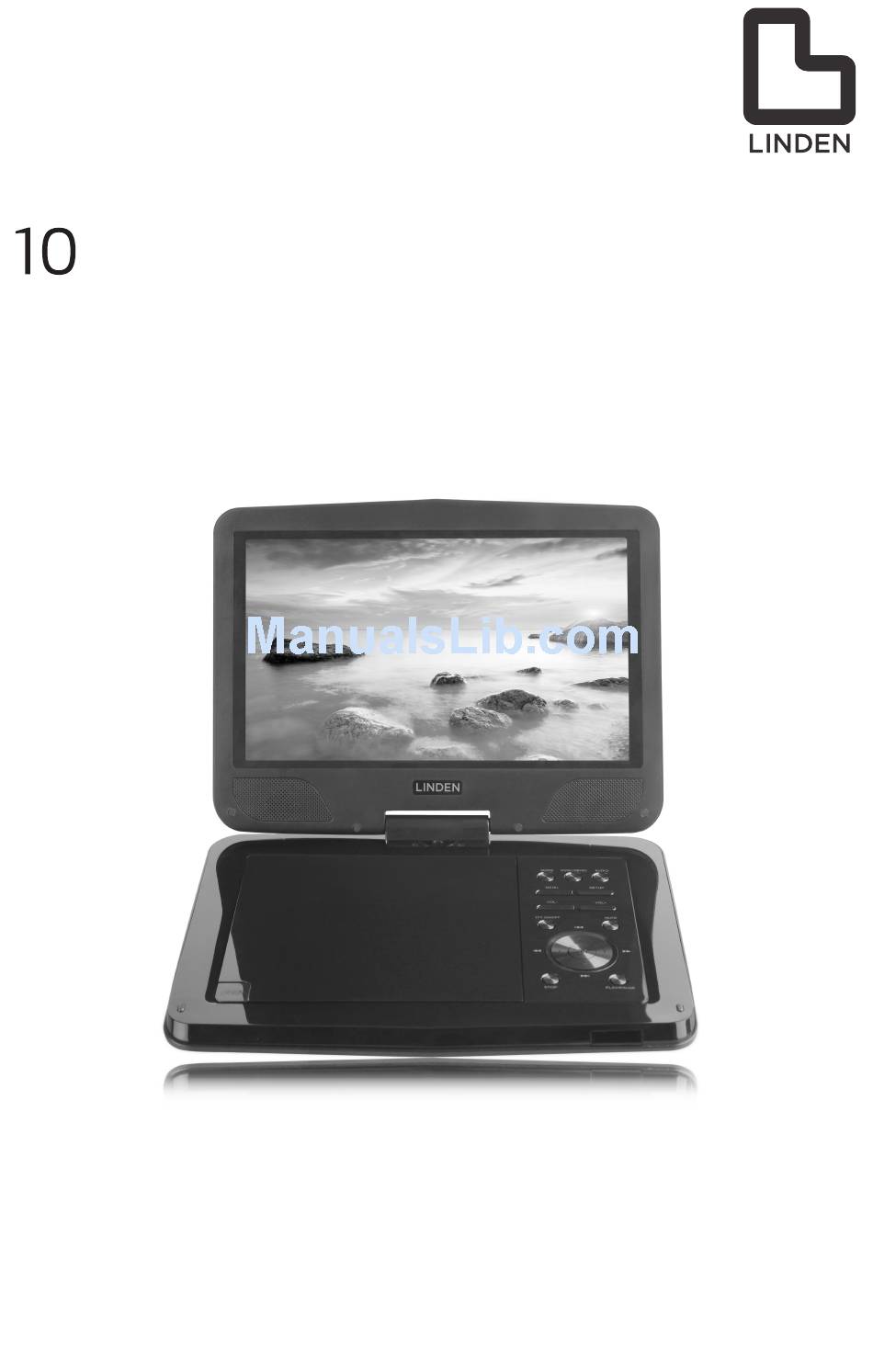

” Portable DVD Player Instruction manual -------------------------------------------------------------------------- L10PDV17 -------------------------------------------------------------------------- 12 month manufacturer's warranty... -
Page 3: Table Of Contents
Contents Guide to the device..............Safety precautions................ Package contents................Optical discs..................Connections..................Remote control................Basic operation................Special features................System setup................... Troubleshooting................Specifications.................. -
Page 4: Guide To The Device
Guide to the device DVD player view 1. MODE 2. DVD/USB/SD SELECT KEY MODE DVD/USB/SD AUDIO 3. AUDIO 4. MENU MENU SETUP 5. SETUP 6. VOL- VOL+ 7. VOL+ 8. TFT ON/OFF TFT ON/OFF MUTE 9. MUTE 10. PREVIOUS KEY/UP 11. -
Page 5: Safety Precautions
Safety precautions Warning To prevent fire or shock hazard, DO NOT expose this appliance to rain or moisture. High voltage warning Dangerous high voltages are present inside this enclosure. To avoid electric shock, DO NOT open the cabinet; refer servicing to qualified personnel only. - Page 6 12.Button Battery Warnings • CAUTION: Do not ingest battery, Chemical Burn Hazard. • The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
- Page 7 Caution: Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation. Service and maintenance 1. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards.
-
Page 8: Package Contents
Package contents Please make sure the following items are included in package. If any item is damaged or missing, contact your dealer. Main Unit Remote Control Car Adaptor AC Adaptor AV Cable Instruction Manual Items not shown: Statutory notice Warranty card... -
Page 9: Optical Discs
Optical discs Disc requirements This DVD player supports playback of the following discs Type Disc Mark Content Type Disc Size Max. Playback Time DVD-Video Discs Audio+Video 12 cm 133 min (SS-SL) (Moving picture) 242 min (SS-DL) 266 min (DS-SL) 484 min (DS-DL) Audio Compact Discs Audio 12 cm... -
Page 10: Connections
Connections Before connecting 1. Ensure that the player and other external equipments to be connected are switched off before commencing connection. 2. Read the instructions carefully before connecting other external equipments. 3. Ensure that you observe the colour coding when connecting audio/video cables. Connecting external TV Your player comes equipped with an AV output jack. -
Page 11: Battery Operation
Connecting power supply AC adaptor operation Before connecting the supplied AC adaptor to the wall outlet, ensure that all other connections have been made. Insert the small plug of the supplied AC adaptor firmly into the DC IN9V-12V jack on the right side of the player, and then insert the adaptor into an available AC 100-240V~50-60Hz wall outlet. - Page 12 When the built-in battery power is low, the empty battery icon will appear on the screen and indicate the player will be turned off automatically soon; you need to connect the AC adaptor for power supply. Note: 1. Only use the AC adaptor and Car adaptor supplied. 2.
-
Page 13: Remote Control
Remote control Preparation of the Remote Control The remote control requires on CR2025 type 3V lithium battery, to extend the battery life of the original battery, a small plastic spacer tab has been inserted between the battery and the battery terminal. In order to get your remote control working initially,pull the tab from the battery compartment. - Page 14 1. MUTE: Press the key to mute the audio of the player. Press it again to activate the sound. 2. 0-9 & 10+Number Keys: Use the Numeric buttons to input a DVD chapter or CD track (invalid for some discs) and press PLAY/PAUSE button to confirm. 3.
-
Page 15: Basic Operation
Basic operation Depending on the discs, some operations may be different or restricted. Do not put any objects other than disc on the disc tray. Doing so may cause the player to malfunction. Note: 1. If a “ ” mark appears on the screen when a button is pressed, it means the function is not available at the moment on the current disc or at the current station. - Page 16 7. Press the PBC button on the remote control to activate or deactivate the PBC function. PBC playback allows you to play Video CDs (VCD version 2.0 only) interactively. 8. Press the MUTE button on the remote control to turn on or off the sound. 9.
- Page 17 Slow Motion Playback (DVD, SVCD, VCD) Press the SLOW button on the remote control when pictures moving, you can enter Slow Motion Playback mode. Press the SLOW button on the remote during playback. Press the button again on the remote to play at the next speed. Slow Motion Playback has four speeds: 1/2, 1/4, 1/8, 1/16, and normal playback with each consecutive press of the button, the play speed decreases.
- Page 18 Note: Zoom may not work on some disc. The picture quality decreases as the picture size increases. Selecting subtitle languages (DVD) While playing a DVD disc that has been mastered with multiple subtitles, press the subtitle button repeatedly to select the desired language of the viewable subtitle. Note: Only DVDs recorded with multi-language subtitles have this function.
- Page 19 2. Playing VCD disc • Disc Time: Use navigation buttons to select a field (minutes, seconds). Use the numeric keypad to enter the field values. • Track: Enter the track number using the numeric keypad. 3. Playing CD disc Use navigation buttons to select a search option: •...
-
Page 20: Special Features
Special features MP3/WMA Playing The MP3/WMA disc has a directory structure as shown in the picture. Press the Direction key to choose the root directory and then press the ENTER button to enter into the sub directory. Press the Direction key to choose the desired track and then press the ENTER button to enjoy the music or movie. - Page 21 Image rotation In picture play state, press the Direction key to rotate the picture. Connect to USB You can play or view the supported data files, such as the MP3/WMA, Video files in AVI files, photo in JPEG. Copy the desired files in your USB device, and insert the USB device into the USB port on the right side of your portable DVD player.
-
Page 22: System Setup
System setup To access the setup menu, press the setup button on the remote control. You will be given four sub menu options to choose from. Each option is described below. Use the arrow keys to navigate between the options. General The general menu allows you to modify basic setting such as language. - Page 23 Video The video menu allows you to change the display properties of the portable DVD - Quality Sharpness: Adjust the screen sharpness between LOW/MID/HIGH Brightness: Adjust the screen brightness Contrast: Adjust the screen contrast Gamma: Adjust the screen gamma Hue: Adjust the screen hue Saturation: Adjust the screen saturation - Panel Quality: Setup the video quality - Panel Display: Setup panel display to 16:9 or 4:3...
-
Page 24: Troubleshooting
Troubleshooting Carry out the problem-solving measures described in the following section before contacting Customer Support. Do not attempt to repair the DVD player by yourself. T urn off the DVD player immediately as soon as you suspect a malfunction. Unplug the power plug and check whether the DVD player is unusually warm or whether smoke is rising from it. -
Page 25: Specifications
Specifications AC Adaptor input power: AC 100-240V 50/60HZ Power adaptor Output: DC 12V 1A (AC adaptor Terminal) Power supply DC 9V - 12V 1A Play mode NTSC/PAL/AUTO Disc mode DVD,VCD, CD, MP3, CD-R, CD - RW, JPEG, DVD+ -R/RW USB/SD/MMC playback MP3, WMA,JPG, 360P AVI ideo S/N ratio ≥... - Page 28 Distributed by: M.E.W. (Australia) Pty Ltd, 15 Vaughan St, Essendon Fields, Vic 3041 ACN 152 719 036 Customer care: Aus-1300 530 800 customercare@lindenproducts.com.au lindenproducts.com.au While every effort has been made in the preparation of this instruction manual the publishers cannot be held responsible for the accuracy of the information contained herein or any consequence arising from it.
