Summary of Contents for All Best Technology S1-qi
-

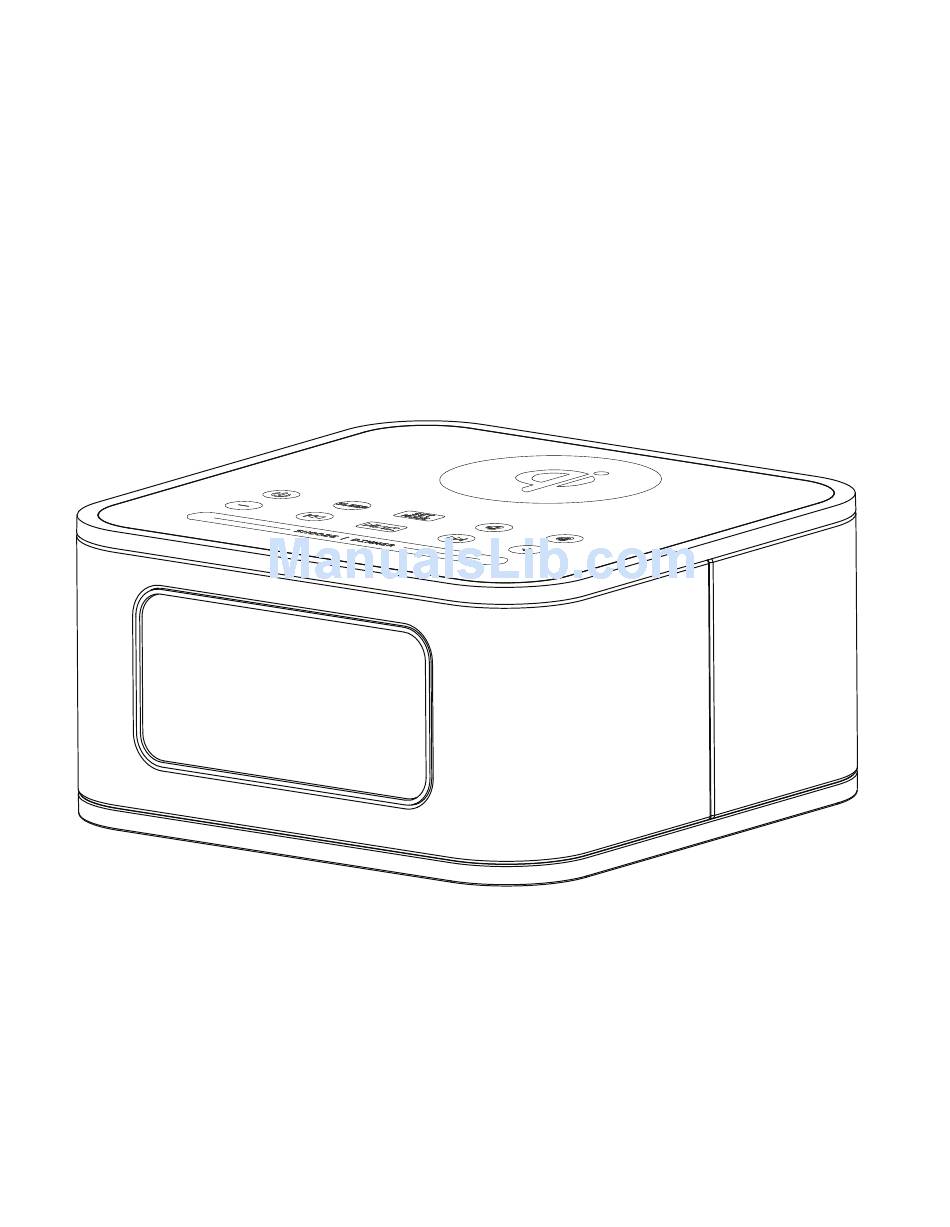

Page 1: User Manual
User Manual S1-qi Bluetooth Speaker System with Alarm Clock Wireless Charging Station... - Page 2 Thank you for purchasing S1-Qi. S1-Qi lets you create the perfect sleeping and waking environments and enjoy outstanding audio performance throughour the day.With S1-Qi user-friendly controls you can simply set the clock and alarm time, or customize everything from the display brightness to the snooze timer, keep it simple,this manual will show you how to do just that.
-
Page 5: Table Of Contents
1. Product Features …………………………………………………… 1 2. What is included ……………………………………………………… 1 3. Specification Parameters …………………………………………… 2 4. Diagram of the LCD Display & the Buttons ……………………… 3 5. Operating Instruction ………………………………………………… 5 5.1 Power ON …………………………………………………………… 5 5.2 Set Time ……………………………………………………………… 5 5.3 Set Alarm Time ………………………………………………………... -
Page 6: Product Features
(6) Stereo speaker, providing superior quality sound (7) USB port allows for traditional USB Charging for most devices on the market (8) Dual Alarms 2. What is included Open S1’s box, and you will find S1-Qi Body Unit Power Adaptor User Manual Audio Cable... -
Page 7: Specification Parameters
3. Specification Parameters - Bluetooth Version: CSR 4.2+EDR - Bluetooth Profiles: A2DP, AVRCP, HFP, HSP - Receive range: within 10 meters - Operation Voltage: DC 5V 3A - Output Power: 3W + 3W - Driver Unit: 4Ω 3W 2 in - Frequency range: 40Hz-20KHz - S/N Ratio: >65dB - Distortion Rate: <1%... -
Page 8: Diagram Of The Lcd Display & The Buttons
4. Diagram of the LCD Display & the Buttons ① ② ③④ ⑤ ⑥ ⑦ ① AUX IN ② Bluetooth ③ Alarm 1 ④ Alarm 2 ⑤ PM ⑥ SLEEP ⑦ SNOOZE HOUR MINUTE ⑧ ⑨ USB Jack AUX IN Jack ⑩Time Setting Volume down Volume up... - Page 9 Wireless Charger Button Function Power ON/OFF SNOOZE 90-80-70-60-50-40-30-20-10-00 Minute Switch Modes; Alarm Time Setting Time Setting of Alarm1 Time Setting of Alarm 2 Volume down/ Adjusting Alarm Time Skip Backwards last Song Bluetooth, Play/Pause, Answer the phone and Hang up Skip Forwards next Song Volume up/ Adjusting Alarm Time SNOOZE, Display Brightness Level (3Levels: 1-2-3)
-
Page 10: Operating Instruction
5. Operating Instruction 5.1 Power ON Connect the power adaptor into the jack on the back of S1-Qi labeled “DC”, and then plug the power adaptor into the wall outlet. The LCD display turns on. Press to turn on the unit. -
Page 11: Alarm Function
will exit the setting in 5 seconds if no operation on any key. Alarm Ring Source - BUZZ Alarm OFF 5.4 Alarm Function 1) When alarm1 is on, icon is flashing in the LCD and the alarm ring tone is becoming larger and larger. Press “SNOOZE” to activate the Snooze function. -
Page 12: Play Music From Mobile Via Bluetooth
7. Play Music from Mobile via Bluetooth 7.1 Operation Press “MODE” to choose Bluetooth mode. Go to mobile settings, turn on Bluetooth and search Bluetooth devices. Connect “Smart one”. When it is successfully paired, you will hear a sound of “DU”. Play music from your mobile now. -
Page 13: Play Music From Aux Jack
8. Play Music from Aux Jack Press “MODE” to switch the mode to AUX IN, pug in the 3.5mm audio cable into the AUX IN jack. Play music now. AUX IN DC 5V TIME 9. Back-up Button Battery The 3V button battery is to retain the alarm/clock setting in case of a power failture. -
Page 14: Wireless Charger
10.Wireless Charger Put the Qi receiver-enabled device on the top of the unit, where the Qi logo is printed. The unit is charging for the device now. -
Page 15: Fcc Statement
FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
