CyClone CTM-1m.DT User Manual

Cyclone timing module
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
CYCLONE TIMING MODULE
USER GUIDE
Version 3.0
May 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTM-1m.DT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CyClone CTM-1m.DT

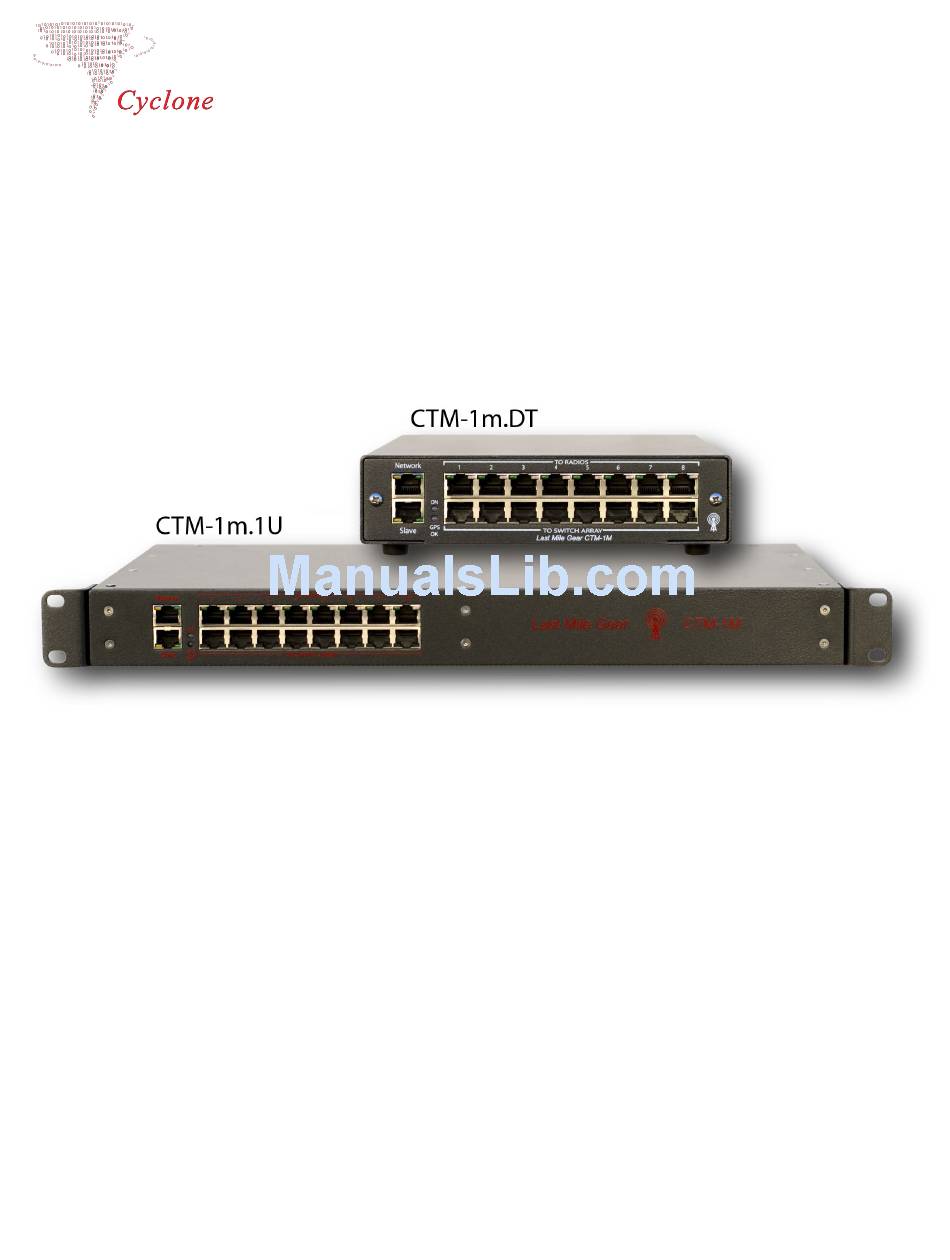

  • Page 1 CYCLONE TIMING MODULE USER GUIDE Version 3.0 May 2007...

  • Page 2: Getting Started

    Getting Started Plug in your CTM using either the primary or secondary power supply port. Connect your PC to the “network” port on the front of the unit via a standard CAT5 cable and your computers NIC card. Once you have established an Ethernet connection, you can access the web interface at the default IP address (169.254.1.1) Using the CTM Control Panel, you can now navigate the various configuration and status pages within the CTM user interface.
  • Page 3 Network & Email Setup IP Address: Displays the current IP address assigned to the CTM. The user can change the IP in the Network Setup page. Default IP setting is 169.254.1.1. Subnet Mask: Displays the current subnet mask set in the CTM. The user can change this parameter in the Network Setup page. Default setting is 255.255.255.0.
  • Page 4 GPS Receiver Status & Environment - Continued Longitude: Displays current latitude position of CTM gathered from the GPS receiver. You must have visability of at least 4 satel- lites before this field will show actual coordinates. Altitude: Displays current altitude of CTM. You will need more than 3 satellites before this field will show the actual elevation. Units of measurement can be changed from the default Metric units to standard in the General System Settings page.

  • Page 5: General System Setup

    General System Setup Site Name: Enter the name you wish to associate with this CTM module. This name will be given when alerts are sent via email. When finished making changes, press the Update Setup button at the bottom of the window to save changes. You can reset the fields that have unsaved changes by pressing the Reset button.

  • Page 6: Send Test Email

    Email Set-up - continued Port Number: This field defaults to Port 25. Unless otherwise specified by your Network Administrator this can remain unchanged. When finished making changes, press the Update Email Setup button at the bottom of the window to save changes.

  • Page 7: Update Firmware

    GPS goes down while in flash loader mode. Radio operation will not be affected as long as the new firmware has the same CPU version as the current firmware revision. Cyclone Timing Module Specifications CTM Unit...
  • Page 8 You’ll see a GPS Sig Loss, then a GPS OK log entry in a row in the logs, this is normal. The sync pulses to the radios are unaf- fected, though. Technical Support for your Cyclone Timing Module is available on the web at www.lastmilegear.com. You can also contact us via Email at support@lastmilegear.com or by telephone at 1(866) 230-9174.

This manual is also suitable for:

Ctm-1m.1u
