Summary of Contents for MIP Telecom Combox

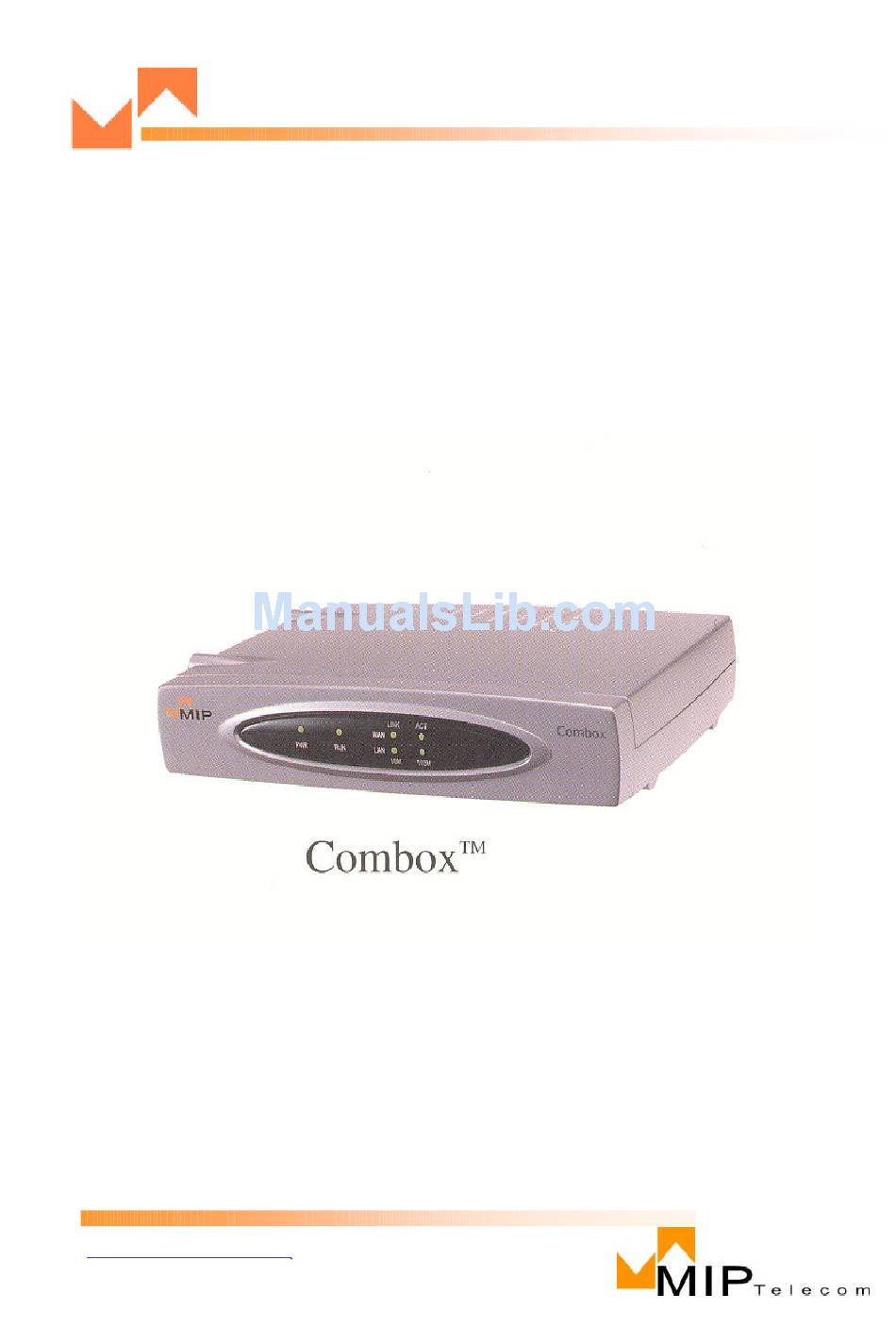

- Page 1 MIP0201000B Combox™ User Manual (Preliminary Release) Multi-services over Internet Protocol WWW.MIPTEL.COM...
-
Page 2: Quick Start Guide
Furthermore, MIP Telecom, Inc. reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of MIP Telecom, Inc. to notify any person or organization of such revisions or changes. -
Page 3: Table Of Contents
Introduction … … … … … … … … ..........4 Related Documentation ............5 Installing Your Combox™ ............5 Installing and Configuring Your Combox™ ......5 Unpacking Your Combox™ ............. 6 Cabling Your Combox™ ............6 Cabling Procedure … … ............6 Configuring Your Combox™... -
Page 4: Introduction
Combox™ to your telephone equipment, and then to your existing Internet connection. Once configured, the Combox™ then allows voice and fax to travel down the same path as your traditional data communications. -
Page 5: Related Documentation
MIP0201000B Introduction The Combox™ has one PSTN, one Phone Line, a 10 Mbps Ethernet LAN interface, and an WAN port. Related Documentation The Combox™ Quick Start Guide is intended to be used by General users. This Quick Start Guide provides the necessary information for an end user to unpack, cable, load, and configure the unit for proper operation. -
Page 6: Unpacking Your Combox
The Cabling Procedure section provides step-by-step instructions for cabling your Combox™ . Cabling Procedure 1. Using the supplied cable, connect the power supply to a live AC outlet, then plug the power supply into the Combox™ as shown in Figure 2.2. WWW.MIPTEL.COM... - Page 7 Combox™ and the other end to the station device. 5. Turn on power to the Combox™ by plugging- in the adaptor. Wait for the Boot LED on the Combox™ to go off before proceeding. This may take a couple of minutes.
-
Page 8: Configuring Your Combox
Select “Use the following IP Address” . Then type in below. (Figure 3.3.6) IP Address: 192.168.1.2 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.1.1 Click OK ( Figure 3.3.7) Go to Combox™ Configuration < Figure 3.3.1> < Figure 3.3.2> < Figure 3.3.3> WWW.MIPTEL.COM... - Page 9 MIP0201000B < Figure 3.3.4> < Figure 3.3.5> < Figure 3.3.6> < Figure 3.3.7> WWW.MIPTEL.COM...
-
Page 10: Combox™ Configuration
You can configure your MIP Telecom Combox™ by using the web configuration page. Follow these steps: Step 1 Make sure that the PC and the MIP Telecom Combox™ are already networked and visible to one another. Step 2 Open your web browser. - Page 11 MIP0201000B Step 4 Select the values for the items that you want to configure. 1. Key in ID:lsgw and Password:lsgw11111 (Figure 4.1) 2. Click Enter Configuration on Configuration Wizard ( Figure 4.2) 3. Provide required info based on your Internet Connection on Configuration Wizard 1/5.
- Page 12 MIP0201000B <Figure 4.4> <Figure 4.3> <Figure 4.5> <Figure 4.6> WWW.MIPTEL.COM...
- Page 13 MIP0201000B <Figure 4.8> <Figure 4.7> <Figure 4.9> WWW.MIPTEL.COM...
-
Page 14: Making A Call
Making a Call Note : The dial plan described in these instructions is the default plan. You can configure your MIP Telecom Combox™ to use a different plan. Follow these steps to make a call: Step 1 Lift the telephone handset. -
Page 15: Limited Warranty
MIP0201000B Limited Warranty MIP Telecom, Inc. (“MIP”) warrants that its products will be free from defects in material or workmanship for a period of one years from the date of purchase, or if proof of purchase is not provided, one years from date of shipment. -
Page 16: Fcc Declaration
MIP0201000B FCC Declaration NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
