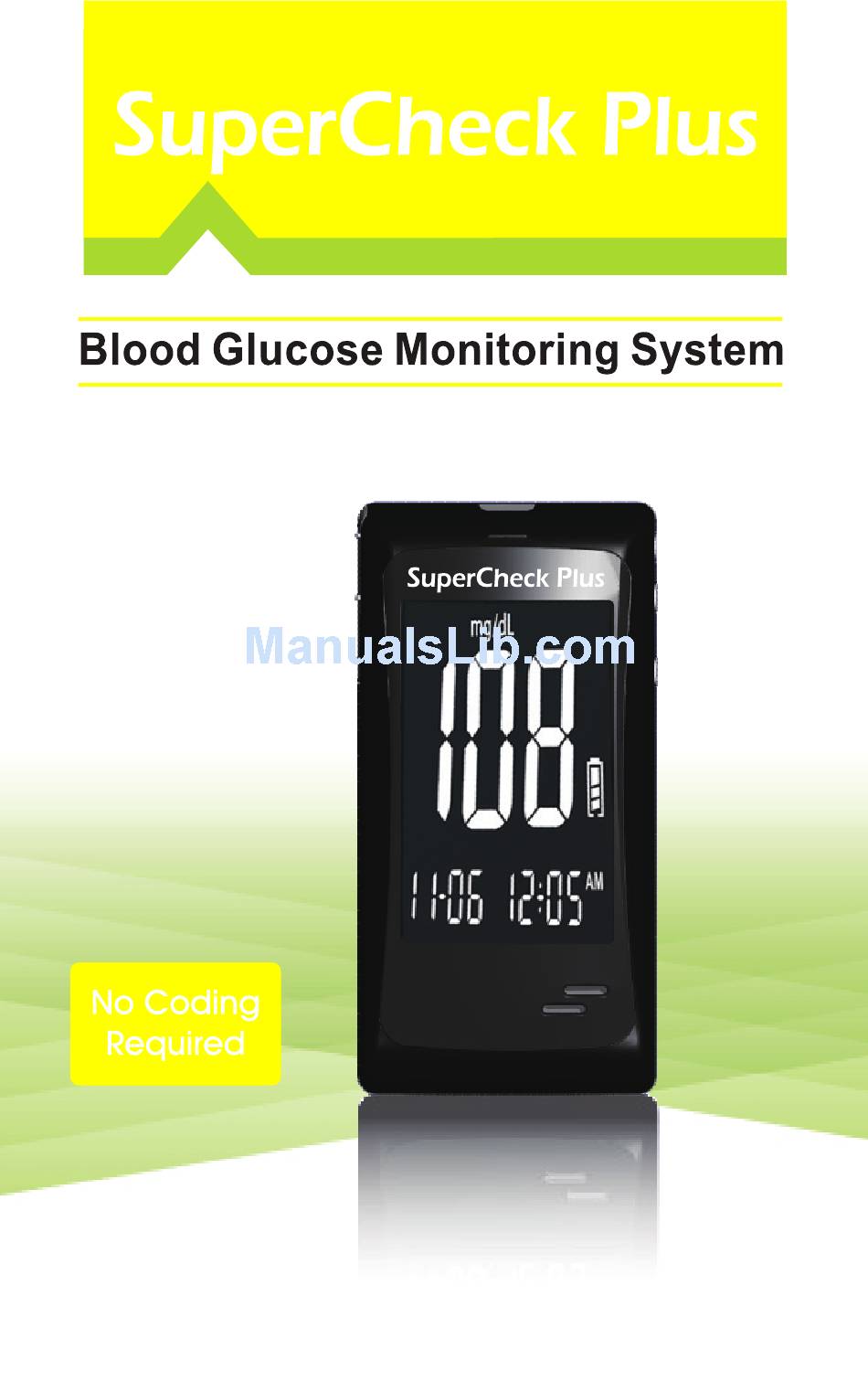

Model: 5228B
USER GUIDE
5228BT-M01A1
Rev.date:11/2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperChek Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BTM SuperChek Plus

Summary of Contents for BTM SuperChek Plus

  • Page 1 Model: 5228B USER GUIDE 5228BT-M01A1 Rev.date:11/2013...

  • Page 2: Explanation Of Symbols

    Explanation of symbols: Do not re-use Use-by date Batch code In vitro diagnostic medical device. Temperature limit Caution (refer to accompanying documents). Please refer to safety-related notes in the manual accompanying this instrument. Consult instructions for use. Keep away from sunlight. Authorised representive in the european community.

  • Page 3: Table Of Contents

    1. Contents Section Topic Page 1. Contents 2. Introduction 3. Appearance and Key Functions of the meter 4. Alternate Site Testing 5. Safety Information 6. Quick Testing Instructions Preparing for Testing 7. Installing the Battery 8. Settings (Date/Time/Alarm/Measuring Unit/ 12-16 Memory Deletion ) 9.

  • Page 4: Introduction

    2. Introduction to the System Intended Use / Indications for Use The SuperCheck Plus Blood Glucose Monitoring System is intended for use in the quantitative measurement of glucose in fresh capillary whole blood from the finger and the forearm and venous whole blood. It is intended for self-testing by people with diabetes mellitus at home and healthcare professionals as an aid in monitoring the effectiveness of a diabetes control program.
  • Page 5 SuperCheck Plus The starter kit of Blood Glucose Monitoring System includes the following items: SuperCheck Plus Glucose Meter with 2 AAA batteries 2.U ser Guide 3.L og Book 4.C arrying Case SuperCheck Plus Glucose Test Strips SuperCheck Plus (Medium) Control Solution 7.S terile Lancets 8.L ancing Device 9.P ackage Inserts for Test Strips, Control Solution,...

  • Page 6: Appearance And Key Functions Of The Meter

    3. Appearance and Key functions of the meter 1.Test strip slot - When the strip is inserted into the slot, the meter will automatically turn on. 2. LCD Display - Guide you through the test using symbols and simple messages. 3.

  • Page 7: Alternate Site Testing

    4. Alternate Site Testing (AST) What is AST? AST is the sampling from anatomical sites (parts of the body) other than the fingertip (i.e. forearm) to check the blood glucose levels. This system allows you to test on the forearm with the equivalent results to fingertip testing.
  • Page 8 Testing Procedure for AST 1.Please unscrew the lancing device by turning the end cap counter clockwise. A clear cap will come with the package of a meter kit or a lancing device. The clear cap on the lancing device will make it easy for you to get a drop of blood for AST.
  • Page 9 6.Massage the selected area gently to increase blood flow to the puncture site. Clean the test location with an alcohol wipe or with soap and water. 7.O pen the test strip vial. Take one new test strip out of the vial and quickly recap the vial to keep air out.
  • Page 10 10. Wait for a few seconds until the blood drop forms. Make sure you have sufficient blood to fill the small window of the test strip. For individuals who experience difficulty in getting sufficient blood for a test, it may be helpful to rub the puncture site a little longer before using the lancing device.

  • Page 11: Safety Information

    5. Safety Information Please use this device only for the intended use described in this user guide. Before using this system to test your blood glucose please read instructions thoroughly and practice the test when you first use this system. Do a quality check on the system following the instructions and consult with your healthcare professionals for questions or problems.

  • Page 12: Quick Testing Instructions

    6. Quick Testing Instructions (For detailed instructions start on page 17 for Control Solutions and page for Blood Testing.) 1.Insert a new test strip into the meter while the meter is off. The meter will turn on automatically. A blinking blood icon will be displayed on the screen.

  • Page 13: Installing The Battery

    7. Installing the battery 1.Turn off the meter by pressing “M” button and hold for 2 seconds before replacing the batteries. Slide down the battery cover on the back of the meter by pushing the cover in the direction of the arrow and put the cover aside.

  • Page 14: Settings (Date/Time/Alarm/Measuring Unit/Memory Deletion )

    8. Settings (Date / Time / Alarm / Measuring Unit / Memory Deletion) The LCD screen will show as below: (1)MeasurementUnits (2)Memory (3)Setting (4)Testflag (5)Blooddropicon (6)BatterySymbol (7)DayAverage (8)Alarm Reminder (9)Month (12)Minute (10)Day (11)Hour 1.Appears with the test result either in mg/dL or in mmol/L. 2.Appears when you recall the memory.
  • Page 15 Set the Year - With the meter off, by pressing the M key and hold for 2 seconds, you will enter the setting modes, press C key to adjust the year until the desired year is displayed  and then press the M key to confirm ...
  • Page 16 Set the Hour - Press C key to adjust the hour until the desired hour appears on the screen and then press the M key to confirm the setting. You will then see the minute segment is flashing on the ...
  • Page 17 Set the measurement unit - Press C key to toggle between mg/dL and mmol/L measurement units. Press M key to confirm the setting. You will see a “dEL” displayed in the center of the screen. The unit of measurement -mmol/L is the standard unit of measurement in the Europe.
  • Page 18 Note: Your meter can show results either in “mg/dL” or “mmol/L”units. It is very important to use the correct unit of measurement to properly manage your diabetes. If you live in the Europe, you should use mmol/L; your results will always have a decimal point.

  • Page 19: Running A Control Solution Test

    9.Running a Control Solution Test IMPORTANT: Always make sure you press C key for Control Solution test, otherwise the control solution test result will be stored in the memory, and affect your AVG results. 1. Insert a test strip into the meter while the meter is off.
  • Page 20 IMPORTANT!!! 1.You must press the C key to distinguish the control solution test from the blood glucose test. Do not perform the blood test in Control Solution mode.(If you perform the blood test in Control Solution mode, the test result will not be stored in the memory.) 2.

  • Page 21: Running A Blood Glucose Test

    10.Running a Blood Glucose Test 1.Please unscrew the lancing device by turning the end cap counter clockwise. 2.Insert a new lancet firmly into the lancet holder. 3.Twist off the protective tip of the lancet. 4.Close the end cap of the lancing device as shown.
  • Page 22 6.Open the test strip vial. Take one new test strip out of the vial and recap the vial quickly and firmly. 7.Insert the test strip into the meter while the meter is off. The meter will turn on automatically. A blinking blood icon will be displayed on the screen.
  • Page 23 9.Apply a small blood drop to the front edge of the test strip, and the blood should be pulled into the confirmation window before the meter begins to count down. Do not push your finger against the test strip or try to apply a smeared blood sample.

  • Page 24: Recalling The Memory And Viewing The Average

    11. Recalling the Memor y and Viewing the Average A. Using the Meter Memory The test results for blood sample will be stored in the memory automatically. The meter can store up to 500 of the most recent test results. You can also view the average of test results for various periods of 7, 14, 28, 60 and 90 days.
  • Page 25 C. Viewing the Average (AVG) of Test Data in Memory 1. To display the average (AVG) test result, please turn meter off. Press C and M keys at the same time and hold for about 2 seconds, wait for AVG displayed on the screen, then release the two buttons.

  • Page 26: Expected Values

    12.Expected Values Reference Blood glucose levels normally will vary from time to time depending on food intake, medication dosages, health, stress or exercise. Consult your physician or healthcare professional for the target glucose value appropriate for you. Expected plasma blood glucose values for normal, nondiabetic adults are as follows.

  • Page 27: Maintenance Of Your System

    If there has no response with 90 seconds, the Bluetooth function will be turned off automatically. For more information, please refer your APP service. Note: 1. The meter will not be able to upload data when Bluetooth function is not turned on. 2.

  • Page 28: Troubleshooting

    15.Troubleshooting : Following is a summary of all Error Messages. These messages help to identify certain problems,but do not appear in all cases when a problem has occurred. Improper use may cause an inaccurate result without producing an error message or a symbol.In the event of a problem,refer to the information in the table under Solution.
  • Page 29 Problem Possible Cause Solution The meter is operating Repeat the test after the in an ambient The meter displays meter and strip are placed in temperature below an E_1 error a warmer environment and 10 ℃ or 50℉ which is message.

  • Page 30: Customer Service

    16.Customer Ser vice If you need assistance with your SuperCheck Plus Glucose Monitoring System, please contact: Biotest Medical Corporation No. 3-2 Chien-kuo Road, TEPZ Tantzu, Taichung 427 Taiwan R.O.C. TEL: 886-4-2532 6668 E-mail: info@mail.biotestsystems.com For questions related to your health condition, please call your doctor or healthcare professional.

  • Page 31: Limitations

    17.Limitations 1. No Neonatal use Do not use for neonatal blood glucose testing. 2. H ematocrit range Hematocrit in the range of 20~60% has been shown not to affect the glucose results. If you do not know your hematocrit level, consult your healthcare professional.

  • Page 32: Specifications

    18.Specifications Test: Glucose Sample: Whole Blood Principle of the test method: A mperometric, FAD- glucose dehydrogenase Test sites: Fingertip, forearm Measurement time: 5 seconds Measurement Range: 1 .1~33.3mmol/L ( 20~600 mg/dL). Batteries: 2 x AAA 1.5 V Alkaline 24A LR03 Operating Condition: 10~40℃(50-104℉) 20~80% RH (non-condensing) Storage/Transportation Condition:...

  • Page 33: Ordering Supplies

    19.Ordering Supplies To order supplies, please contact the Manufacturer : Biotest Medical Corporation No.3-2, Chien-kuo Rd., TEPZ Tantzu, Taichung 427, Taiwan, R.O.C. E-mail: info@mail.biotestsystems.com 20. War ranty Infor mation Your Glucose Meter is SuperCheck Plus warranted to be free of defects in materials and workmanship for one year from the date of the original purchase.
  • Page 34 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 35 BiotesT Medical Corporation No. 3-2,Chien-kuo Road,TEPZ Tantzu, 427 Taichung, Taiwan ROC. Tel : 886-4-25326668 Fax: 886-4-25326528 MEDNET GmbH Borkstrasse 10, 48163 Münster Germany 0537...
