Summary of Contents for MobileVision MV100
-
Page 1: Installation Manual

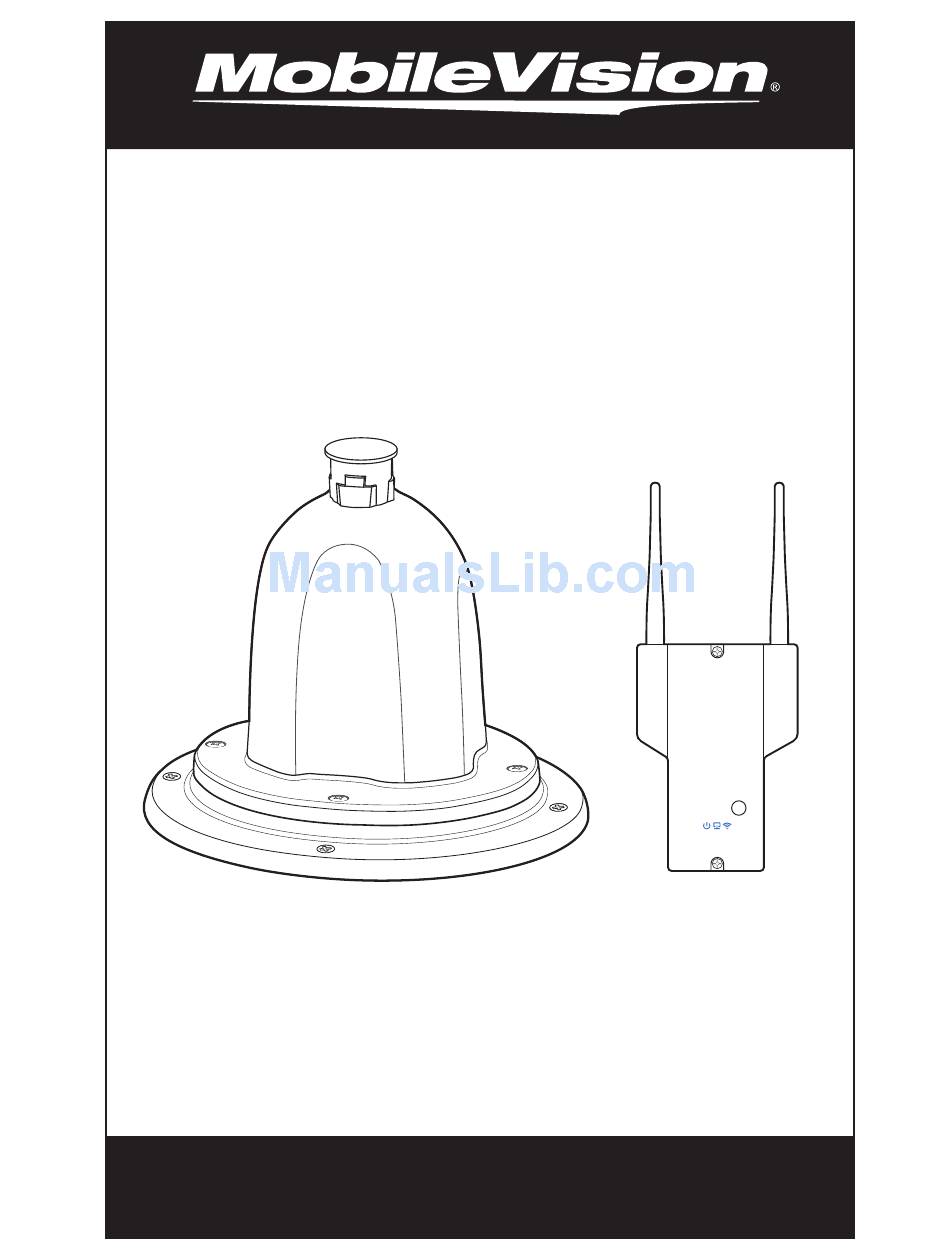

Wireless or Cabled WiFi System Installation Manual MV2458 Router WiFi Extender Control Unit Model: MV100 For Technical Assistance, please call (800) 638-3600, or visit www.magnadyne.com... - Page 2 MV100 WiFi System Installation Manual Thank you for purchasing the MobileVision MV100 wireless WiFi extender kit. The MV100 is designed for easy installation with a professional appearance in your RV. To install the MV100 you will need a basic understanding of installing 12 volt devices in your RV. If you are...
-
Page 3: Table Of Contents
Installation Options The MV100 is designed to provide 2 methods of installation to best fit the unique needs of the RVs design and layout. Be sure to read through the instructions and determine your desired method of installation before you begin. -
Page 4: Parts And Tool List
Parts and Tool List Kit Includes Cover Plate Cover Plate Screws (2) Blue Power Cord MV2458 Router MV2458 Router Control Unit Screws (2) Control Unit Ceiling Plate Ceiling Plate Screws (2) MV2400 Power Switch WET-15 Shielded Ethernet Cable MV2400 Extender Housing #10-24 UNC Threaded Machine MV2400... - Page 5 Recommended Tools and Supplies Phillips Roof Sealant Wire Strippers 20 or 18 Gauge Wire Screwdriver Connectors (6) Surface Cleaner Drill (i.e. Wire Nuts)
-
Page 6: Mv2458 Router Control Unit Wireless Installation
MV2458 Router Control Unit Wireless Installation Disconnect the RV power source before beginning installation, and reconnect power after installation is complete. MV2458 Router Control Unit TV Distribution Wall Plate (to the Right) Satellite ON OFF TV 1 ON = TV OFF = Cable 1/4”... - Page 7 Back of TV antenna distribution wall plate Blue Power Cord MV2458 Router Control Unit Connectors Black Attach the Blue Power Cord’s red wire to a 12V(+) Mount MV2458 Router Control Unit to wall near the power source and the black wire to a 12V(-) ground Blue Power Cord as pictured using MV2458 Router and secure with connectors.
-
Page 8: Mv2400 Extender Wireless Installation
MV2400 Extender Wireless Installation Hole Option A (Rooftop) Power Source (i.e. fan) Hole to Extender MV2400 Switch Extender (Inside RV) CAUTION DO NOT drill a hole into the roof UNTIL you have verified the exterior mounting location of the MV2400 Extender Housing. Be sure to find a location to mount the housing that is flat and away from large items like air conditioners that may cause interference. - Page 9 Hole Option B (Rooftop) Power Source (i.e. fan) Extender Hole to MV2400 Switch Extender (Inside RV) In this example the hole to the roof (for routing the power wires to the MV2400 Extender) is located directly above the hole drilled in the ceiling that is used for installing the Extender Switch.
- Page 10 MV2400 Extender Wireless Installation - Cont. (Rooftop) 1/2” (Back Side of RV Ceiling) (Inside RV) (Rooftop) (Back Side of RV Ceiling) (Inside RV) After you have determined the location of the MV2400 Drill a 1/2” hole from the exterior roof where the Extender Housing on the roof, drill a 1/2”...
- Page 11 Ceiling Plate Screw Nut Tightly Extender Switch 1) Unscrew the nut from Extender Switch. 2) Route wires of Extender Switch through Ceiling Plate and Nut. 3) Attach the Extender Switch to the Ceiling Plate by screwing Nut back onto Extender Switch. Do not mount the Ceiling Plate at this point.
- Page 12 MV2400 Extender Wireless Installation - Cont. Connectors (Rooftop) Wires from 12V(-) from RV Extender Switch RV Power Source (Back Side of RV Ceiling) 12V(+) from RV (Inside RV) Attach the red and black Switch Wires from the Extender Switch to the selected 12V power source using Connectors.
- Page 13 Self Tapping Screws #8 Bottom Mount Roof 1) Center the Extender Housing Bottom Mount over drilled hole. 2) Screw the Extender Housing Bottom Mount to roof with Self Tapping Screws (#8). 2nd Level 1st Level Caulking Area Represented in Orange Caulk the Extender Housing Bottom Mount on 1st Level (shown in orange area).
- Page 14 MV2400 Extender Wireless Installation - Cont. Black to Black Yellow to Red 1) Attach yellow 12V(+) wire from Extender Switch to red wire 12V(+) of MV2400 using a Connector. 2) Attach black 12V(-) wire from Extender Switch to black 12V(-) wire of MV2400 using a Connector. WARNING - Make sure the O-ring #10-24 UNC is in place &...
- Page 15 (Rooftop) (Back Side of RV Ceiling) (Inside RV) Attach the Ceiling Plate to the ceiling with the Ceiling Plate Screws. Router’s front power switch Extender Switch 1) Reconnect RV power source for MV2458 Router Control Unit and MV2400 Extender. 2) Turn on the power to the MV2400 Extender using the Extender Switch. 3) Turn on the power to the MV2458 Router Control Unit using the Router’s front power switch.
-
Page 16: Mv2458 Router Control Unit Ethernet Installation
MV2458 Router Control Unit Ethernet Installation MV2400 Note: You do not need a Switch MV2458 and power supply for the Satellite MV2400 Extender as it will be ON OFF TV 1 ON = TV OFF = Cable powered by the Ethernet cable. Choose a way to route an Ethernet cable from the MV2400 to the MV2458. - Page 17 MV2458 Control Unit 1) Bring Blue Ethernet and Blue Power Cables Mount Router Control Unit to wall near the through center hole of new cover plate. new cover plate as pictured using included screws. 2) Screw new cover plate to wall using original mounting holes.
-
Page 18: Mv2400 Extender Ethernet Installation
MV2400 Extender Ethernet Installation (Rooftop) (Back Side of RV Ceiling) (Inside RV) Drill a 1/2” hole from the exterior roof where the Extender Housing will be mounted over. This hole will be used to route the WET-15 Shielded Ethernet Cable from the MV2458 Router Control Unit to the MV2400 Extender in the housing. - Page 19 Remove power cable plugged into MV2400 Extender. Plug Ethernet cable into MV2400 Ethernet port. Zip Tie the Ethernet Cable to the mount as shown to reduce rattling. WARNING - Make sure the O-ring #10-24 UNC is in place & screws are tight. Threaded Machine Screws...
-
Page 20: Warranty Policy
Defective merchandise should be returned to the original point of purchase or secondly, to Magnadyne Corporation, 1111 W. Victoria Street, Compton CA 90220. Return Authorization must be obtained before sending, or merchandise may be refused. Copyright © 2017 Magnadyne Corp. MOBILEVISION-MV100-IS Rev. A...
