Instructions for use
Hartenberger
Underwater Hand Lamp
mega compact
mega compact D2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mega compact and is the answer not in the manual?

Questions and answers

Summary of Contents for Hartenberger mega compact

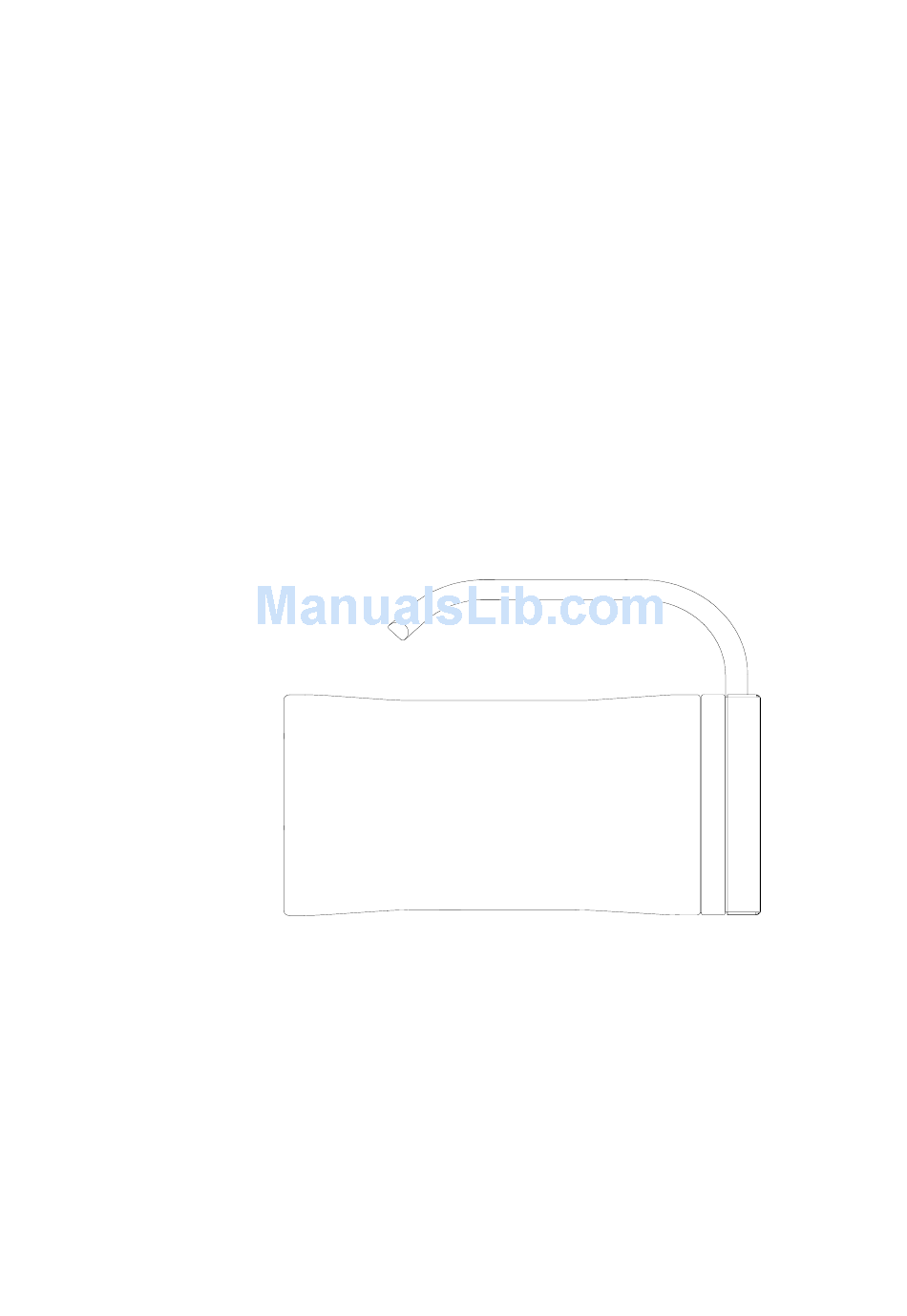

  • Page 1 Instructions for use Hartenberger Underwater Hand Lamp mega compact mega compact D2...
  • Page 2: Table Of Contents

    Hartenberger Underwater Lamp mega compact / mega compact D2 Instructions for use CONTENTS ................2 AFETY ARNING ..................2 UARANTEE ..................2 PPLICATIONS ................3 RTICLE ESCRIPTION ..............4 ECHNICAL PECIFICATIONS ................5 CREW ITTING ..................
  • Page 3: Article Description

    Hartenberger Underwater Lamp mega compact / mega compact D2 Instructions for use ARTICLE DESCRIPTION EXTERNAL 1. Front Seal 2. Housing/Body 3. Rear Screw Fitting 4. Button pad – (minus) 5. Cover screw 6. Transport lock 7. LCD Display 8. Button pad + (plus)
  • Page 4 Hartenberger Underwater Lamp mega compact / mega compact D2 Instructions for use OWER 1. Halogen Bulb 2. Reflektor 3. O-Ring 4. Charging Socket 5. Cell Pack 6. Plug-In Connection Diagram 3 OWER 1. D2 Gas discharge xenon lamp 2. Reflektor 3.
  • Page 5 Hartenberger Underwater Lamp mega compact / mega compact D2 Instructions for use ECHNICAL PECIFICATIONS NMH C 14.4 / 4,5A PPROX URN TIME INCL WARNING BLINKS IN MINUTES WITH Halogen Bulb 100W* D2 35W** Time of use at 25% setting 390 Min.
  • Page 6: Power Pack

    Hartenberger Underwater Lamp mega compact / mega compact D2 Instructions for use CREW ITTING PENING THE SCREW FITTING The housing is opened by unscrewing the fitting anti-clockwise, (thread length approx. 10 mm [3/8“]). Whilst opening the housing, it should be held in an upright position, thus preventing the power pack from inadvertently falling out.
  • Page 7: Preparation For Use

    Hartenberger Underwater Lamp mega compact / mega compact D2 Instructions for use two stowage housings for spare halogen bulbs. The charging socket is located behind an opening on the outside of the power pack. On the rear side of the power pack are the 4 contact plugs for the electronic module.
  • Page 8 Hartenberger Underwater Lamp mega compact / mega compact D2 Instructions for use To operate the lamp, individual preferences can be selected in different programmes (except for use with D2 gas discharge module). The programme set appears in the top right hand corned of the display when both switches are pressed simultaneously.
  • Page 9 Hartenberger Underwater Lamp mega compact / mega compact D2 Instructions for use Constantly turning the lamp on and off will also reduce the life expectancy of the bulb. IGITAL DISPLAY The percentage power setting of the halogen bulb is shown in the top line of the display.
  • Page 10 Hartenberger Underwater Lamp mega compact / mega compact D2 Instructions for use imminent end of the burn time and that the display is showing an incorrect value. When the lamp is being used with a standard halogen bulb, the user will be warned by the lamp blinking 6 times and subsequently automatically switching over to 25% power.
  • Page 11 Hartenberger Underwater Lamp mega compact / mega compact D2 Instructions for use data in the memory shows correct handling of the cells, a warranty repair or a fair offer will be made. ISPLAY CORRECTION • If the display does not show 100% charge status after a correct...
  • Page 12 Hartenberger Underwater Lamp mega compact / mega compact D2 Instructions for use sighted. VOLTAGE DIMMER The HLX bulbs which we use have a much greater efficiency than standard halogen bulbs. Using a 12 cell power pack, we have a power supply of 14.4 volts.
  • Page 13: Transport

    Hartenberger Underwater Lamp mega compact / mega compact D2 Instructions for use During the rinsing, the switches must be frequently operated to ensure contamination (salt water and/or sediment) is rinsed out of the mechanism. • Check the lamp immediately after the dive for evidence of a possible flooding of the housing.
  • Page 14: Charging

    Hartenberger Underwater Lamp mega compact / mega compact D2 Instructions for use Regularly check the cells for signs of corrosion or gas leakage, (the protective skin showing signs of bubbling, floury or white residue between the cells or in the housing, corrosion around the charging socket.) Should you discover signs of leakage or corrosion, return the...
  • Page 15 Hartenberger Underwater Lamp mega compact / mega compact D2 Instructions for use contaminated with dust or dirt, then we recommend that the cell pack should be removed from the rear screw fitting, and that the housing is subsequently closed protecting the O-Rings and the sealing surfaces which would otherwise be exposed to possibly contamination.
  • Page 16 Hartenberger Underwater Lamp mega compact / mega compact D2 Instructions for use Do not operate the lamp immediately after the charging cycle is completed. Do not point the lamp at yourself or in the direction of other persons. Maximum cells Charging times using an Off-Shore I/12 Charger for fully discharged...
  • Page 17: Care And Maintenance

    Hartenberger Underwater Lamp mega compact / mega compact D2 Instructions for use ARE AND AINTENANCE OUSING We recommend that from time to time the housing surface is impregnated with silicone. The chance of calcium depositing on the surface of the lamp is reduced and the scratch resistance properties of the housing surface are also improved.
  • Page 18: Fault Diagnosis

    Hartenberger Underwater Lamp mega compact / mega compact D2 Instructions for use AULT IAGNOSIS Problem Cause Action to be taken Water enters the Defective or contaminated Abort the dive as soon as is safely housing: O-Ring. possibly. Open the lamp.
  • Page 19: Accessories

    Hartenberger Underwater Lamp mega compact / mega compact D2 Instructions for use PARE ARTS O-Ring Dimensions Elasticity Material Glass 68x3.0 50°shore Viton, Blue Window LCD 58x3.5 50°shore Viton, Blue Screw Fitting 68x3.0 50°shore Viton, Blue Screw Fitting 68x2.0 50°shore Viton, Blue Reflektor unit 68x3.0...
