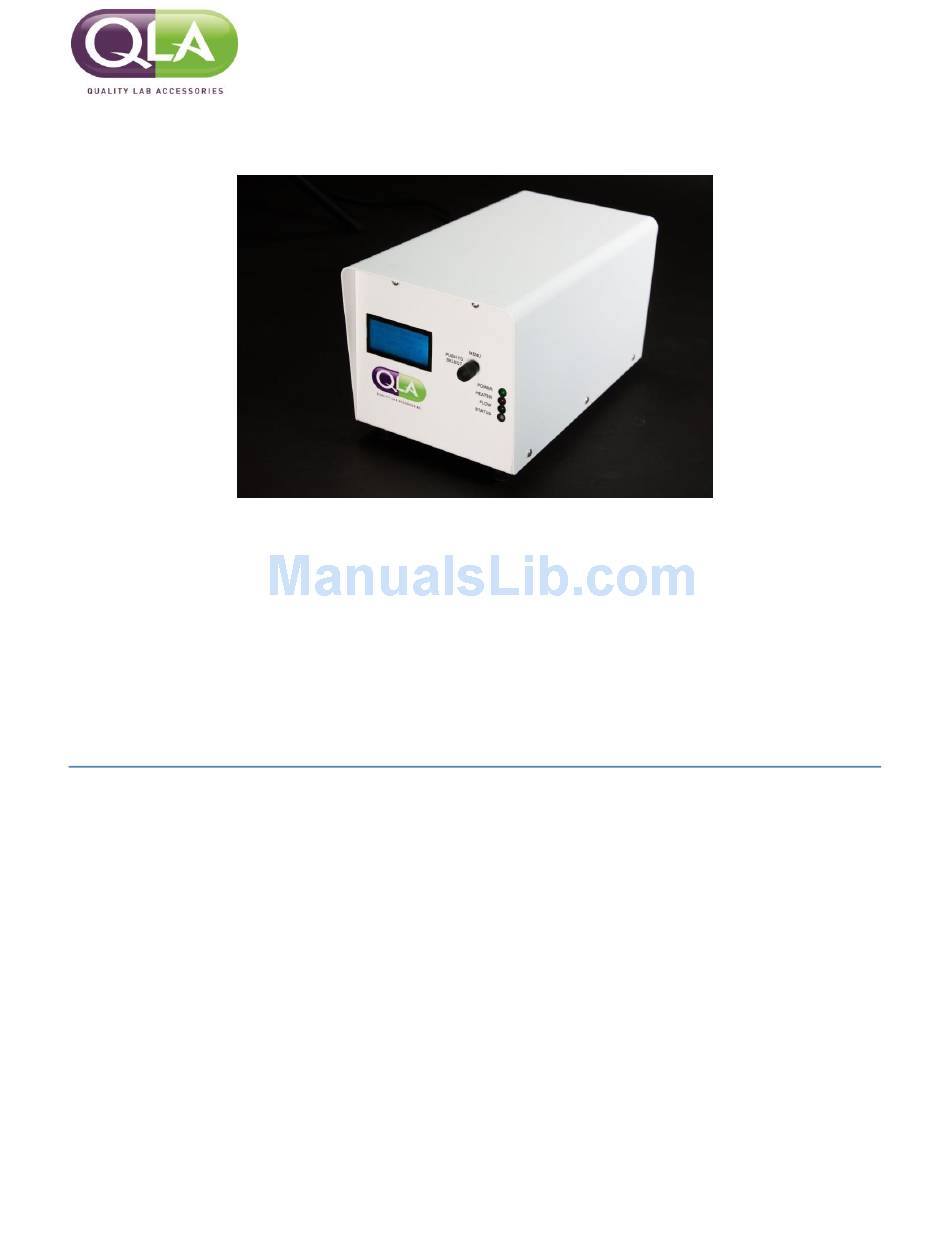

Operating Instructions HC1000 Heater / Circulator P/N HC1000 Revision 2.x 07/03/17 Prepared by: Quality Lab Accessories, LLC 100 Emlen Way, Suite 108 Telford, PA 18969... -
Page 2: Table Of Contents
Table of Contents General Information ........................4 Introduction ..........................4 Safe Operation …………………………………………………………………………………4 General Safety ......................4 1.2.1 Electrical Hazards ....................4 1.2.2 Safety and Information Symbols .................. 5 Product Specifications ......................5 Unpacking ............................6 Overview ............................6 Front Panel ..........................7 Installation ............................ - Page 3 Revision History Rev. Description Revised By Revised On Approved By Approved On INITIAL RELEASE JUSTIN M. 07/11/17 Part number, Rev 2.x Page 3...
-
Page 4: General Information
General Information Introduction Thank you for purchasing the QLA HC1000 Heater / Circulator. The HC1000 has been precision engineered and designed to create the optimal testing conditions as described in the monograph, and be compatible with all dissolution baths. Safe Operation The HC1000 Heater / Circulator has been designed to operate safely with any dissolution machine. -
Page 5: Safety And Information Symbols
Indicates the potential for personnel or equipment damage. Refer to accompanying notes. Stop Indicates an important note associated with procedure or step. Refer to accompanying notes. Product Specifications Parameter Specification Model # HC1000 30°C – 45°C Range Accuracy ±.1°C Voltage 115V Flow Rate 2.7g / 1 min. -
Page 6: Unpacking
Unpacking The HC1000 Heater / Circulator has been packaged to protect the unit from shipping and handling. Please complete the following steps to unpack your HC1000 Heater / Circulator: 1. Carefully remove all items from shipping container. 2. Check all items for damage that may have occurred during shipping. If any damage to the unit is evident, please contact both your shipping provider and Quality Lab Accessories. -
Page 7: Front Panel
Select a highlighted feature by depressing the control dial. Covers retained by fasteners which require the use of a tool to remove may only be opened by QLA trained service professionals, or QLA authorized engineers. Part number, Rev 2.x Page 7... -
Page 8: Installation
10 amps. A circuit breaker triggers an automatic shutdown of the unit if a power surge occurs. Simply switch off and restart the unit. If the problem persists, contact a QLA Lab Services Professional or authorized QLA engineer. -
Page 9: Liquid Connections - Single Bath System
OUTLET fittings on the rear panel of the unit. Be sure that the hose coming from the inlet of the water bath is attached to the fitting on the rear of the HC1000 unit labeled OUTLET, and that the hose coming from the outlet of the water bath is attached to HC1000 fitting labeled INLET. -
Page 10: Liquid Connections - Dual Bath System
Secure the hose clamps over the fittings. To avoid damage to the tubing, avoid overtightening. 6. Repeat steps 4 - 5 to attach the HC1000 Heater / Circulator INLET fitting to the water bath outlets. -
Page 11: Operations
After priming, the flow sensor will trigger an automatic shutdown of the system if the flow rate drops below .5 G per minute. Simply switch off and restart the unit. If the problem persists, contact a QLA Lab Services Professional or authorized QLA engineer. -
Page 12: External Temperature Probe Calbration
3. Once the desired temperature is located, select it with the control dial. 4. Your desired temperature is now set. 5. You can now highlight and select RUN from main menu to start your HC1000 Heater / Circulator. 6. If your desired temperature is higher than the current bath temperature, the red HEATER light will illuminate, signifying that the heater is active. -
Page 13: Data Logging
Data Logging The HC1000 has the ability to log temperature, with respect to time and date. To enable the data logging feature, follow the procedure below. 1. Using the control dial, highlight and select CONFIGURE. 2. From the Configure menu, select Bath Options. -
Page 14: Quaification And Validation
Prior to shipment, the HC1000 Heater / Circulator is checked for accuracy and efficiency. Warranty The HC1000 Heater / Circulator is warranted to be free from defects in materials and workmanship under normal use and service for a period of (1) year from the date of purchase as shown on the purchase order receipt.
