D mode EVDO draft 1.book Page i Friday, January 12, 2007 8:18 PM

Dual Mode

Communication Terminal

DM1200E/DM1250E

(CDMA-EVDO)

User Guide

Table of Contents

Need help?

Do you have a question about the DM1200E and is the answer not in the manual?

Questions and answers

Summary of Contents for Waxess DM1200E

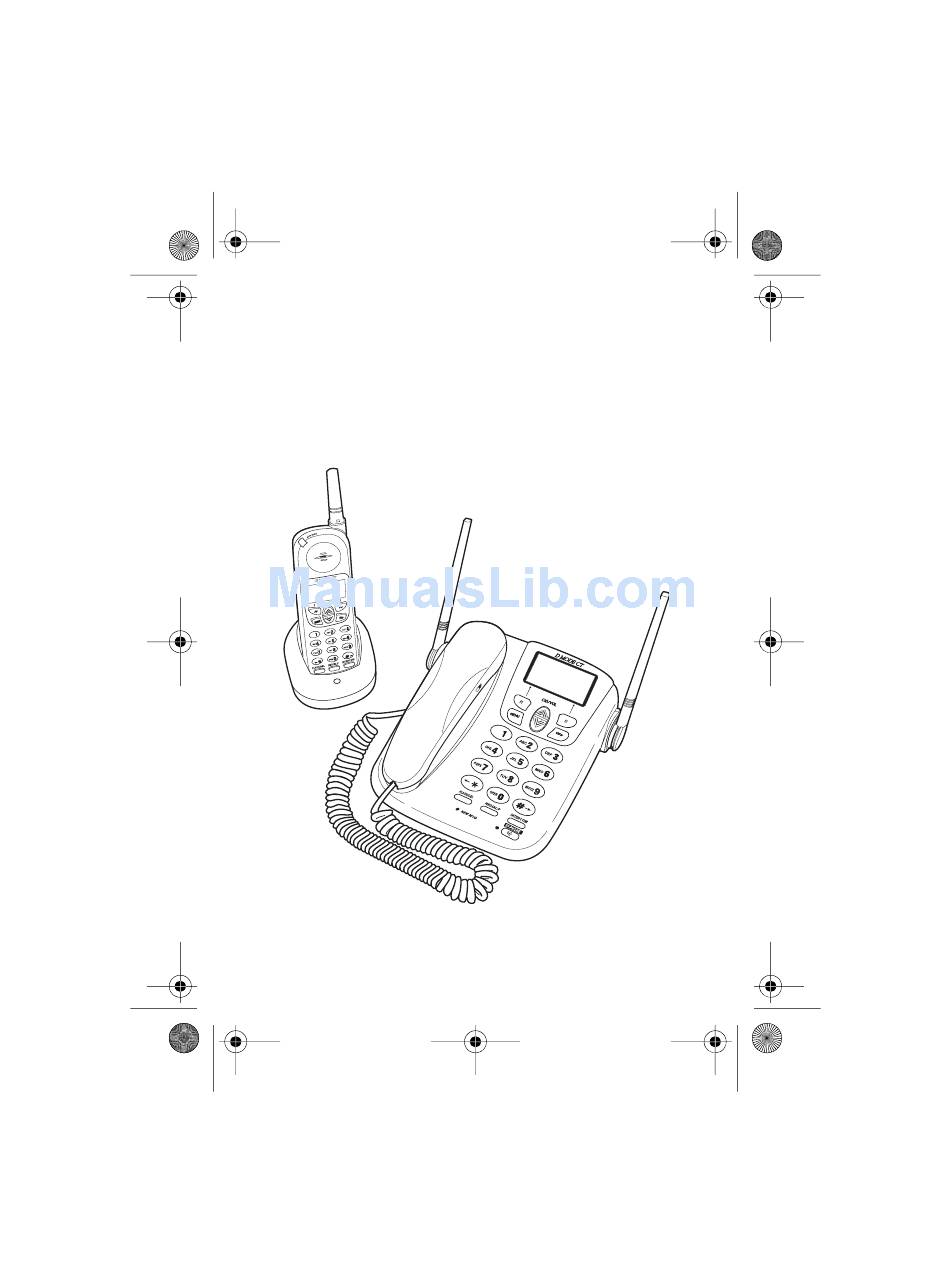

Page 1 D mode EVDO draft 1.book Page i Friday, January 12, 2007 8:18 PM Dual Mode Communication Terminal DM1200E/DM1250E (CDMA-EVDO) User Guide...
Page 2 Function Keys Up/Down keys 10 Menu and Off keys Scroll Left 12 Flash/Delete key 13 Redial/Pause key 14 Headset Jack Scroll Right 16 Intercom 17 Handset Microphone 18 Handset Charging Contacts D Mode CT User Guide Copyright © 2007 Waxess...
Page 3 28 New Message LED 29 Flash Key 30 DC IN 9V Jack 31 TEL LINE Jack 32 Corded Handset Jack 33 Battery cover 34 Data Access Port (for use with DM120UB Data Accessory Kit) D Mode CT User Guide Copyright © 2007 Waxess...
Page 7: Get Ready
• Keep the base and handset away from sources of electrical noise, such as motors and fluorescent lighting. • Leave enough room to raise both base antennas fully vertical. D Mode CT User Guide Copyright © 2007 Waxess...
Page 8 4 Raise both antennas to a vertical position. 5 Find the base AC adaptor (the larger adaptor, Model number AD-48091000), and connect it to the DC IN 9V jack and to a standard 120V AC. D Mode CT User Guide Copyright © 2007 Waxess...
Page 9: Wall Mount
6 Connect the handset cord to the jacks on the handset and base, then set the corded handset in the cradle. 7 On the base, remove the handset retainer, flip it over, then replace it. D Mode CT User Guide Copyright © 2007 Waxess...
Page 10 Backup power activates immediately when the normal power supply to the base is cut off. 1 Verify power is disconnected from the base. 2 Open the battery cover on the bottom of the base. D Mode CT User Guide Copyright © 2007 Waxess...
Page 11 • Be sure to remove at least one battery when disconnecting power • The indicator on the base menu Battery Level screen may not show true battery condition unless all five batteries are installed D Mode CT User Guide Copyright © 2007 Waxess...
Page 12: Standby Screen
If you have connected with your cellular service provider, the date and time may be set automatically. If not, see “Time and date” on page 12 to set the date and time manually. D Mode CT User Guide Copyright © 2007 Waxess...
Page 13 Locate the three screws attaching the antenna to the base unit. Use a small Philips head screw driver to remove the three screws. Store the antenna and screws in a safe place. D Mode CT User Guide Copyright © 2007 Waxess...
Page 15 3 Allow the battery to charge for 12–15 hours. Note: Charge the battery frequently. Leaving the battery uncharged for a prolonged period can adversely affect battery charging capacity. If this happens, replace the battery. D Mode CT User Guide Copyright © 2007 Waxess...
Page 16 A power indicator in the upper right corner of the LCD shows how much battery life remains. Full charge Low charge Note: Use only the rechargeable battery pack supplied with your cordless handset. D Mode CT User Guide Copyright © 2007 Waxess...
Page 17: Get Set
Highlight the correct setting for your phone system, then press to enter the setting in memory. A beep confirms the setting, and the Setup menu appears. D Mode CT User Guide Copyright © 2007 Waxess...
Page 18: Time And Date
The cursor moves to the right for the minute numbers. 5 Enter the correct minutes, and press The AM/PM screen appears. 6 Use the key to set AM or PM and press D Mode CT User Guide Copyright © 2007 Waxess...
Page 19 (handset or base) automatically synchronize after a few minutes. If a new cordless handset is added and properly registered, the time and date for the new handset will automatically synchronize. D Mode CT User Guide Copyright © 2007 Waxess...
Page 20: Set The Ringer Tone
5 Press Select setting appears. TEL Ring Tone Press to cancel without saving changes. Exit 6 Follow steps 1–4 above to choose a tone, and press Select A confirmation tone plays. D Mode CT User Guide Copyright © 2007 Waxess...
Page 21: Set The Ringer Volume
MENU 1 Press , scroll to , and Ringer/Key Beep press Select 2 Scroll to and press Night Volume Select 3 Use the key to change the volume setting. D Mode CT User Guide Copyright © 2007 Waxess...
Page 22: Key Beep
With local area codes stored, the phone can distinguish between local and long distance calls. MENU 1 Press 2 Scroll to then press Setup, Select 3 Scroll to , and press Area Code Select D Mode CT User Guide Copyright © 2007 Waxess...
Page 24: Language
The highlight bar shows the current language setting. 3 Scroll to the language you want, and press Select A beep confirms the setting and the Setup menu appears. The menu appears in the language you selected. D Mode CT User Guide Copyright © 2007 Waxess...
Page 25: Lcd Contrast
A tone confirms the setting. •Handset registration Register You can register up to three more handsets with the base. Each new cordless handset must be electronically registered with the base. The cordless handset D Mode CT User Guide Copyright © 2007 Waxess...
Page 26 3 Scroll to the handset you want to deregister and press Select The confirmation message “ ” Delete registration? appears. 4 Press to confirm, or press to return to the previous screen. D Mode CT User Guide Copyright © 2007 Waxess...
Page 27 D mode EVDO draft 1.book Page 21 Friday, January 12, 2007 8:18 PM Get set When deregistration is complete, the confirmation message “ Handset 1 is ” appears. deregistered D Mode CT User Guide Copyright © 2007 Waxess...
Page 28: Make A Wireless Call
•To end the call, call, Press call, press replace the PHONE handset Note: When making a wireless call, no dial tone is generated until the phone connects to the cellular network. D Mode CT User Guide Copyright © 2007 Waxess...
Page 29: Make A Landline Call
PHONE handset Set earpiece volume ON CORDED HANDSET During a call, move the selector switch to , or ON BASE SPEAKER PHONE During a call, press louder or for softer. D Mode CT User Guide Copyright © 2007 Waxess...
Page 30: Calling Options
In the upper left corner, the LCD shows a if the call was on the cellular line or a if the call was on the landline. 2 Press to redial the number. D Mode CT User Guide Copyright © 2007 Waxess...
Page 31: Answer A Wireless Call
When the phone receives a wireless call: • The base and all registered cordless handsets ring. • The key on the handset flashes green. • The caller ID, if available, appears on the LCD screen. D Mode CT User Guide Copyright © 2007 Waxess...
Page 32: Answer A Landline Call
•Press •Press •Lift handset off base SP-PHONE •Press •To end the •To end the call, •To end the call, SP-PHONE call, press press replace the twice handset D Mode CT User Guide Copyright © 2007 Waxess...
Page 33: In-Call Operations
(a different tone than with the Intercom function), and a message appears on the LCD. If there is no answer within 60 seconds, the D Mode CT User Guide Copyright © 2007 Waxess...
Page 34 1 During a call, press Intercom scroll to the handset you want, and press Page The handset involved in the transfer operation begins beeping (a different tone than with the Intercom D Mode CT User Guide Copyright © 2007 Waxess...
Page 35 4 Press to end the call. You can also use the HOLD function to start a HOLD transfer. During a call, press , select , then follow the steps above. Transfer D Mode CT User Guide Copyright © 2007 Waxess...
Page 36: Phone Book
5 To drop a participant from the conference call press CEL DROP TEL DROP Press to drop all participants and end the call. •Phone book Use the phone book to store up to 50 names and numbers. D Mode CT User Guide Copyright © 2007 Waxess...
Page 37 Each time you press a key, the letters on that key appear first as capital letters, then as lower case letters, then the number corresponding to that key. Number of times key pressed keys “ & ‘ < > ‘ Space D Mode CT User Guide Copyright © 2007 Waxess...
Page 38 , or Ringer 1 3, Melody 1 and press No setting Melody tones are only available on the handset. screen appears. Speed Dial 7 Choose an empty Speed Dial key number and D Mode CT User Guide Copyright © 2007 Waxess...
Page 39 Enter numbers from Caller ID 1 While in the Caller ID log, scroll to the name/ number you want to enter in the phone book and press Select , and appear. Call/Dial Edit Delete D Mode CT User Guide Copyright © 2007 Waxess...
Page 41: Messages
10 numbers in Speed Dial memory. See “Speed dial” on page 24. •Messages Note: You must have a subscription to use these message services. Check with your service provider for details. D Mode CT User Guide Copyright © 2007 Waxess...
Page 42 5 Use the keypad to enter the voicemail number for your landline service, then press A beep confirms your entry. CHECK VOICEMAIL MESSAGES When new messages are waiting, the message LEDs on the base and the handset blink. D Mode CT User Guide Copyright © 2007 Waxess...
Page 45 1 After writing a message, press 2 Scroll to Save, and press Select The message is stored in Saved messages for easy viewing later. Press to return to the EXIT SMS main menu. D Mode CT User Guide Copyright © 2007 Waxess...
Page 46 If you have no unread messages, an error tone sounds. 5 Scroll to , and press Read messages Select 6 Scroll to the message you want to read, and press Select D Mode CT User Guide Copyright © 2007 Waxess...
Page 47 , scroll to the entry you want, and press Select Note: Forwarding a message can only be done through a CEL connection. DELETE A MESSAGE While reading a message, press , scroll to Select and press Delete, D Mode CT User Guide Copyright © 2007 Waxess...
Page 48 Storage capacity is limited, and there is no indication that the memory is full. When the message memory gets full, no more SMS messages can be received, so it is important to clear the memory frequently. D Mode CT User Guide Copyright © 2007 Waxess...
Page 49: More Features
On a single incoming call, Caller ID shows the time and date, the caller’s name, and the number. blinks depending on the type of call–cellular service or landline. D Mode CT User Guide Copyright © 2007 Waxess...
Page 50 TEL line, the “C” remains solid, and the “T” indicator blinks. If you receive a call waiting signal during the FLASH conference call, press to answer the call. D Mode CT User Guide Copyright © 2007 Waxess...
Page 51: Dial A Number
If the number 1 is also required for dialing, press to add 1 to the beginning of the number. 2 Press to make the call. Save a number 1 Scroll to a name/number displayed, and press Select. D Mode CT User Guide Copyright © 2007 Waxess...
Page 52: Delete A Number
2 Stop on the number you want, press Select 3 Scroll to , and press Delete Select A confirmation message appears. 4 Press to delete the number. A tone confirms your choice and the Caller ID log appears. D Mode CT User Guide Copyright © 2007 Waxess...
Page 54 2 To answer: ANSWER • On the handset, press to connect with Intercom. • On the base, lift the corded handset, press ANSWER, or press SP-PHONE to connect with the Intercom. D Mode CT User Guide Copyright © 2007 Waxess...
Page 56 Cordless Cellular Base Landline handset Cordless Cellular Landline handset remaining cordless handset Base Landline Cellular remaining cordless handset Cordless Landline Base Cellular handset Cordless Landline Cellular handset remaining cordless handset D Mode CT User Guide Copyright © 2007 Waxess...
Page 59 (TEL) call and is not operable on the base. Note: Remember that with Barge-In activated, privacy may be compromised. Any registered handset can join the call, but there is no indication that another handset joined the call. D Mode CT User Guide Copyright © 2007 Waxess...
Page 60 • 1 cordless handset 1 cordless Landline Cellular • 1 cordless handset handset • base 2 or more Landline • 1 cordless Cellular handset cordless • base handsets Notes: See next page. D Mode CT User Guide Copyright © 2007 Waxess...
Page 61 Exit Use Barge-In 1 Verify that Barge-In is activated, then use one handset to place a call. 2 After the call is answered, press on any handset to join the call. D Mode CT User Guide Copyright © 2007 Waxess...
Page 62: Cellular Only
Turn off Cellular only If landline services are needed, deactivate this feature first. MENU 1 Press , scroll to , and press Setup Select D Mode CT User Guide Copyright © 2007 Waxess...
Page 63: Cel Phone Number
30 minutes even (depending on battery condition) if AC power is disrupted. If you install batteries for the Power Back-up feature you can check the condition of the batteries while they are installed. D Mode CT User Guide Copyright © 2007 Waxess...
Page 64 • After every power outage, check the batteries and replace them as needed. • Actual operating time using Power Back-up varies depending on the condition of the batteries. D Mode CT User Guide Copyright © 2007 Waxess...
Page 65: Precautions
Before you read anything else, please observe the following precautions. Warning! Waxess Inc. DOES NOT represent this unit to be waterproof. To reduce the risk of fire, electrical shock, or damage to the unit, DO NOT expose this unit to rain or moisture.
Page 66: Important Safety Instructions
4 Do not use this product near water; for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool. 5 Do not place this product on an unstable cart, D Mode CT User Guide Copyright © 2007 Waxess...
Page 67 Never spill liquid of any kind on the product. 11To reduce the risk of electric shock, do not disassemble this product. Take it to qualified service personnel when service or repair work is required. Opening or removing covers may D Mode CT User Guide Copyright © 2007 Waxess...
Page 68 E If the product has been dropped or the cabinet has been damaged. F If the product exhibits a distinct change in performance. 13Do not use the telephone to report a gas leak in the vicinity of the leak. D Mode CT User Guide Copyright © 2007 Waxess...
Page 70: Important Electrical Considerations
This phone is no exception. The FCC Wants You To Know Changes or modifications to this product not expressly approved by Waxess, or operation of this product in any way other than as detailed by the owner's manual, could void your authority to operate this product.
Page 73: More Than One Cordless Telephone
If you want to use more than one cordless telephone in your home, they must operate on different channels. Press the channel key to select a channel that provides the clearest communication. D Mode CT User Guide Copyright © 2007 Waxess...
Page 74: Cordless Telephone Privacy
• Be sure there is sufficient space to fully extend the base antenna. • The base can be placed on a desk or tabletop or D Mode CT User Guide Copyright © 2007 Waxess...
Page 75: Telephone Line Outlets
This type of installation is not difficult; however, you should contact your telephone dealer or a telephone supply store for advice about the proper adapter or converter for your particular situation. D Mode CT User Guide Copyright © 2007 Waxess...
Page 76: Connecting The Telephone Cords
Note: Place the power cord so that it does not create a trip hazard, or where it could become chafed and create a fire or other electrical hazards. D Mode CT User Guide Copyright © 2007 Waxess...
Page 78: Radio Equipment
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. “Privacy of communications may not be ensured when using this telephone.” D Mode CT User Guide Copyright © 2007 Waxess...
Page 79: General Information
Battery Information: Ni-MH, 3.6V, 1300mA Frequency: CDMA 800/1900 MHz EV-DO Handset/ Base 2.4GHz Weight: Handset 4.9 oz. (without battery) 7.3 oz. (with battery) Base 1 lb., 13.7 oz. with corded handset D Mode CT User Guide Copyright © 2007 Waxess...
Page 80 Base 3-1/4” x 7-3/4” x 7-7/8” (height, width, depth) FCC ID Number SNBDM1200E Specifications, features, and availability of optional accessories are all subject to change without prior notice. Approved patents: 6,766,175. Patents pending: 09/991,296 and 10/156,439 D Mode CT User Guide Copyright © 2007 Waxess...
Page 81: D Mode Ct Menu Map
Language Language Name the Unit Name the Unit Register Tone/Pulse Deregister Barge-In LCD Contrast Signal Level Time and Date Battery Level Cellular Only LCD Contrast CEL Phone Number Time and Date D Mode CT User Guide Copyright © 2007 Waxess...
Page 82: Index
..8 send a new battery indicator ..10 message ..... charge the battery ... 9 write ....install batteries ..8 voice messages ..check voicemail distinctive ring set up ....D Mode CT User Guide Copyright © 2007 Waxess...
Page 83 ......make calls ..... quick reference redial ...... chart ..... receive calls ..safety instructions area codes .... dialing mode ..earpiece volume corded handset cordless handset speaker phone ..D Mode CT User Guide Copyright © 2007 Waxess...
