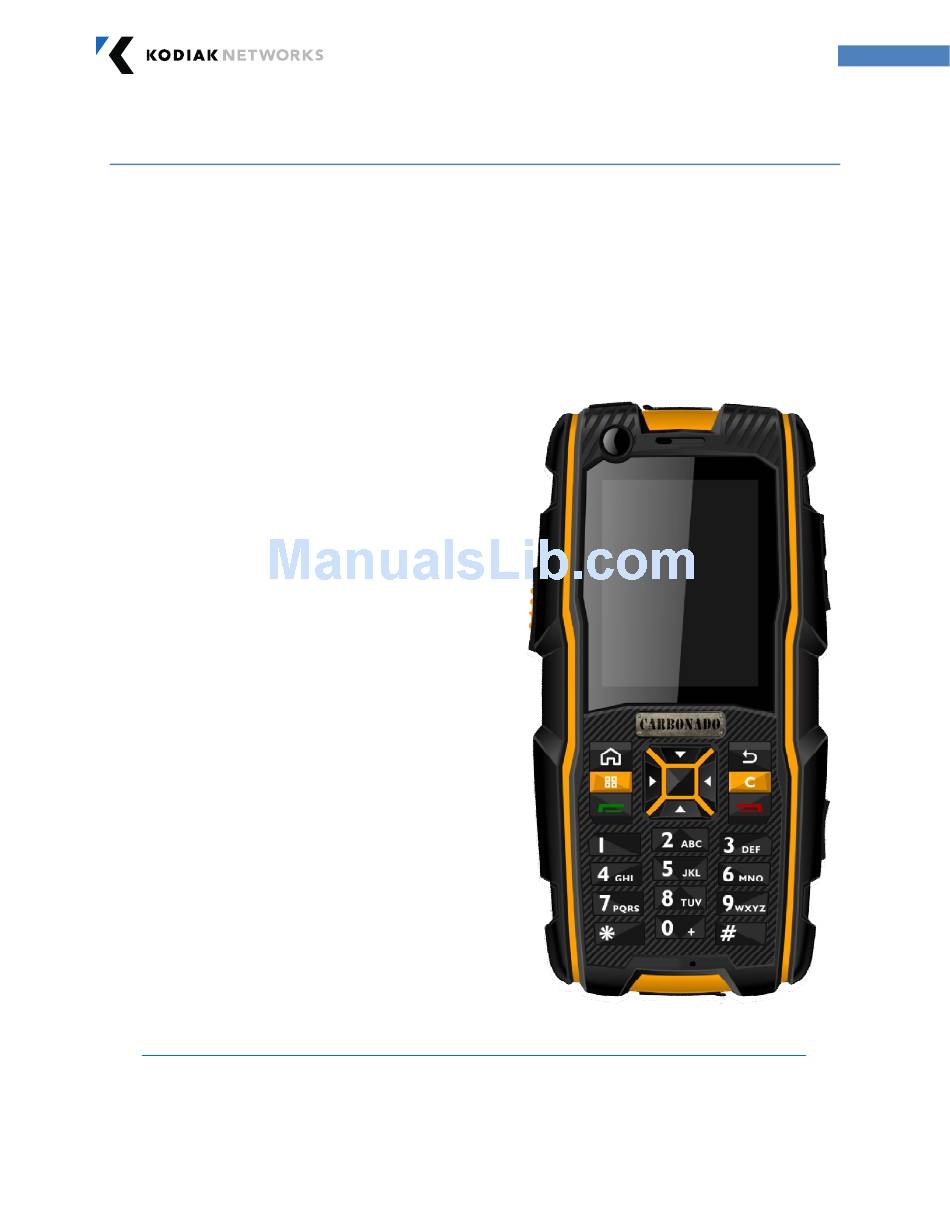

- Page 1 User Manual For Carbonado UA400 Handset with Android OS Copyright 2013, Kodiak Networks, Inc. kodiaknetworks.com...
-
Page 2: Table Of Contents
UA400 Layout ................................. …9 3.2 UA400 Front Layout .............................. …9 3.3 UA400 Back Layout ............................... Switching ON Your Phone for the first time ....................Home Screen Indicators ............................Keypad Functions ..............................FCC Certification ..............................Copyright 2013, Kodiak Networks, Inc. kodiaknetworks.com... -
Page 3: General Information
1.1 Phone Model Covered: This user guide covers the Carbonado UA400 phone model. The phone model name can be read on the phone label under the battery. 1.2 Network Services: Your Carbonado device is equipped to work only for PoC service with Wi-Fi network. -
Page 4: Precautions To Use The Battery
-20°C and +55°C (-4°F and 131°F). A device with a hot or cold battery may not work temporarily, even when the battery is fully charged. Battery performance is particularly limited in temperatures below freezing. Copyright 2013, Kodiak Networks, Inc. kodiaknetworks.com... -
Page 5: Child Safety
Carbonado phones operate using Wi-Fi radio signals, which cannot guarantee connection under all circumstances. Therefore you should never solely rely upon any mobile phone for essential communications (e.g. medical emergencies). Emergency calls will not be possible as this is Wi-Fi only device. Copyright 2013, Kodiak Networks, Inc. kodiaknetworks.com... -
Page 6: Getting Started
4. Close the battery cover. Rotate the battery cover screws in clockwise direction. You can use a key/screwdriver to tighten the screws. Ensure not to over tighten. Copyright 2013, Kodiak Networks, Inc. kodiaknetworks.com... -
Page 7: Removing The Battery
Do not use an incorrect battery type as it may cause explosion. Complete the following steps to charge the phone battery. 1. Plug the charger into a power outlet. Copyright 2013, Kodiak Networks, Inc. kodiaknetworks.com... - Page 8 (visible on the home screen) show movement indicating that the battery is being charged. After the phone is fully charged, the battery bars on the display stop scrolling. At this point, you can disconnect the phone from the charger. Copyright 2013, Kodiak Networks, Inc. kodiaknetworks.com...
-
Page 9: Basics Of Your Phone
Carbonado UA400 Layout: The Carbonado UA400 comes with a single LCD screen. The TFT technology used screen displays 262K colors. The Carbonado UA400 keypad has 11 function keys and 12 alphanumeric keys. The... -
Page 10: Ua400 Back Layout
Carbonado UA400 Back Layout: The following image provides the details of the layout at the back of your Carbonado UA400. Speaker Battery cover Switching ON your Phone for the first time Press and hold the Power ON/OFF key provided at the top for two seconds to power on the phone. -
Page 11: Keypad Functions
(Applicable only for PTT To reach top of the list applications) (Applicable only for PTT To reach bottom of the list applications) To launch PTT application Side PTT key PTT floor control Copyright 2013, Kodiak Networks, Inc. kodiaknetworks.com... - Page 12 To insert Head Phone jack Head set Jack Home Key to reach Home screen Home Key To clear the edited text Clear Key USB connectivity and charger port USB / Charger Port Copyright 2013, Kodiak Networks, Inc. kodiaknetworks.com...
- Page 13 This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. Copyright 2013, Kodiak Networks, Inc. kodiaknetworks.com...
