Each Kit Includes:
2-way Mainboard
Features:
Supports 2 JAMMA boards
Only 1 JAMMA board is powered at a time.
No external remotes are required
Games are switched by holding Player1-Start and Player2-Start for 1.5 seconds, or alternate
buttons can be connected.
Supports 6 button inputs per player
Supports up to 20 Amps on 5V
-5V power is switched for each board
RiddledTV.com
2-Way JAMMA Switcher
I
NSTALLATION

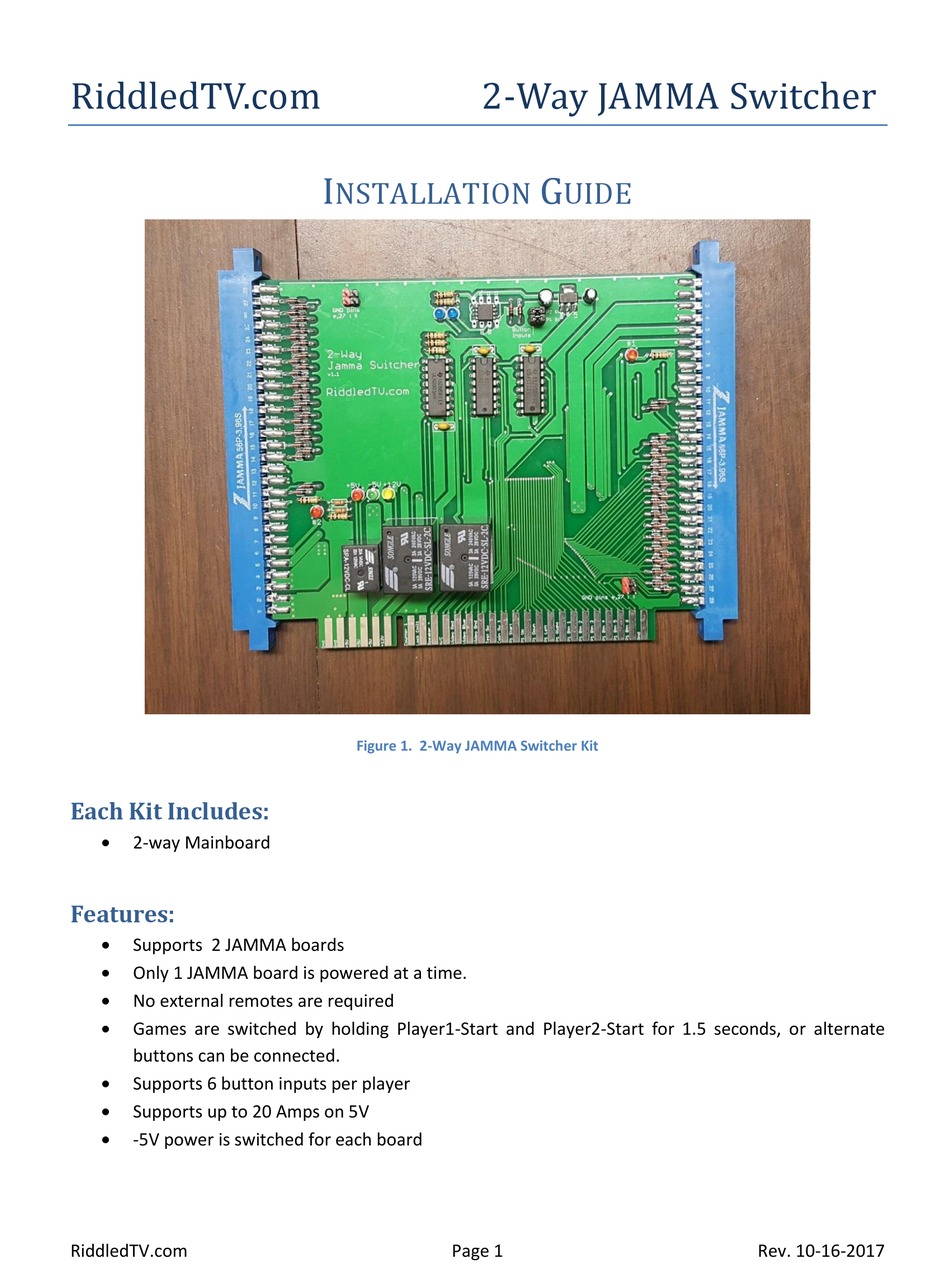

Figure 1. 2-Way JAMMA Switcher Kit
Page 1
G
UIDE
Rev. 10-16-2017
Advertisement
Table of Contents
Summary of Contents for RiddledTV JAMMA
- Page 1 2-way Mainboard Features: Supports 2 JAMMA boards Only 1 JAMMA board is powered at a time. No external remotes are required Games are switched by holding Player1-Start and Player2-Start for 1.5 seconds, or alternate buttons can be connected.
-
Page 2: Mainboard Components
Selector for JAMMA pins e and 27 on Gameboard #1 Indicator lights that illuminate when 1 or both of the game select button inputs are active. K. JAMMA harness input from control panel, monitor, speaker, and power supply RiddledTV.com Page 2... - Page 3 25 PLAYER 1 - BUTTON 4 PLAYER 2 - BUTTON 5 26 PLAYER 1 - BUTTON 5 PLAYER 2 - BUTTON 6/GND 27 PLAYER 1 - BUTTON 6/GND GROUND 28 GROUND Figure 3. JAMMA Switcher Pinouts RiddledTV.com Page 3 Rev. 10-16-2017...
-
Page 4: Installation Instructions
1. Disconnect AC power. 2. Verify your JAMMA harness wiring matches the standard as shown in Figure 3. 3. Plug the Switcher into your existing JAMMA harness and mount in a suitable location. Note: Do NOT connect the JAMMA gameboards yet. -
Page 5: Indicator Lights
5V, -5V, and 12V power supplies. They do not indicate the accuracy of those voltages. 2 Blue LEDs indicate that the switcher detects one or both of the game-select buttons are pressed. RiddledTV.com Page 5 Rev. 10-16-2017... -
Page 6: Monitor Synchronization
Grounding of JAMMA pins 27, e: Refer to the Figure 3 for JAMMA pinouts. The initial JAMMA standard indicated that these pins were signal grounds. However, many gameboards have repurposed these pins for button inputs. To use pins “27” and “e” as button inputs, leave the pins vacant, as shown in Figure 5 below. To modify these pins to be grounded, apply jumpers (also commonly referred to as shunts). -
Page 7: Troubleshooting
Troubleshooting: My controls are not responding – JAMMA harness Ground wires fed from pins 27 & e of the gameboard: Several instances have been found where the JAMMA harness wiring uses pins 27, e as a grounding takeoff point for the control panel wiring. If your harness does this, the Switcher will not respond to any inputs from the control panel.
