Side Box, HCS Series.
AHCS Aluminum Side Box
Product Registration
Model No. ____________________
Serial No. ____________________
Installation Time and Tools Required
The approximate installation time is half (1/2) Hour;
this is depending on installation experience.
Please Read Carefully
Attention: Read and understand all instruction and warnings before installing and operating or using this
product. Mounting box properly is always very important. If done correctly, it will add longer life to your box.
Always try to fasten box or brackets as parallel as possible, mount box as high from the ground as possible.
Danger: Do not use this product for transporting or storing flammables, explosives, hazardous material or
hazardous waste, such as containers of propane, gasoline, solvents, gun powder, acetylene and cutting torches.
This product is designed and safe for use in storing and transporting tools, equipment and similar material. Any
modification made to this product, or unintended use of this product, could create a hazardous condition that can
cause death, serious personal injury or property damage.
Warning: Before mounting this product, use extra precautions on placement. This product can reduce driver's
ability to clearly see roadways, vehicular and pedestrian traffic, and other objects through the rear and side
windows and mirrors of the vehicle. Make all adjustments necessary to ensure maximum visibility. State and
local laws may prohibit obstruction of windows in a moving vehicle.
Note: Before drilling, make sure all electrical wiring and components, fuel tank and associated
components are not in the drilling pattern.
Part No. ISL2520 2010 American Truckboxes, LLC. Web Page: www.truckbox.com USA Page 1
American Truckboxes, LLC. HCS Side Box Owner & Installation Manual – Rev.: 04/01/10
SHCS Steel Side Box
Purchase Date: _______________________________
Purchase From: _______________________________
Key Code: ___________________________________
1. ½" Ratchet Wrench.
2. ½" Wrench
3. Tape Measure
Pure &
Tough
For the Working Man
4. Drill with 3/8" Bit
5. Square
6. 5/16" drill Tip
Advertisement
Table of Contents
Summary of Contents for American Truckboxes AHCS
-
Page 1: Product Registration

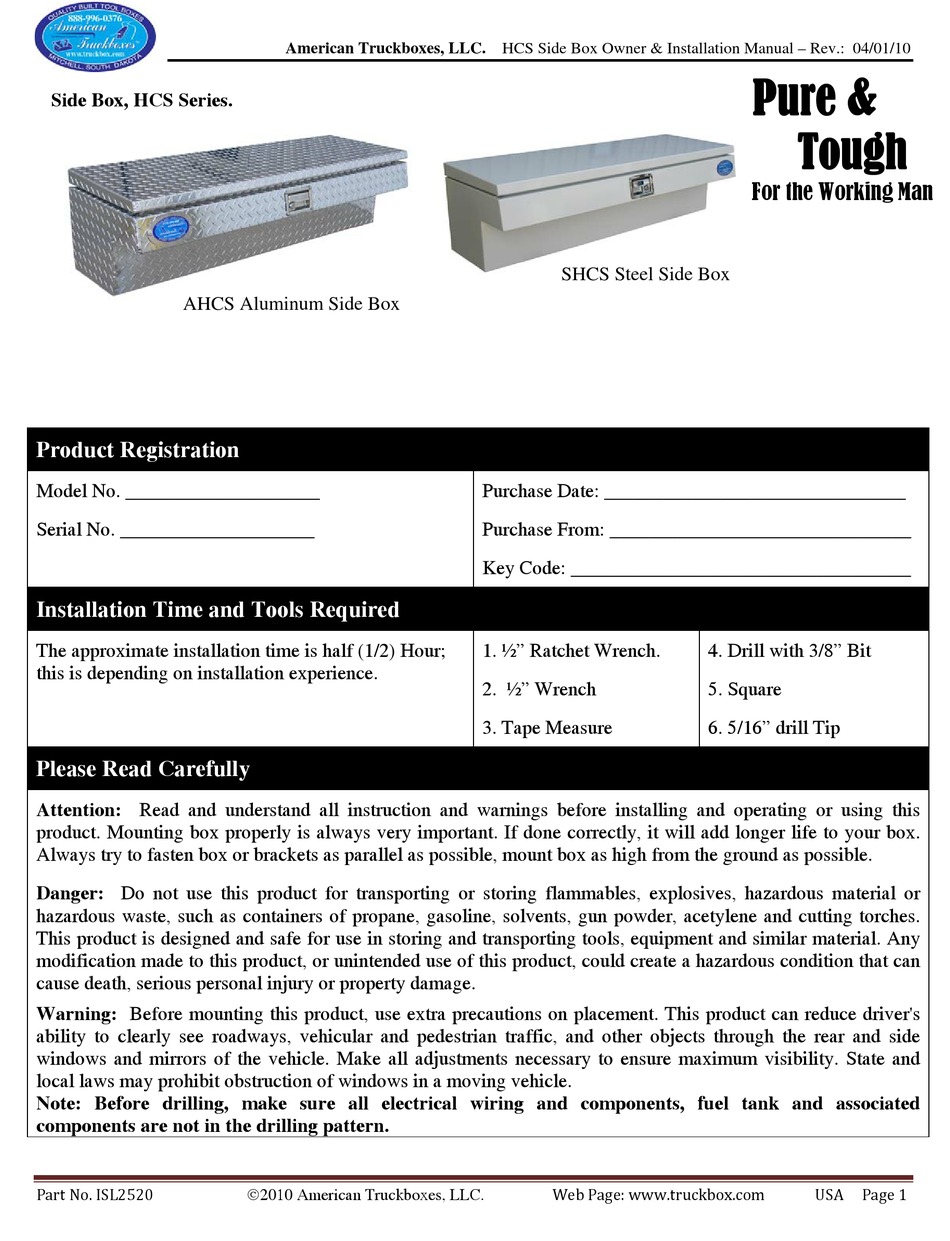

American Truckboxes, LLC. HCS Side Box Owner & Installation Manual – Rev.: 04/01/10 Pure & Side Box, HCS Series. Tough For the Working Man SHCS Steel Side Box AHCS Aluminum Side Box Product Registration Model No. ____________________ Purchase Date: _______________________________ Serial No. -
