Eschenbach Optik 53134 Instruction Manual

WIRELESS WEATHER STATION
Instruction manual

Introduction:

Congratulations on purchasing this state-of-the-arts Weather Station with radio-controlled time as an
example of fine design and quality piece of engineering. The operation of this product is easy and
straightforward. By reading this operating manual, users will receive a better understanding of the
Weather Station together with the optimum benefit of all its features.

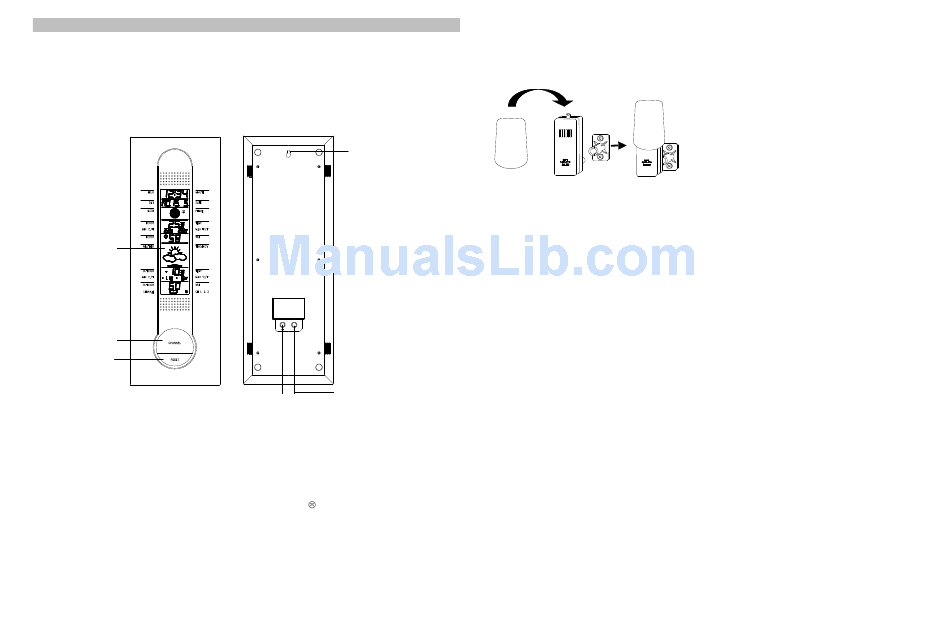

Weather Station
LCD display
CHANNEL key
Reset Key
•
Radio controlled time with manual setting option.
•
12/24 hour time display
•
Calendar display
•
Time zone selectable (±12 hours)
•
Moon phases display
•
Degree Celsius or Fahrenheit temperature selectable
•
Current indoor temperature display
•
Simultaneous minimum and maximum indoor temperatu re recordings
•
Current relative indoor humidity display with "☺" Smiling or " " Sad face for comfort level
reading
•
3 weather icons for weather forecasting
•
Weather tendency indicator
•
Current outdoor temperature display
•
Simultaneous minimum and maximum outdoor temperature recordings
•
Current relative outdoor humidity display
•
Manual minimum and maximum temperature recording resets
Hanging hole
+
key
SET key
•
LCD contrast changeable to 8 different tones
•
Can take up to 3 outdoor transmitters
•
Low battery indicator
•
Wall mounting
Thermo-Hygro Transmitter:

Setting up:

1. First, insert the batteries into the Weather
batteries in the weather station below).
LCD will light up briefly, then the indoor temperature and humidity, the time as "-:--", the date as
"------" , the Moon phase and the weather icons sun and clouds will be displayed. If the indoor
temperature and humidity are not displayed after a few seconds, remove the batteries and wait
for at least 10 seconds before reinserting them. Once the indoor data is displayed proceed to
step 2.
2. Within 3 minutes of activating the Weather station, place the batteries into the transmitter
How To Install And Replace The Batteries In The Thermo-Hygro Transmitter below).
3. After inserting the batteries into the transmitter, the Weather station will start receiving data from
the transmitter. The outdoor temperature and humidity should then be displayed on the Weather
station. If this does not happen after 10
both units and reset from step 1.
4. The Weather station can take up to 3 remote transmitters. If you have
transmitters, follow step 2 for all extra transmitters. However, ensure that you leave 10 seconds
in between the reception of the last transmitter and the set-up of the following transmitter. The
Weather station will number the transmitters in the order of set-up, i.e. the first transmitter will
have the temperature displayed with the number 1 against it and so on.
5. When all the transmitters are set up, there is a testing period, during which the display switches
quickly between all the received transmitters at random, according to which random
transmission it receives. Pressing any key will stop this process and the display will show the
temperature and humidity for the first transmitter. The process also stops automatically if no
keys are pressed for a few minutes.
6. Once the remote temperature has been received and displayed on the Weather station, the
DCF-77 time code reception is automatically started. This takes typically between 3-5 minutes
in good conditions. This time period is an excellent opportunity to locate the transmitter(s) in
suitable location(s) outdoors. In order to ensure sufficient 433 MHz transmission however, this
should under good conditions be no more
will be finally positioned (see notes on "Positioning" and "433 MHz Reception").
7. If after 10 minutes, the DCF time has not been received, use the SET key to manually enter a
time initially. The clock will then automatically attempt a new reception the next full hour or as
long as one DCF reception is successful. When this is successful, the received time will
override the manually set time. The date is also updated with the received time. Also a radio
reception always take place between
reception every full hour within this time framer.
time" and "Manual time setting").
•
Remote transmission of outdoor
temperature and humidity to weather
station by 433 MHz signals
•
Rain proof casing
•
Wall mounting case
station (see How to install and replace the
Once the batteries are in place, all segments of the
minutes, the batteries will need to be removed from
purchased
than 20 - 25 meters from where the Weather station
00:00 am and 06:00 am each day (attempts DCF
Please refers to notes on "Radio controlled
(see
additional
