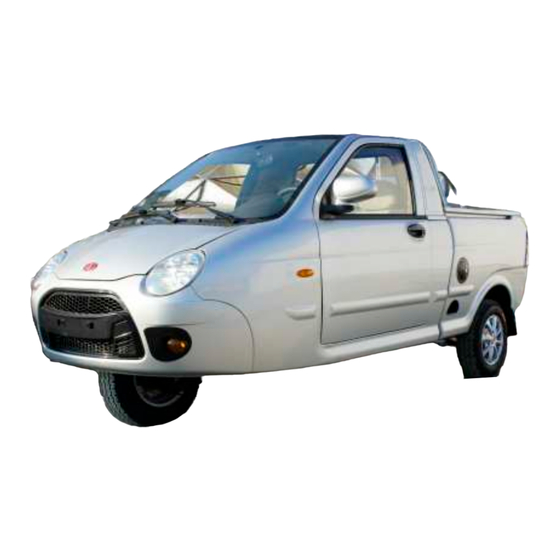

Summary of Contents for Fulu FL600ZH-A

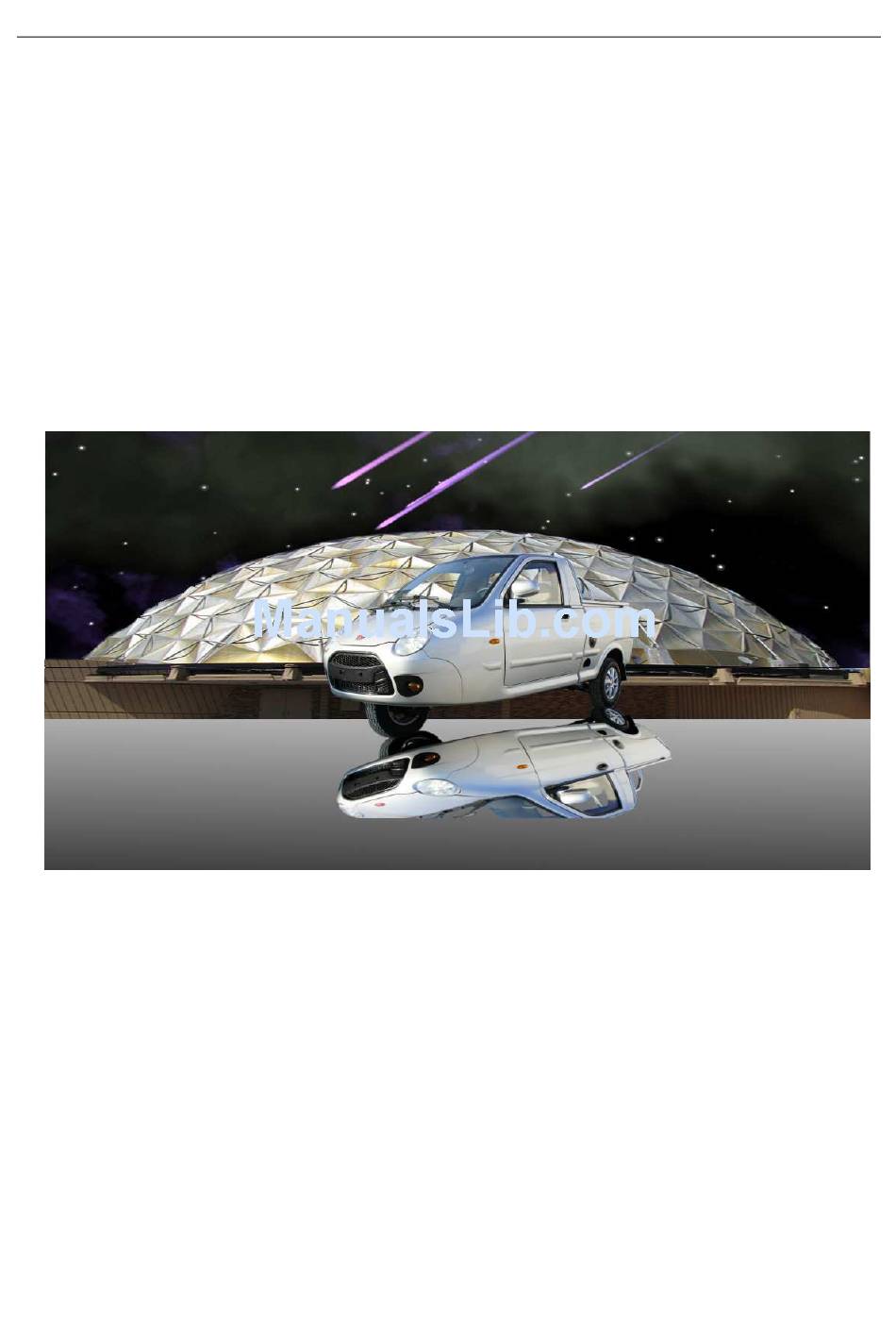

- Page 1 USER MANUAL DEZHOU FULU VEHICLE CO., LTD...
- Page 2 The staffs of Fulu Vehicle Co. Ltd. look forward to better ideas, advice from you on shortcomings of our products during the use of our Fulu regular- three-wheel vehicles. We appreciate all that.
- Page 3 Contents …………………….………… Chapter one: Main Technical Specifications …………………………………….…… Chapter two: Seat and seat belt ………………. Chapter three: New Vehicle “break in” & Engine Start-up ……………………..… Chapter four: Brief Functions and Operations Chapter five: Cooling System……………………………………………….…21 ….… Chapter six: Tire……………………………………………………… … Chapter seven: Maintenance &...
- Page 4 Chapter one Main Technical Specifications Model NO. FL600ZH-A Items. Max Speed 65Km/h Fuel Consumption(Eco-Speed) ≤7.8 L／100Km Grade Ability ≤12° Turning Diameter min ≤7.5m Braking deceleration ≥5m/s² Wheel track 1250㎜ Wheelbase 2165㎜ Ground clearance min. ≥180㎜ Net weight 743㎏ Front-wheel spec./tire pressure 145/70R12/250Kpa Rear spec./ tire pressure...
- Page 5 Steering gear Left position/gear, rack Clutch Associated spring Transmission Manual, Horizontal Constant meshing gear, four gearshifts Sump capacity 21.1L Storage battery capacity 12V/45Ah catalytic converter ET86-90 0 109 072 103 Oxygen Sensor Disc heating zirconia...
- Page 6 Chapter two Usage of seat Seat Driver seat, manual adjustable, the handle at front-left on the seat, if adjust it to and fro, the seat goes forward or backward, lift-up leftward the handle to unlock the seat and slide it to a favorable position and then loose the handle, the locker automatically locking the seat.
- Page 7 Headlight, interior light is not controlled by the key, without which you can directly operate their functions. 3. Engine start Check up the fuel level and set a gear at neutral (N) firstly before starting the engine. (1) Pedal the clutch, but not step down the accelerate pedal, turn the ignition key to the third (start) position, after the engine being started, let slip the key, idle running for five minutes and then drive on.
- Page 8 5、Parking brake: Up-lift the braking handle to carry out parking brake; for releasing parking braking, firstly up-lift the braking handle a little with the thumb pressing a red button on top of the handle, then release the handle completely. Notice: Parking indicator is on the panel.
- Page 9 the panel as shown in the fig. If light flashes faster than normal or no flashing, maybe one of the signal lamps is faulty while other drivers can’t see your turning signal. Notice： ： ： ： If the turning light is faulty, please check up and get it repaired in time in case any accident occurs.
- Page 10 iced on the windshield ruining the line of sight. 7、Inner lamp: Inner lamp locates over the windshield. Turn rightly for the door light and left for the inner light. 8、Sun shield: Turn down the sun shield to stop glaring sunshine. 9、Sky light window Manipulation: Unlock the locking handles of the sky light window by pulling them...
- Page 11 （4）instrument assy （5）Windshield wiper （6）blower speed adjust switch （7）decorative cover （8）物箱 glove case （9）warm air outlet （ 10 ） switch turning / switch lighting （ 11 ） radio （12 ） decorative switch （ 13 ） radiator cooling air （ 14 ） loudhailer （...
- Page 12 the maintenance service to check up. （2）Speed gauge and odometer The odometer here is anti-reset, the mileage reads at above, the mile- calculator below. To calculate a distance, press the red button below the odometer to reset the meter so as to get the driving coverage. （3）Fuel gauge After igniting, the meter shows the fuel storage level in the oil-box.
- Page 13 （8）clock （9） SD （10） USB 14、Radio (AM) Most AM station sends a larger range than FM station especially at night, however the larger range would brings out the signals disturb between stations. AM signals will collect noises from storm, wires etc. If there is noise, you can tune down the volume to reduce it.
- Page 14 medicine research reveals the alcohol existence in body would do more harm especially to brain, backbone and heart in a collision which means there is more severe injured or possibility to death for drunken than normal diver Warning Drunken drive is very dangerous; even a little alcohol would affect your reaction, sense, attention and judgment.
- Page 15 19、Sloping and mountainous road It is different to drive on a steep or mountainous road and plain or highland. If you often or going to drive in mountainous, here are some safety driving notices. Keep the car in good condition, check up all the fluids levels and arrester, tire, cooling system and transmission which will have more working loads on mountainous road.
- Page 16 liquid in case making the engine faulty which is not guaranteed Warning While driving, don’t open the water outlet or the jug! Hot fluid in cooling system may puff out and hurt you, the fluid tank’s pressure is high, even you slightly turning its cover, the hot fluid would burst out, so never act on the tank cover when it hot.
- Page 17 often occurs bit by bit. As for a tire burst, you’d follow these instructions. If the front tire bursts, you should release the accelerate pedal, then slightly brake, holding on the steering wheel to keep the direction, then stop the car out of the traveling lane. If a rear tire bursts, for instance, on a crooked road, as if it skid，you should deal with in a anti-skid way.
- Page 18 facing the wheel; tighten each nut till the wheel against the wheel hub properly. Follow the order, in the fig, to screw down the nuts to a proper moment. The wrong nuts or nuts moment would make wheel loose, even fall off so as to cause an accident.
- Page 19 see the fig. Open the outlet cover, put the key into the fuel tank lock, pressing the cover as you contra-rotates the lock and the cover. Warning Stained with fuel and flaming you will be injured. Too swiftly opening the fuel tank cover, fuel may spill out, especially in hot days.
- Page 20 FULU sound service. Warning Quality of the engine oil is very important. Please go to FULU service station in time to get maintenance with qualified oil. Engine faulty by low quality engine oil is out of the maintenance service guarantee.
- Page 21 Better have the maintenance in FULU sound service out of the professional technician Warning Quality of the gear box oil is very important. Please go to FULU service station in time to get maintenance with qualified oil. Gear box damage by low quality gear box oil is out of the maintenance service guarantee.
- Page 22 As driving, the breaking warning flashes, you should speed down, park the car safely and check the braking oil’s level and its pipe line then go to the FULU maintenance service Notice: All the fault braking fluids would bring damage to the parts of braking system, e.g.
- Page 23 a Open the front hood b Release the pressing clip to the bulb shield and take it off. c Loosen the fasten clip to the bulb d Take out the bulb from the lampshade, and replace it by a bulb of the same type.
- Page 24 Excessive or deficiency air pressure are estimated great. Deficiency will lead to: severe distortion excessive hot tire overloaded severe worn out difficult to control high fuel consume Excessive will lead to: Abnormal worn out Running bumping Unnecessary wears by road obstacles 14、Vehicle Identification Number VIN locates on the longitudinal beam of right rear chassis.
- Page 25 Warning Replace the fuse piece with the same specs, never use wires or metal piece instead which will cause burning, fire.Contact the FULU service for finding the reason and remove the fault if the fuse frequently burns. Notice: 1. Carbon tank: please check the carbon tank once there is fuel smell or lower power or easy flameout.
- Page 26 ★ ★ ★ ★ oil filter: replacement ★ ★ ★ ★ engine: check leakage(engine oil, antifreeze liquid and fuel) ★ ★ Timing belt: check wear and tear, its tension and relax conditions, adjust and replace ★ ★ spark plug: check and replacement if necessary air cleaner: clean the cover and the filter ;replacement if ★...
- Page 27 Chapter nine Accessories, tools list 1. Driver’s tools Driver’s tools supplied with each car for daily maintenance. ⑴ tool bag ⑵ 8×10 spanner8×10 ⑶ 13×16 spanner13×16 ⑷ 18×21 spanner18×21 ⑸ ⑹ twin bolt spanner bolt spanner handle ⑺ ⑻ fishtail pliers jack ⑼...
