Summary of Contents for ESCAM PSE6004 Series
-
Page 1: User Guide

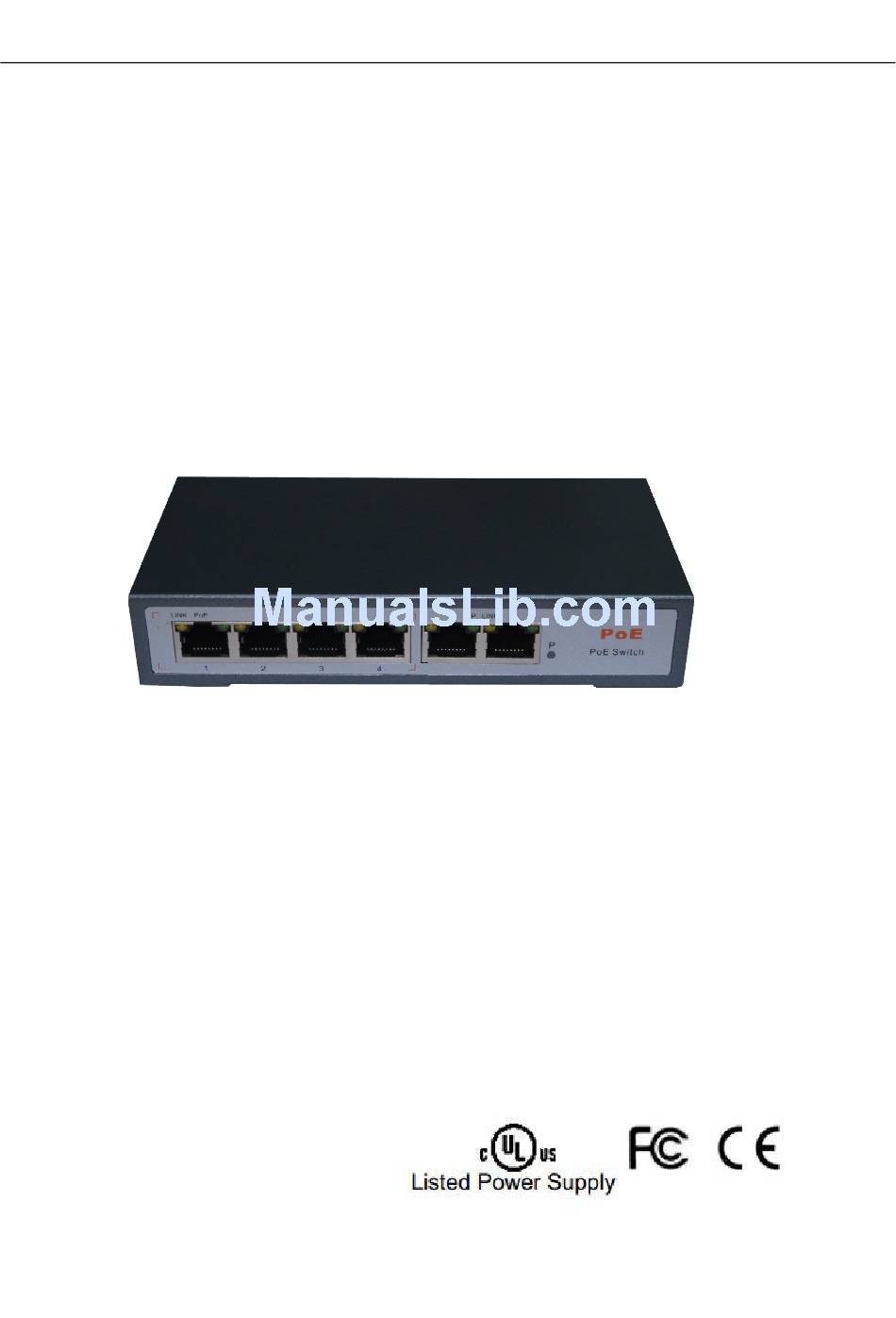

PSE6004 Series POE Switch USER GUIDE 6-Port fast Ethernet Switch 4-Port POE Mini aluminium housing with easy-mount design -30°C ~ +70°C operating temperature Weight:0.8KG Switch Datasheef... -
Page 2: Typical Application
PSE6004 Series Features: Overview Mini aluminium housing supports wall ● ● PSE series PoE switches not only in price can be mount and desk-top installation comparable to ordinary switch, and, compared to those only work in 0 ° C ~50 ° C environment, Unique thermal design, wide operating ●... - Page 3 PSE6004 Series Typical application 1: The switch is connected to a 90W-output power supply, and provides PoE signal through the network cables to PoE IP cameras. Typical application 2: The switch is driven by a power supply with 90W output, and delivers IEEE PoE+ signal to high power devices like IR IP cameras,up to max 20W per port.
- Page 4 PSE6004 Series Ports & indicators assignment: The PSE6004 series switches provide four PoE/PoE+ output RJ-45 ports for powered devices and two data uplink RJ-45 port for backbond network device. Specifiations： Power over Ethernet Specifiations： Electrical Specifiations： PoE Standard Input Voltage 48VDC IEEE 802.3af &...
- Page 5 PSE6004 Series Network Specifiations • General Features – 4 x 10/100Mbps dual-speed RJ-45 Auto-MDI/MDI-X ports – 2 x 10/100Mbps dual-speed RJ-45 Auto-MDI/MDI-X uplink Port – 512K bits integrated shared packet memory – Shared on-chip memory-based switch fabric with true non-blocking switching performance •...
- Page 6 PSE6004 Series Standards Conformance IEEE 802.3af & IEEE 802.3at Power over Ethernet IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x Flow Control and Back pressure IEEE 802.1d Spanning Tree Protocol IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control...
-
Page 7: Included Accessories
PSE6004 Series Included Accessories UL-listed AC-48VDC Power Adapter Support AC Power Cord ( Optional 60W or 90W ouput models ) Status Description Indicator Red LED ON Power ON,Normal Power Supply Power Indicator Power OFF or Power failure Green LED ON... - Page 8 PSE6004 Series can be estimated by indicator on front panel. Switch Datasheef...
