Summary of Contents for GSS HAV 160

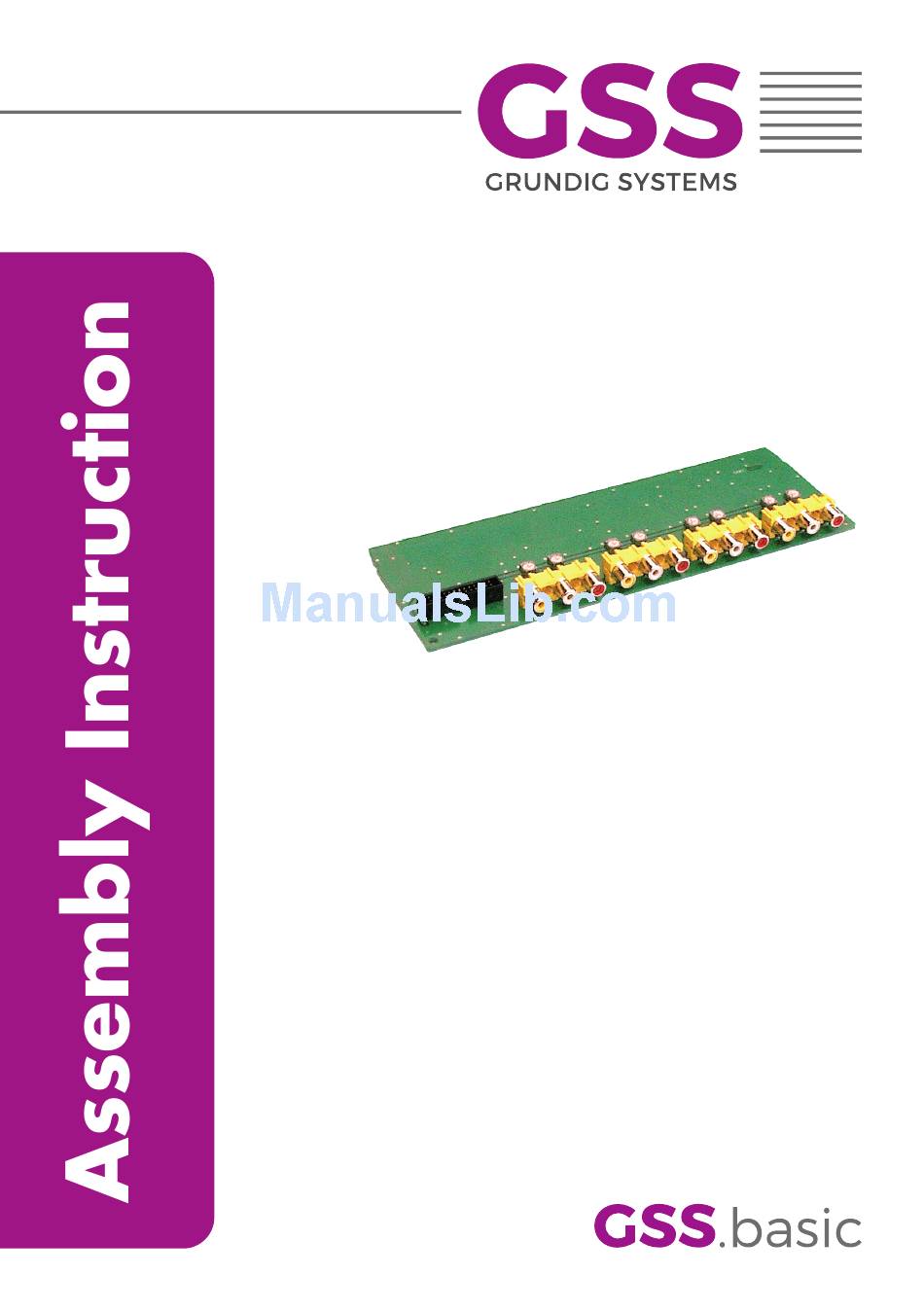

- Page 1 HAV 160...
- Page 2 n h a l t s v e r z e I c h n I s 1 Safety regulations ....................3 2 General information ..................3 Scope of delivery ................3 Meaning of the symbols used ............... 4 Technical data..................4 Description ..................
- Page 3 I n f o r m a t I o n 2.1 s c o p e d e l I v e ry 1 AV connection board HAV 160 1 AV cable 1 Brief Assembly Instructions - 3 - HAV 160...
- Page 4 2.2 m e a n I n g t h e s ym b o l s u s e d Important note —> General note – – Optional use of the buttons • Performing works 2.3 t e c h n I c a l data The requirements of the following EU directives are met: 2011/65/EU, 2014/30/EU, 2014/35/EU...

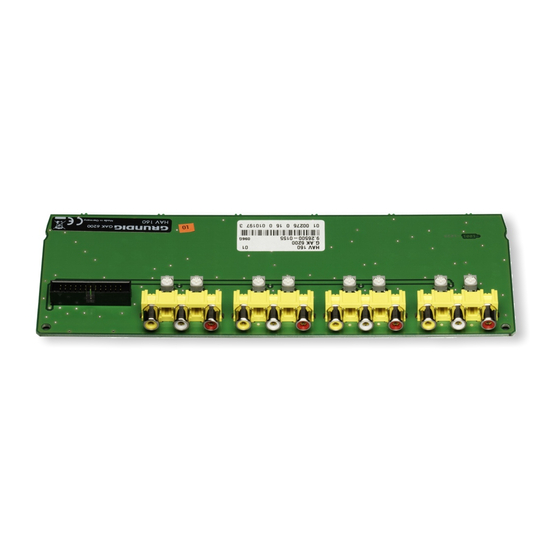

- Page 5 2.4 d es c r I p t I o n The AV connection board HAV 160 is designed for feeding audio and video signals into the modulator modules HMM 470 and HMS 470. The audio signals that have been fed in reach the AV interface via the audio sockets (red = right-hand channel, white = left-hand channel / mono) as well as the downstream level regulator.
- Page 6 3.2 c o n n e c t I n g t h e m o d u l e Channel strip ”A“ Audio right Audio mono / left Video Channel strip ”B“ Channel strip ”C“ Channel strip ”D“ • Using the AV cable , connect the AV connection board to the modulator module.
- Page 7 4.2 p r o g r a m m I n g t h e m o d u l ato r m o d u l e If a mono audio signal (white Cinch socket) is fed in, you program the cor- responding channel strip of the connected mono modulator module to “Mono L”...
- Page 8 Phone: +49 (0) 911 / 703 8877 • Fax: +49 (0) 911 / 703 9210 www.gss.de/en • info@gss.de Service: Phone: +49 (0) 911/703 2221; Fax: +49 (0) 911/703 2326; service@gss.de Alterations reserved. Technical data E. & O.E. © by GSS Grundig Systems GmbH...
