SJE10 USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SJE10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Axesstel SJE10

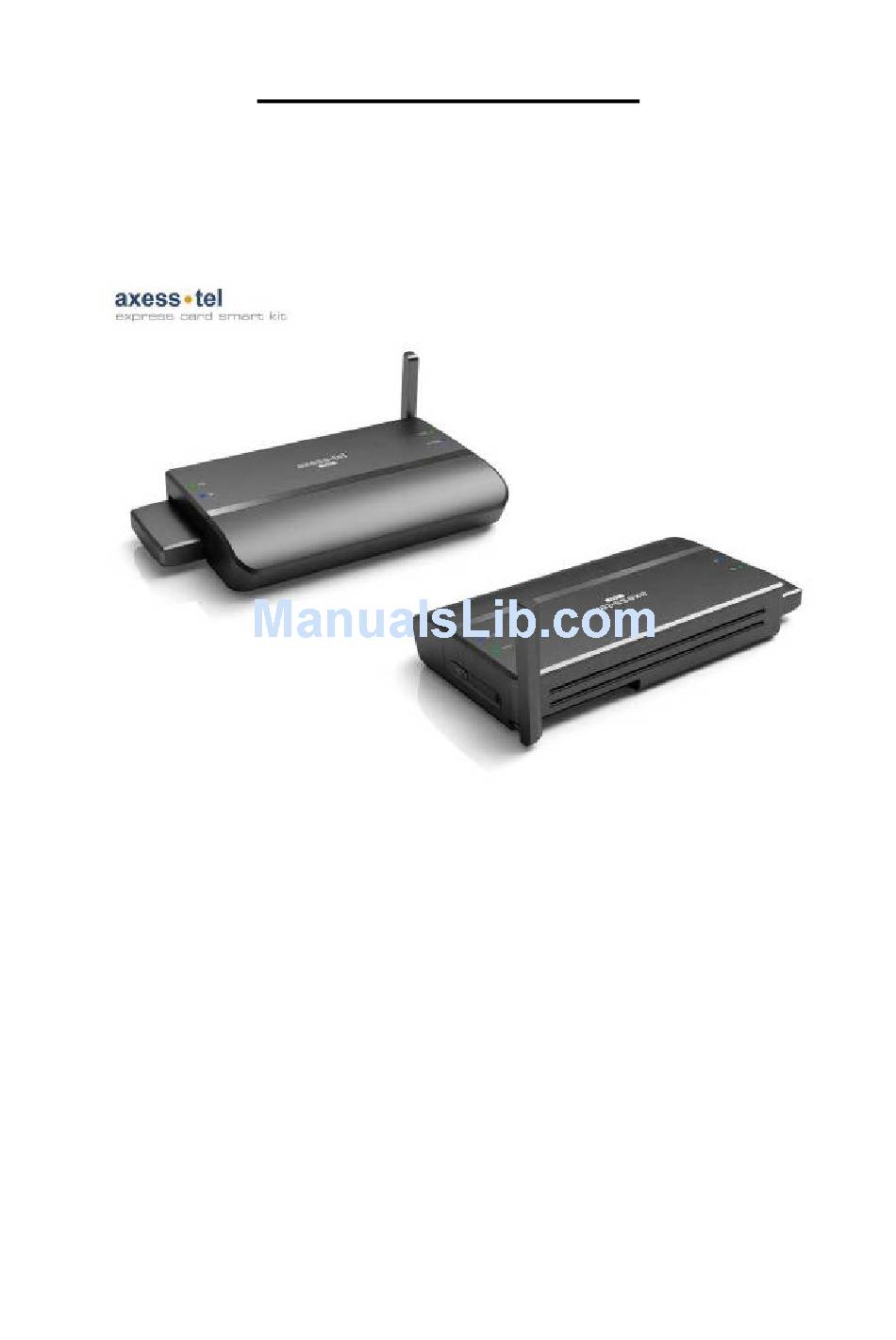

  • Page 1 SJE10 USER MANUAL...

  • Page 2: Important Notice

    Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open. The Axesstel WIFI smart kit may be used at this time.

  • Page 3: Limitation Of Liability

    ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Axesstel aggregate liability arising under or in connection with the Axesstel product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid...

  • Page 4: Table Of Contents

    Table of Contents 1. Introduction. …………………………………………..……….. 5 2. Product Overview. ……………………………………...…..… 6 3. Knowing your Smart Jacket. ……………………………..……….. 9 Package Contents. …………………………………...…………...9 Smart Jacket Interface………………………………………………..…9 System Components. ………………………………..…………..10 4. Connecting and Configuring your Smart Jacket …….……….…12 5. Web Manager User Interface. ……………….…………..…... 16 Basic Settings.

  • Page 5: Introduction

    Introduction Thank you for purchasing the Axesstel SJE10 WIFI Smart kit (the Smart Jacket). This user manual will help you setup, configure and outline best practices for maximizing your wireless home network performance with the Smart Jacket. Please be sure to read through this User Manual completely, and pay special attention to the section entitled “Placement of your Smart Jacket for Optimal...

  • Page 6: Product Overview

    In minutes you will be able to connect your computers to the Internet, share your Internet connection and network your computers. The following is a list of features that make your new Axesstel Smart Jacket an ideal solution for your home or small office network. Implementation of these features depends on the particular service provider and account features you have chosen.
  • Page 7 Actual speed depends on the network conditions. HSUPA Provides up-link performance of up to 5.76Mbit/s. Actual speed depends on the network conditions. Once the connection is established, you can open your browser and connect to any web site that is accessible through the Internet, or access other Internet services (such as email).
  • Page 8 Solid Yellow Valid connection in WCDMA Blinking Yellow Data transferring in WCDMA Solid Red Valid connection in GPRS Blinking Red Data transferring in GPRS Signal LED Solid Blue Strong signal Blinking Blue (once per blinking) Medium signal Blinking Blue (twice per blinking) Low signal Web-Based Advanced User Interface You can set up the Smart Jacket’s advanced functions easily through web browser, without having to install additional software onto the computer.

  • Page 9: Knowing Your Smart Jacket

    Knowing your Smart Jacket Packages Contents • Smart Jacket main unit • User Manual • Side Cover • Power Supply • Battery Smart Jacket Interfaces The Smart Jacket has been designed to be placed on a desktop. The LED indicators are easily visible on the top of the Smart Jacket to provide you with information about network activity and status.

  • Page 10: System Components

    Solid Blue Wi-Fi network within Modem is activated Blinking Blue Active data passed through Wi-Fi 3. Power Jack Connect the included 5V DC power supply to this jack. 4. Rechargeable Battery System components Your Smart Jacket is just one part of a system designed to provide you with a wide range of communication features.
  • Page 11 The Smart Jacket The Smart Jacket provides your computer with a connection to the GSM/WCDMA wireless network. Every GSM network operates on one of four radio frequency bands (850MHz, 900MHz and 1800/1900MHz) and WCDMA for three frequency bands(850MHz, 1900MHz and 2100Mhz). The Smart Jacket is available in five configurations: A GSM/WCDMA service provider account Companies that operate GSM/WCDMA networks and provide access to these...

  • Page 12: Connecting And Configuring Your Smart Jacket

    Connecting and Configuring your Smart Jacket The Smart Jacket has been provisioned at the factory for use with a particular service provider. This sets the Smart Jacket to use particular radio channels and enables services specific for that provider. You will have access to more advance features of the Smart Jacket such as Wi-Fi configuration, and password management.
  • Page 13 Open your wireless interface of your PC. Then try to find the SSID”SJE10”. Then, please associate to that SSID. Then you could configure the SJE10 through WEB Browser by enter the http://192.168.1.1 to the browser. │ Step 3 Preparing your PC Your Smart Jacket’s Wireless is configured with DHCP by default.
  • Page 14 Select “Internet Protocol (TCP/IP)”. Press the “Properties” button. If there is no TCP/IP line listed, you will need to install TCP/IP first. 3.4 Check “Obtain an IP address automatically” 3.5 Check “Obtain DNS Server address automatically” 3.6 Click Ok to exit Properties 3.7 If asked to re-start the PC, click “YES”.

  • Page 15: Web Manager User Interface

    Step 1 Access Network Setup 1.1. Connect the PC to your Smart Jacket using through the wireless interface. Associate the SSID “SJE10” and get the IP by DHCP setting of PC. 1.2 Then enter the http://192.168.1.1 to your WEB Browswer. Enter the User Name and Password then click "OK".
  • Page 16 │ Step 2 Navigate web-based UI The Basic Setting page is the first page you will see when you access the web based Advanced User Interface (UI). The basic setting page shows you a quick view of the Smart Jacket’s login setting. All advanced setup pages can be reached from this page.

  • Page 17: Basic Settings

    2. Page Name The page you are on can be identified by this name. This User Manual will sometimes refer to pages by name. For instance “Advanced > LAN IP Setup” refers to the “LAN IP Setup” page. Basic Settings Clicking on the header of the “Basic Settings”...

  • Page 18: Configuring The Wireless Network Settings

    To identify your wireless network, a name called the SSID (Service Set Identifier) is used. The default SSID of the Smart Jacket is “SJE10”. You can change this to anything you want to or you can leave it unchanged. If there are...
  • Page 19 Your Smart Jacket can operate in three different wireless modes: “g and b”, “g only”, and “b only”. g and b Mode In this mode, the Smart Jacket is compatible with 802.11b and 802.11g wireless clients simultaneously. This is the factory default mode and ensures successful operation with all Wi-Fi compatible devices.

  • Page 20: Router Status

    be changed if needed. If there are other wireless networks operating in your area, your network should be set to operate on a channel that is different than the other wireless networks. For best performance, use a channel that is at least five channels away from the other wireless network.
  • Page 21 2. Subnet Mask This is a unique, advanced feature of your Axesstel Smart Jacket. It is possible to change the subnet mask if necessary; however, do NOT make changes to the subnet mask unless you have a specific reason to do so. The default setting is “255.255.255.0”.

  • Page 22: Configuring Port Forwarding

    Configuring Port Forwarding Clicking on the header of the “Port Forwarding” tab will take you to the “Port Forwarding” header page. This function will allow you to route external (Internet) calls for services such as a web server (port 80), FTP server (Port 21), or other applications through your Router to your internal network.
  • Page 23 quickly. It is recommended that you disable the settings when you are not using a specific application. Block Services The Smart Jacket can be configured to restrict access to the Internet, email, or other network services at specific days and times. Restriction can be set for a single computer, a range of computers, or multiple computers.

  • Page 24: Wan Setup

    Deny. In this mode, the service table shows the client MAC address being blocked by the Smart Jacket. Allow. In this mode, the service table shows the client MAC address allowed by the Smart Jacket. To modify the service table (i.e. to add, change address or remove clients) simply enter the correct value and click “Apply”.
  • Page 25 HTTP Ping Blocking To turn OFF the HTTP response, select “Not Respond to HTTP on Internet Port” and click “Apply”. The Smart Jacket will not respond to an HTTP ping. LAN IP Setup Clicking on the header of the “LAN IP Setup” tab will take you to its header page. LAN TCP/IP Setup All settings for the internal LAN setup of the Router can be viewed and changed here.

  • Page 26: Static Route

    subnet mask if necessary; however, do NOT make changes to the subnet mask unless you have a specific reason to do so. The default setting is “255.255.255.0”. Use Router as DHCP Server The DHCP server function makes setting up a network very easy by assigning IP addresses to each computer on the network automatically.

  • Page 27: Technical Specification

    Technical Specifications This chapter provides technical product data for the Smart Jacket. Radio frequency and electrical specifications Tri-band UMTS: 2100/ 1900/ 850 MHz 3.5G (Band I/ II/V) Frequency Follow the EU230 Quad-band GSM / GPRS / EDGE: 850 / Range 900 / 1800 / 1900 MHz 3.5G Channel Bandwidth...

  • Page 28: Glossary

    Appendix A: Glossary HSDPA Provides improved down-link performance of up to 14.4 Mbit/s theoretically. Existing deployments provide up to 7.2 Mbit/s in down-link. Up-link performance is a maximum of 384 kbit/s. Part of 3GPP/UTRAN-FDD Release 5 WCDMA specifications HSUPA Provides improved up-link performance of up to 5.76 Mbit/s theoretically.
  • Page 29 change than hardware but more permanent than software stored on disk. host 1. A computer that uses a modem or a similar device to answer a calling computer. 2. A source or destination in the communication network. 3. A computer that contains data or files to be accessed by client computers.
  • Page 30 Mini Express Card Wireless Network Card model :Axesstel EU230(FCC ID:PH7EU230) manufactured by Axesstel, and may not be collocated with any other radiao cards. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 31 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
