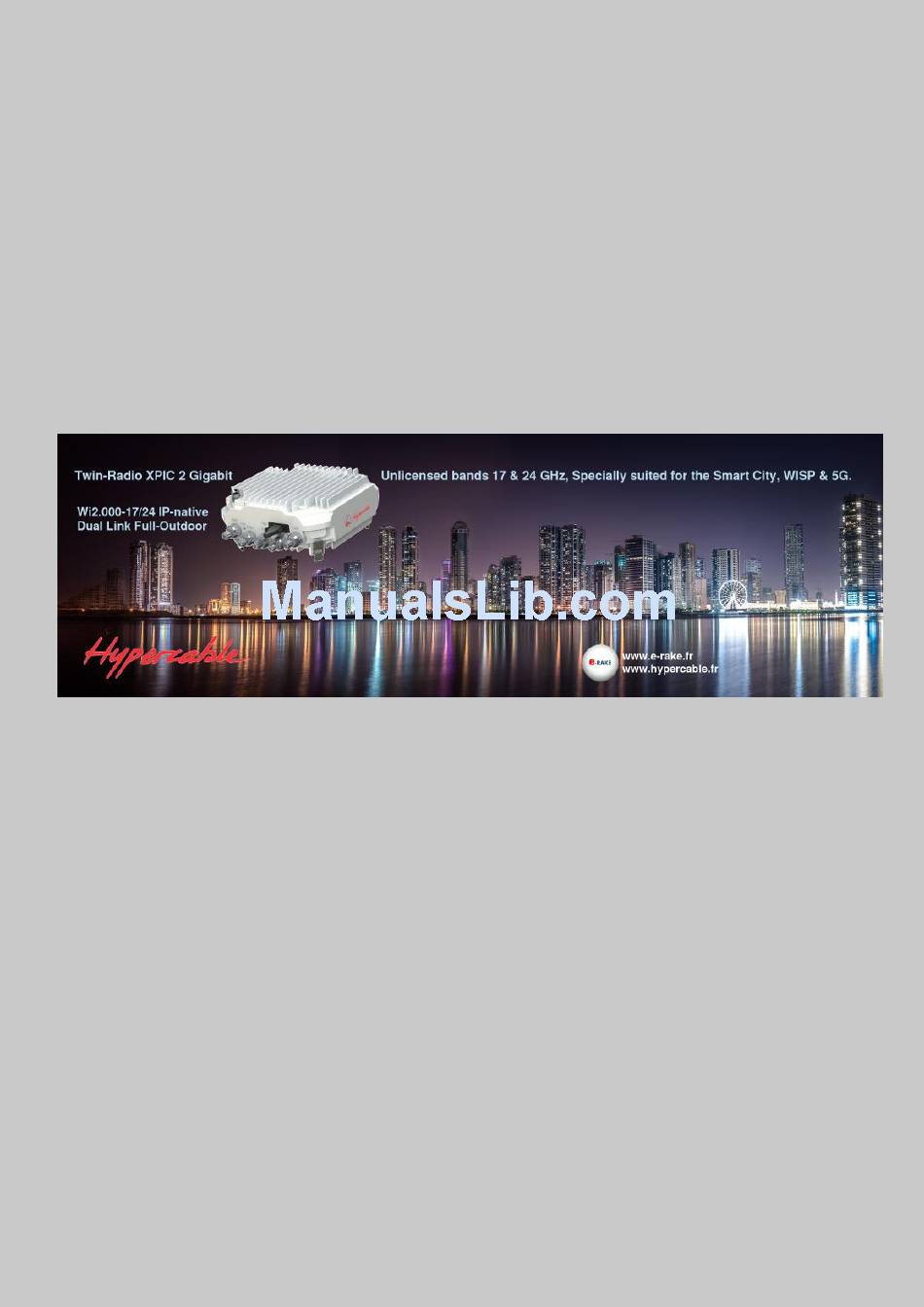

Hypercable TwinRadio HYC-Wi 2000 User Manual

Gigabit full duplex radio link 24 ghz xpic fdd radio ptp bridge ip link
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TwinRadio
Gigabit Full Duplex Radio Link 24 GHz
XPIC FDD Radio PTP Bridge IP Link
www.hypercable.fr www.e-rake.fr
HYC-Wi 2000
Includes install, configuration and trouble
shooting information for the broadband
wireless access outdoor radio.
info@hypercable.fr

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TwinRadio HYC-Wi 2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hypercable TwinRadio HYC-Wi 2000

  • Page 1: User Manual

    TwinRadio HYC-Wi 2000 Gigabit Full Duplex Radio Link 24 GHz XPIC FDD Radio PTP Bridge IP Link User Manual Includes install, configuration and trouble shooting information for the broadband wireless access outdoor radio. info@hypercable.fr...

  • Page 2: Table Of Contents

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr SPU Description............................4 Service connectors..........................4 Status LEDs ............................7 Interface LED ............................. 7 Power supply ........................... 10 Management Introduction ........................10 Management access ........................10 Local and remote setting ......................... 11 Storing the configuration and the configuration scope ..............
  • Page 3 Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr Ports Page ............................23 4.6.1 Parameters ..........................23 4.6.2 ETH VLAN ..........................24 4.6.3 ETH Advanced .......................... 26 IP Page ............................. 27 4.7.1 Address ............................ 27 4.7.2 Route/NAT ..........................28 4.7.3 SNMP ............................29 4.7.4...

  • Page 4: Spu Description

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr 1 SPU Description. 1.1 Service connectors Jumpers QSE (IQ) connector USB MNG SFP1 SFP2 LAN1 LAN2+POE DC-IN Storage Version 1.0 Page 4 of 39 info@hypercable.fr...
  • Page 5 Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr Connector Description SFP1 1x 1000BaseSX/Lx (SFP);primary SFP port for user traffic connection. SFP2 1x 1000BaseSX/Lx (SFP);secondary SFP port for user traffic connection. LAN1 1x 100/1000BaseT (RJ45); primary LAN port for user traffic connection. The priority based on ETH channel can be set in GUI or from the command line.
  • Page 6 Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr USB Storage (HOST) USB interface for connecting USB memory. It is meant for licenses backup and upload. Further it could be used for logs saving etc. The connection to USB port is via reduction cable. For pin configuration see a diagram below.

  • Page 7: Status Leds

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr 1.2 Status LEDs 1.3 Interface LED State Status No Ethernet Link SFP1 Link Ethernet Link established Random Flashing Ethernet activity Version 1.0 Page 7 of 39 info@hypercable.fr...
  • Page 8 Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr No Ethernet Link SFP2 Link Ethernet Link established Random Flashing Ethernet activity No Ethernet Link LAN1 Link Ethernet Link established Random Flashing Ethernet activity No Ethernet Link LAN2 Link Ethernet Link established...
  • Page 9 Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr SPU Status 2 – LED indicators State Status PWROK Indication, that power supply (DC-IN or POE) runs fine and in the right order. FLED0 FPGA debugging LED, there is no allocated function yet.

  • Page 10: Power Supply

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr 1.4 Power supply The device could be powered up in two different ways. This could be either over POE (port LAN2- POE), or through isolated power supply over separate power supply connector DC-IN.

  • Page 11: Local And Remote Setting

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr 2.2 Local and remote setting The unit allows to alter configurable parameters using any of the available access methods with administra- tive credentials. For purpose of this document we will be describing the WEB GUI interface but most of the settings have also the appropriate CLI command alternative as well as SNMP OID.

  • Page 12: First Configuration Steps

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr 3 First configuration steps This chapter describes the necessary steps to make the device and RF link up and running. It is recom- mended to do the basic configurations off-site. 3.1 Connection and Login In order to be able to successfully login into the device you need to know either its primary or secondary IP address and appropriate credentials.

  • Page 13: General System Configurations

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr After pressing the button there are multiple possible results depending on active user connections: No other active management connections or anoth- er ‘admin’, ‘user’ or ‘guest’ user logged in the CLI/SNMP with inactive ‘enable’ mode •...

  • Page 14: Ip Configurations

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr 3.3 IP configurations During the initial configuration it is necessary to setup basic IP parameters. This step is necessary for proper communication between local and remote side and optionally for ensuring remote access to device from customer’s network.

  • Page 15: Graphical User Interface (Web Gui)

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr 4 Graphical User Interface (WEB GUI) 4.1 Web header & Side panel description After successful login the main GUI window will appear: The GUI is divided in 5 general sections: Header section Basic link parameters are displayed in this top bar section.

  • Page 16: General

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr Status bar This section informs the user about status of ongoing actions. Content frame This area changes depending on the selected page. It contains various informational and functional ele- ments. Moreover most segments of the web GUI have little index mark next to them which show built-in help informations related to such segment upon clicking.

  • Page 17: Info

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr FORCE – both, noauto: This option disables the availability checking described in the AUTO mode. • Both channels will be used no matter what their condition is. Useful for debugging purposes. 4.3 Info The info section serves number of optional user-defined description fields: Device Name –...

  • Page 18: Alarm Conf

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr 4.4.2 Alarm Conf On this page you can enable which alarms will be reported back to the user as device status and SNMP traps (if configured). Only such alarms which are enabled in this section will be recorded in the unit’s Status section.

  • Page 19: Logs

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr 4.4.3 Logs This section provides historical data of the device condition. Sections enlisted under this page are inde- pendent on the current alarm settings so all events will be recorded. The historic span of these infor- mations depends on the link condition –...

  • Page 20: Analyser

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr parameter. In that case is the radio part automatically muted when abnormal transmission conditions are detected by the device. ATPC Function – Automatic Transmit Power Control enables or disables the ATPC feature. The •...

  • Page 21: Diagram

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr Auto Mute Remote Radio - Allows auto mute of remote radio if possible (this function requires syn- • chronization with remote side) Delay status – A remaining delay time countdown • SPECTRUM ANALYSER OUTPUT The spectrum analyser output frame.

  • Page 22: Advanced

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr thrHi - MSE threshold for switching to higher Rx modulation • Please note that the ACM settings of local and remote devices should match. 4.5.5 Advanced This section provides various options for advanced radio and modem part settings:...

  • Page 23: Ports Page

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr 4.6 Ports Page 4.6.1 Parameters In respect of management access type, traffic modification (number of independent channels over air) and the protection / aggregation function preference the user has to select the relevant Mode type (see the Mode settings) before starting any port settings.

  • Page 24: Eth Vlan

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr Flow Control - Informative field displays the actual duplex flow control mechanism settings. Flow ◦ control setting is available from page Ports / ETH Advanced 1588 – Precision time protocol source. (Not yet implement) ◦...
  • Page 25 Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr access – Port is a member of just one untagged VLAN defined with Default VLAN for the port. Only ◦ such ingressed untagged packets are accepted, whose VLAN number (VID), which is assigned from port's Default VLAN, exist in VTU table.

  • Page 26: Eth Advanced

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr Tag – Port is a member of edited VLAN as tagged. ◦ LISTING OF ACTUAL VTU VALUES List of VTU records (defined VLANs) in the ETH switch. The abbreviations in this list correspond to the first letter of the port mode definition in VTU records.

  • Page 27: Ip Page

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr This setting affect the Flow Control settings of particular ports. The settings is allowed for only such ports and Modes where is such settings possible. The possible values are: off – Flow control is disabled •...

  • Page 28: Route/Nat

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr HTTPS with Client Certificate – https access is possible only if the client (browser) has installed cli- • ent certificate (CC) signed by certification authority (CA). This option is available only if the device has the CA certificate uploaded.

  • Page 29: Snmp

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr 4.7.3 SNMP This window provides the configuration options of the inbuilt SNMP server: SNMP CONFIGURATION SNMP Enable – this check box enables the SNMP daemon in the device • SNMP Version – SNMP v2c or SNMP v3 can be used for SNMP access to device •...

  • Page 30: Count Page

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr FTP/USB Server – when „usb” is written into this box, the USB port is used as destination/source in- • terface for backup and/or restoration of device’s configuration. When “ftp://IP/directory_structure/” is in- serted into the box, an external FTP server is used as destination/source address for backup and/or restora- tion of device’s configuration and license/firmware upgrades.

  • Page 31: Ethernet

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr Rx Sync Count – number of synchronisations of the BER tester • BER – ratio of Rx Bit Count and Rx Err Count • TLE – time since last BER error; number of seconds from the last error occurrence. It should corre- •...

  • Page 32: Online Graphs

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr Please note that resolution of the displayed data will be lower for older records and higher for the newest. This time segmentation is 10 minutes, 1 minute and 1 second. 4.8.5 Online Graphs The functionality is inherited from the Graphs page described above with automatic refresh every 10 sec- onds with option to decrease the pooling period to 1 second.

  • Page 33: Advanced

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr 4.9.4 Advanced This section contains various administrative tools: MODEM UPGRADE In order to upgrade device’s firmware, configuration or license the user should select the appropriate file and press the UPGRADE button. The common format of files is: •...
  • Page 34 Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr According to the license file content a user can select specific Design Type which completely changes the system function. A T the moment there is only one design available – Design 601.

  • Page 35: Command Line Interface (Cli)

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr 5 Command Line Interface (CLI) 5.1 Basic command structure The built-in CLI, accessible via SSH, Telnet and embedded GUI Terminal window, provides full set of com- mands for device settings and monitoring. The basic command structure and output looks like this: device_name_NE|>show info...

  • Page 36: Altering Device Configuration Using Cli - Enable Mode

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr not valid a T pos:1 – the numeric value represents position of unrecognised argument of • the latest command. Such command was not executed no access – configuration changing action without ‘enable’ mode (see bellow) •...

  • Page 37: Simple Network Mangament Protocol (Snmp)

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr - delayed : [x] [ cmd] run cmd after x seconds, result in 'sh hist del' - enable : enable setting - ping : [xx.xx.xx.xx] ping to ip - quit : quit & logout - show : system status &...

  • Page 38: Mib

    Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr 5. Check the SNMP Enable checkbox and hit the APPLY & WRITE button. Note that you will be logged-out in order to reset the IP settings. This can take few seconds but the user data flow will not be interrupted 6.
  • Page 39 Full Outdoor 2+0 XPIC IP Link www.hypercable.fr www.e-rake.fr Name: .1.3.6.1.4.1.12654.1.5.1.1.2.3 (sysFceBasCmdWr) Value: 4 (startup) Version 1.0 Page 39 of 39 info@hypercable.fr...
  • Page 40 RSSI BNC RSSI BNC 2,49 Volts DC 2,34 3,00 2,18 2,02 www.hypercable.fr 1,87 1,71 2,50 1,56 1,40 1,25 1,09 2,00 0,93 0,78 0,62 0,47 1,50 0,31 RSSI … 0,16 0,00 1,00 0,50 0,00 RF level dB -100 info@hypercable.fr...
