merten ARGUS 180 Operating Instructions

ARGUS 180 flush-mounted sensor module© Schneider-Electric 2014V5710-581-0203/16
en
ARGUS 180 flush-mounted sensor
module
Operating instructions
System M
Argus 180 flush-mounted sensor module
Art. no. MEG5710-03../04..
Argus 180 flush-mounted sensor module
Art. no. MEG5710-60..
System Design
ARGUS 180 flush-mounted sensor module with
switch
Art. no. MEG5711-03../04..
ARGUS 180 flush-mounted sensor module with
switch
Art. no. MEG5711-60..
Necessary accessories
– To be completed with:
• corresponding inserts (see function overview)
• Frame in corresponding design.

For your safety

¼ DANGER
Risk of serious damage to property and per-
sonal injury, e.g. from fire or electric shock,
due to incorrect electrical installation.
Safe electrical installation can only be ensured if
the person in question can prove basic knowl-
edge in the following areas:
• Connecting to installation networks
• Connecting several electrical devices
• Laying electric cables
These skills and experience are normally only
possessed by skilled professionals who are
trained in the field of electrical installation technol-
ogy. If these minimum requirements are not met
or are disregarded in any way, you will be solely li-
able for any damage to property or personal inju-
ry.
Getting to know the sensor module

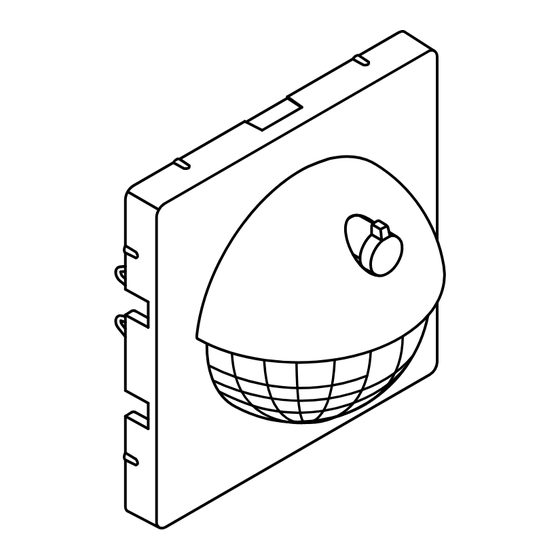

The ARGUS 180 flush-mounted sensor module (re-
ferred to below as sensor module) is a movement de-
tector for installation indoors. The sensor module detects
moving heat sources (e.g. people) within an adjustable
area of detection and triggers a staircase lighting func-
tion.
The maximum range of the sensor module is approx. 8
m to the left/right and approx. 12 m to the front at a 180°
angle of detection. As long as movement is detected, the
connected load remains switched on. The adjustable
overshoot time only begins when no further movements
are detected (trigger function).
The sensor module is equipped with a light sensor with
an adjustable brightness threshold so that the lighting is
only switched on when surroundings are below a speci-
fied brightness threshold (movement detector function).
If there is sufficient natural light, the switchable presence
function allows the sensor module to switch off the light-
ing even when a person is present.
The specified range and brightness threshold re-
|
fer to average conditions at the recommended
mounting height of approx. 1.10 m and should
therefore be taken as guide values. The range
can vary greatly when the temperature fluctuates.
For sensor modules with a switch, the function switch
can be used to switch between "Automatic mode", per-
manently "ON" and permanently "OFF".
Function overview of the sensor module
on receiving inserts
Complete the sensor module with the receiving inserts
for switching or dimming in order to perform local light
control and other functions.
Switching/dimming
• Electronic switch insert Sensor module:
brightness-dependent
• Relay switch insert
staircase lighting function
• Universal dimmer insert
• 1-10 V insert
• Dali insert
• Electronic switch insert Sensor module with a
switch:
• Relay switch insert
brightness-dependent
• Universal dimmer insert
staircase lighting function,
• 1-10 V insert
permanently switching on/
• DALI insert
off
• Electronic switch insert, Sensor module:
2-gang Channel 1: brightness-de-
pendent staircase lighting
• Relay switch insert, 2-
function,
gang
channel 2: brightness-in-
• Universal dimmer insert,
dependent staircase light-
2-gang
ing function
• Electronic switch insert, Sensor module with a
2-gang switch:
Channel 1: brightness-de-
• Relay switch insert, 2-
pendent staircase lighting
gang
function, permanently
• Universal dimmer insert,
switching on/off
2-gang
Channel 2: brightness-in-
dependent staircase light-
ing function, permanently
switching on/off
Function overview of the sensor module
on sending insert
Complete the sensor module with the sending central
unit insert in order to perform global light control via the
PlusLink (PL) .
Global light control:
• Central unit insert Sensor module / sensor
module with switch:
brightness-independent
staircase lighting function
Using the sensor module with alarm
systems
Movement/presence detectors are not suitable
|
for use as components of an alarm system.
Movement/presence detectors can trigger false
|
alarms if the installation site is unsuitable.
Movement/presence detectors switch on as soon as
they detect a moving heat source. This can be a person,
but also animals or differences in temperature through
windows. In order to avoid false alarms, the chosen in-
stallation site should be such that undesired heat sourc-
es cannot be detected (see section „Selecting the
installation site").
Connections, displays and operating
elements
Front:
A
B C B
A Function switch:
– : permanently "OFF"
– Auto: "Automatic mode"
– : permanently "ON"
B Green LED (during permanent ON/OFF switching
via the function switch / 24-h staircase lighting cir-
cuit)
C Red LED (in test mode)
Rear:
C D
2
min
10s
30min
B
Time
Test
ON DIP
1 2 3 4
Sensi-
tivity
A
A Module interface
B DIP switches
1: Presence function / movement detector function
2: Double overshoot time for channel 2
3: Prewarning for channel 1
4: 24-h staircase lighting circuit
C Potentiometer for overshoot time
D Potentiometer for brightness threshold
E Potentiometer for sensitivity
C
E
Lux
