Summary of Contents for One Tech OTB-F009B

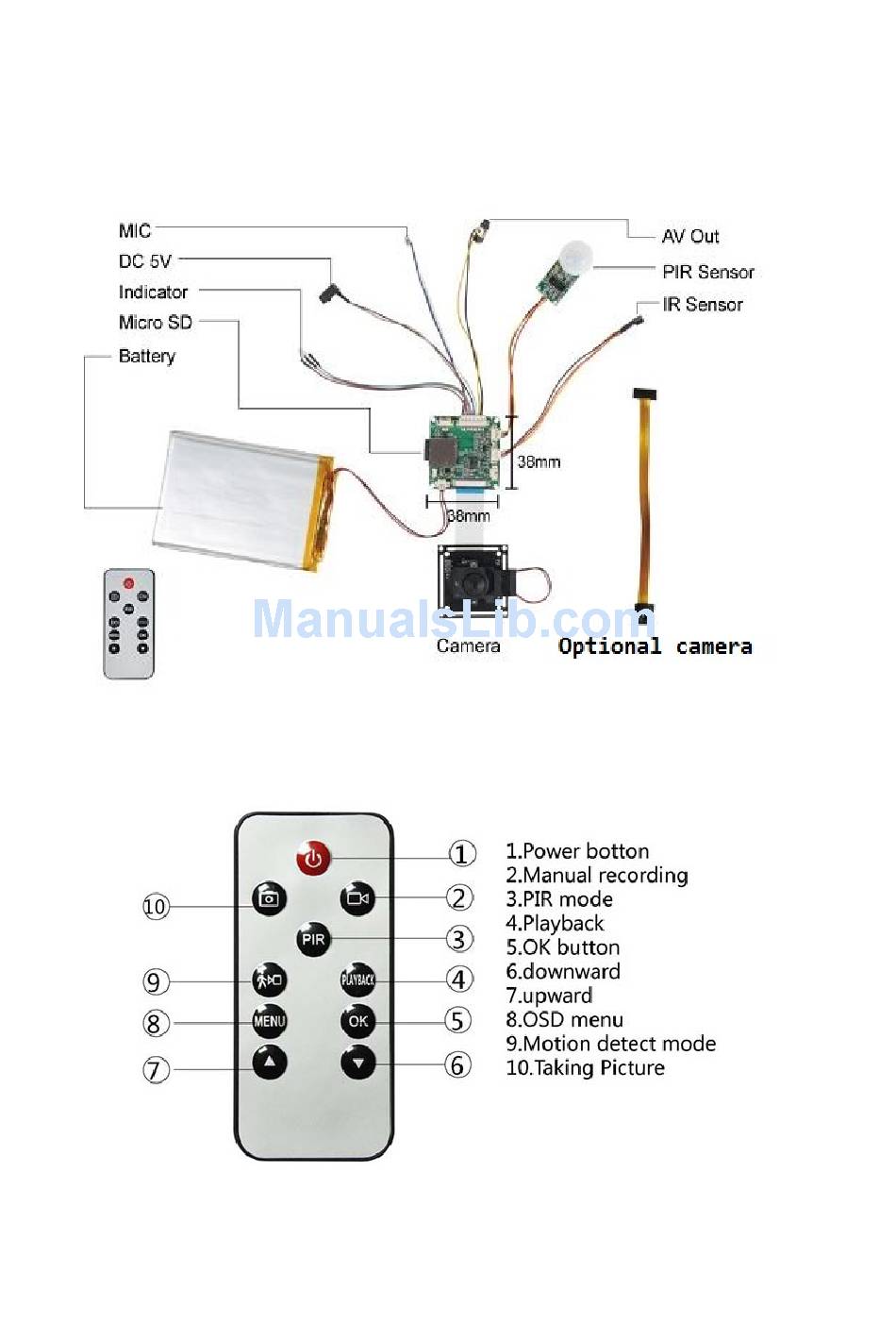

- Page 1 User Manual OTB-F009B 1.1 1080P Full HD Mini Module Layout OTB-F009B 1.2 Remote Control Functions ...
- Page 2 1.3 Feature: Main chipset STK3228 Image Sensor 1/3 inch 2.0 Megapixel OV2710 Video Resolution 1920x1080P(NTSC/PAL) HD(1280*720P),D1(720*480) Video Compression H.264 Recording Video Format .MP4 lens 3.7MM Pinhole View Angle 65 degree Microphone Built-in Motion activated record, PIR motion record and Function schedule record, Taking pictures PIR standby 60days...
- Page 3 A.Connect a DC 5V adaptor ,will be motion detection recording ,just use remote controller to turn off. There is no indicator to notice when charging ,which is controlled by circuit,if full ,will not charge anymore automatically. Notice:The product support recording when the device is charging by a DC 5v adaptor. Indicator: Indicator function green led 1s ,red led 3s , turn on Red led flash 3times quickly...
- Page 4 recording ,. Press”PIR mode” button againe to stop recording and Save the current file. The item will go to standby mode indicated by green LED light 6.Before operate Playback/Menu ,Plz let the camera in standby ,not keep any mode working. 7..
- Page 5 3. Click “Setup”,will show below picture ,you can set date/time,upgrade ,reset ,version,format micro sd card,language ETC..
