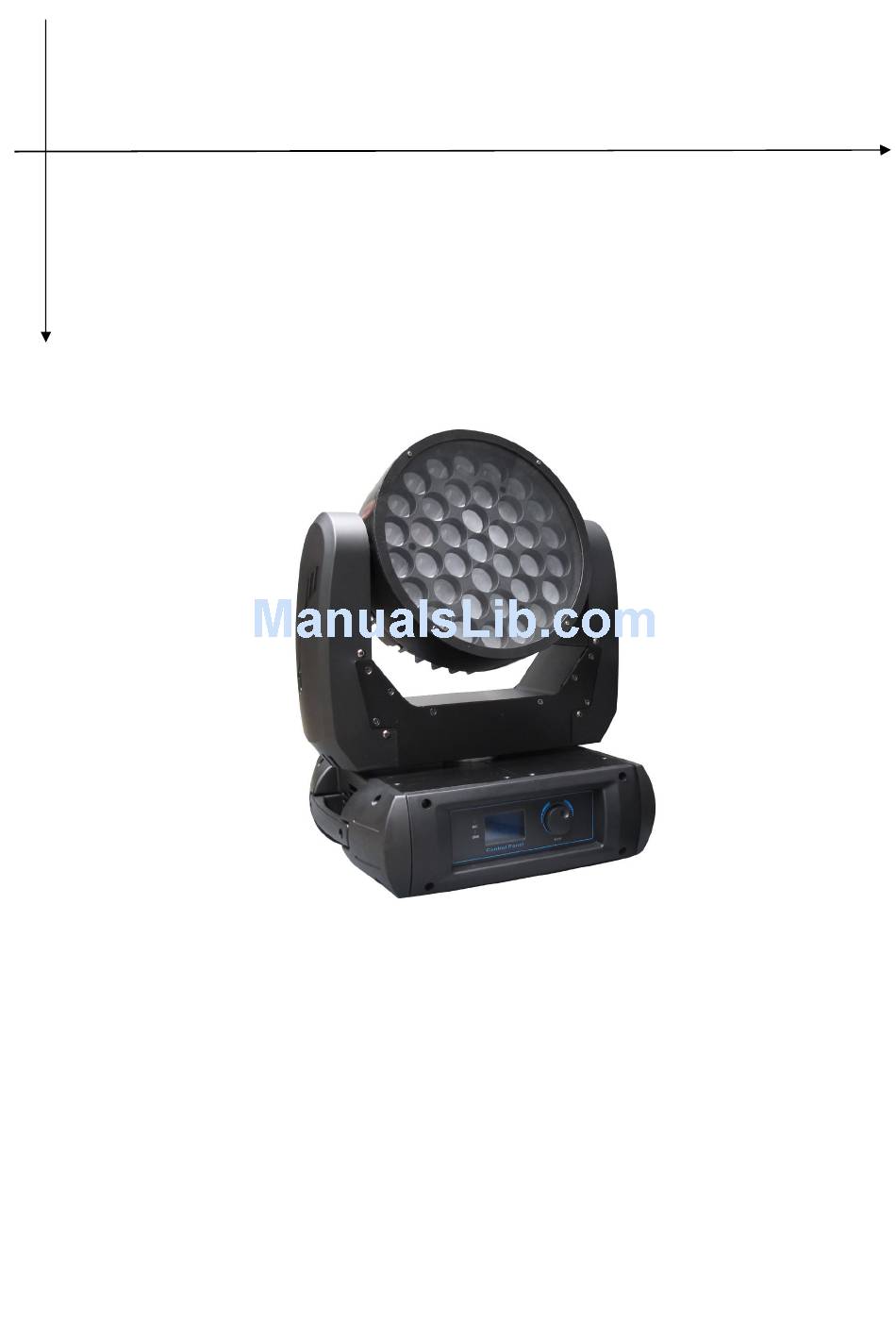

- Page 1 LED ZOOM WASH MOVING HEAD ST-3715 37X15W USER MANUAL Ver1.0...
-
Page 2: Table Of Contents
Table of contents 1. Preface 1.1 Packing list 1.2 Unpacking instructions 1.3 AC Power 1.4 Safety instructions 2. Introduction 2.1 Features 2.2 DMX channel 3. Setup 3.1 Fuse replacement 3.2 Fixture linking Data cabling DMX data cable 3.3 3-Pin to 5-Pin conversion chart 3.4 Setting up a DMX serial data link 3.5 Master/Slave fixture linking 3.6 orientation... -
Page 3: Preface
1. Preface 1.1 Packing list Product name quantity moving head light 1 pcs Power -line 1 base User manual 1 pcs 1. 2 Unpacking instructions On receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are presented, and have been received in a good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows, sign of mishandling. -
Page 4: Introduction
Maximum ambient temperature (Ta) is 104 ℉ (40 ℃ ). Do not operate fixture at temperatures higher than this. In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. -
Page 5: Setup
3. Setup Disconnect the power cord before replacing a fuse and always replace with the same type fuse. 3.1 Fuse replacement With a flat head screwdriver wedge the fuse hold out of its housing. Remove the damaged fuse from its holder and replace with exact same type fuse. Insert the fuse holder back in its place and reconnect power. -
Page 6: Orientation
2. Connect the end of the cable coming from the first fixture which will have a (female) 3 pin connector to the input connector of the next fixture consisting of a (male) 3 pin connector. Then, proceed to connect from the output as stated above to the input of the following fixture and so on. - Page 7 Red (Area A) 0-255 0-100% Green (Area A) 0-255 0-100% Blue (Area A) 0-255 0-100% White (Area A) 0-255 0-100% Amber (Area A) 0-255 0-100% Red (Area B) 0-255 0-100% Green (Area B) 0-255 0-100% Blue (Area B) 0-255 0-100% White (Area B) 0-255 0-100%...
-
Page 8: Technical Specifications
224-231 Red/Green/White + Amber 232-239 Green/Blue/White + Amber 240-247 Blue/Red/White + Amber 248-255 Red/Green/Blue/White + Amber Switching the LEDs/Strobe/Reset 0-10 LED OFF 11-20 Neutral 21-30 Reset 31-200 Strobe-effect with increasing speed 201-250 Random strobe-effect with increasing speed 251-255 Neutral Dimmer 0-255 0-100% Dimmer Pan Fine... - Page 9 5. techno-specification illuminates Voltage 100V-240V 50Hz-60HZ LEDs 37*15w 5 in 1 LEDs 540° Tilt 270° Tiptop environment temperature 104°F(40°C) Date input/output 3pin XLR-connection、anode socket 13.1KG Size 41x41x41.5cm...
