SHANY MZC-EX1000B User Manual

36x auto focus zoom camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

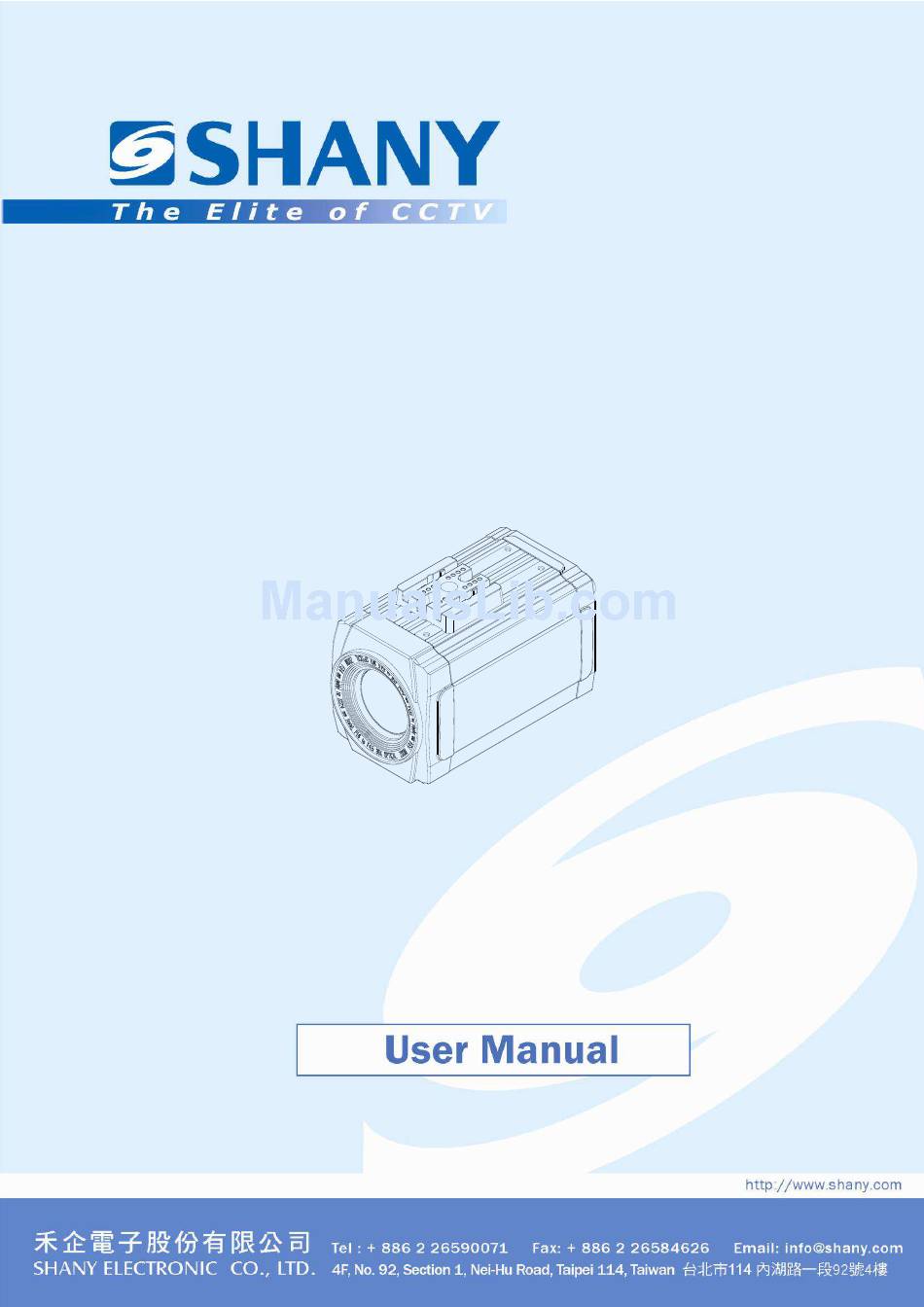

36x Auto Focus Zoom Camera
MZC-EX1000B
Thanks for purchasing our product. Before operating the unit, please read the instructions
carefully and keep this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MZC-EX1000B and is the answer not in the manual?

Questions and answers

Summary of Contents for SHANY MZC-EX1000B

  • Page 1 36x Auto Focus Zoom Camera MZC-EX1000B Thanks for purchasing our product. Before operating the unit, please read the instructions carefully and keep this manual for future reference.

  • Page 2: Safety Warnings

    Safety Warnings  1. Read manual carefully before installing the unit. Please read this manual first for correct installation and operation.  2. Never install the camera on a ceiling that cannot hold its weight. The product may fall down and cause damages. ...
  • Page 3  10. Cleaning Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.  11. Never disassemble the camera nor put impurities in it. Disassembly or impurities may result in trouble or fire. ...

  • Page 4: Table Of Contents

    Table of Contents Product Overview……….………………..………………………………..…………….…..4 Main Features.…..…………..………………………………………………………..4 Content List……………………………………………………………………….…….4 Specifications……………..……….………………………………………………..….5 Dimension………………………………………………………………………………………6 2.1 Dimension…………….…………………………………………………………………… 2.2 Descriptions………………………………………………………………………………… Camera Setup operations……………………………………………………………………6 Menu Tree……………………………………………………….…………….…..6 Main Menu…………………………...………………………………………………….6 3.3 Submenus of the Main Menu………………………………………………………… 3.3.1 SYSTEM……………………………………………………………………………..7 3.3.2 DISPLAY……………………………………………………………………………..8 3.3.3 PRESET……………………………………………………………………………..9 3.3.4 CAMERA…………………………………………………………………………...10 3.3.4.1 CAMERA – LENS………………………………………………………..11 3.3.4.2 CAMERA - IMAGE…………............…..13 3.3.5 ALARM………..................…..15 3.3.6 REBOOT……...................…..15...

  • Page 5: Product Overview

    1. Product Overview MZC-EX1000B, a newly developed powerful 36x Zoom Camera, is built with 1/4" Sony Exview HAD CCD. Featured with 36x optical auto focus, this camera reproduces sharp and clear images whether zooming-in or zooming-out. 1.1 Main Features: ...

  • Page 6: Specifications

    1.3 Specifications TV System NTSC Image Sensor 1/4 Sony Exview HAD CCD Total Pixels 470,000 Pixels 410,000 Pixels Resolution ; DSP Color: 540TVL, B&W: 560TVL ; SONY HQ1 Color: 0.7Lux@F1.6 (30IRE) ; Minimum Illumination B&W: 0.1Lux@F1.6 (30IRE) 1.0Vp-p Composite, 75Ω; Y/C Video Output Signal to Noise Ratio More than 50dB...

  • Page 7: Dimension

    2. Dimension 2.1 Dimension FY2111B...

  • Page 8: Descriptions

    2.2 Descriptions  Video Connector This is an output for connection to a video monitor, etc (75Ω).  Setting Button SETUP button UP & DOWN button LEFT & RIGHT button  Communication Connector 1. RS485+ 2. RS485- 3. Day & Night Output 4.

  • Page 9: Camera Setup Operations

    3. Camera Setup Operations 3.1 Menu Tree MAIN MENU SYSTEM CAMERA LANGUAGE CAMERA ID BAUD RATE PROTOCOL FIRMWARE RESTORE TITLE DISPLAY CAMERA PRESET CARMERA ID DATE/TIME ZOOM RATIO ALARM ALARM MESSAGE TITLE TITLE MESSAG PRESET PRESET NO. POSI SAVE DELETE TITLE PAUSE TIME CAMERA...

  • Page 10: Submenus Of The Main Menu

    3.2 Main Menu MAIN MENU SET  SYSTEM SET  DISPLAY SET  PRESET SET  CAMERA SET  ALARM STARTUP  REBOOT EXIT 3.3 Submenus of the MAIN MENU There’re several submenus of the main menu: SYSTEM, DISPLAY, PRESET, CAMERA, ALARM, and REBOOT.

  • Page 11: Display 8

    3.3.1-SYSTEM ENGLISH TRADITIONAL CHINESE SIMPLIFIED CHINESE JAPANESE LANGUAGE 1~1024 CAMERA ID SET  CAMERA TITLE 0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z a b c d e f g h i j k l m n o p q r s t u v w x y z .

  • Page 12: Camera Title

    3.3.2-DISPLAY OFF ON CAMERA ID OFF ON CAMERA TITLE OFF ON PRESET TITLE  OFF ON DATE/TIME DATE / TIME HH：MM：SS TIME YY：MM：DD DATE FORMAT YY：MM：DD MM：DD：YY DD：MM：YY RETURN EXIT OFF ON ZOOM RATIO OFF ON ALARM MESSAGE CAMERA ID: Select ON to show the Camera ID on the screen;...
  • Page 13 3.3.3-PRESET 1-256 PRESET NO. POSI SET U ZOOM D/L FOCUS R PRESS ENTER CONFIRM SAVE SET OK ABOVE ALL DELETE TITLE SET 0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z a b c d e f g h i j k l m n o p q r s t u v w x y z...

  • Page 14: Camera - Lens

    3.3.4-CAMERA 3.3.4.1-CAMERA-LENS LENS SET  REAL TIME AF ONE PUSH MANUAL FOCUS  AUTO MANUAL IRIS  1-15 BRIGHTNESS  1-15 ZOOM SPD  1-15 FOCUS SPD  COLORB&WAUTOEXT SCHEDULE DAY / NIGHT COLOR B&W  AUTO LEVEL 1-10 DLY TIME 1-10 SEC OUTPUT ...
  • Page 15 LENS: Settings concerning Lens can be set in here. FOCUS: REAL TIME AF: Select REAL TIME AF to detect the ambiance light and to adjust the focus automatically. ONE PUSH: When the zoom is changed with the TELE or the WIDE buttons, it becomes AF Mode.
  • Page 16 EXTERNAL: Use the external signal to switch COLOR/B&W. INPUT: Select input level. D&N IN: It’s the PIN 4 external control connector. INPUT L LEVEL H LEVEL SYSTEM D&N IN HIGH COLOR B&W B&W COLOR (HIGH: OPEN or 5V; LOW: GND) SCHEDULE: When SCHEDULE is selected, timing can be set to switch Day/Night Mode.

  • Page 17: Camera - Image

    3.3.4.2-CAMERA-IMAGE IMAGE SET    MANUAL AUTO EXPOSURE MODE MANUAL--SHUT SPD 1/50(60) 1/120(1/100) 1/250 1/500 1/1000 1/2000 1/4000 1/10000 1/100000 AUTO-MAX SHUT SPD 1/250 1/500 1/1000 1/2000 1/4000 1/10000 1/100000  ATW AUTO MWB ONE PUSH WHITE BALANCE 3200K 6300K ...

  • Page 18: Exposure Mode

    IMAGE EXPOSURE MODE: To adjust the shutter speeds. MANUAL: Adjust shutter manually. SHUT SPD: adjust shutter speed.   1/50(60) 1/120(1/100) 1/250 1/500 1/1000 1/2000 1/4000 1/10000 1/100000 AUTO: Automatic Electronic Shutter MAX SHUT SPD: adjust the maximum shutter speed; shutter will change ...
  • Page 19 FLC: Flicker can be eliminated by setting FLC to be ON. AGC (AUTO GAIN CONTROL) AUTO: when AUTO is selected, the maximum gain is 26dB. MANUAL: when MANUAL is selected, the maximum gain can be adjusted manually, adjusting range from -3 to 28dB. The more the level of gain increases, the brighter the screen and the level of noise increases.

  • Page 20: Alarm

    3.3.5-ALARM OFF ON IN SWITCH NC NO IN MODE OFF ON OUT SWITCH 100ms 200ms 300ms 500ms 1000ms 2000ms 3000ms OUT TIME 5000ms IN SWITCH: Select ON to set the alarm or OFF to cancel the alarm. IN MODE: NO: NORMAL OPEN; NC: NORMAL CLOSE. III.
