Summary of Contents for Lenz Flowmould 1.0
-

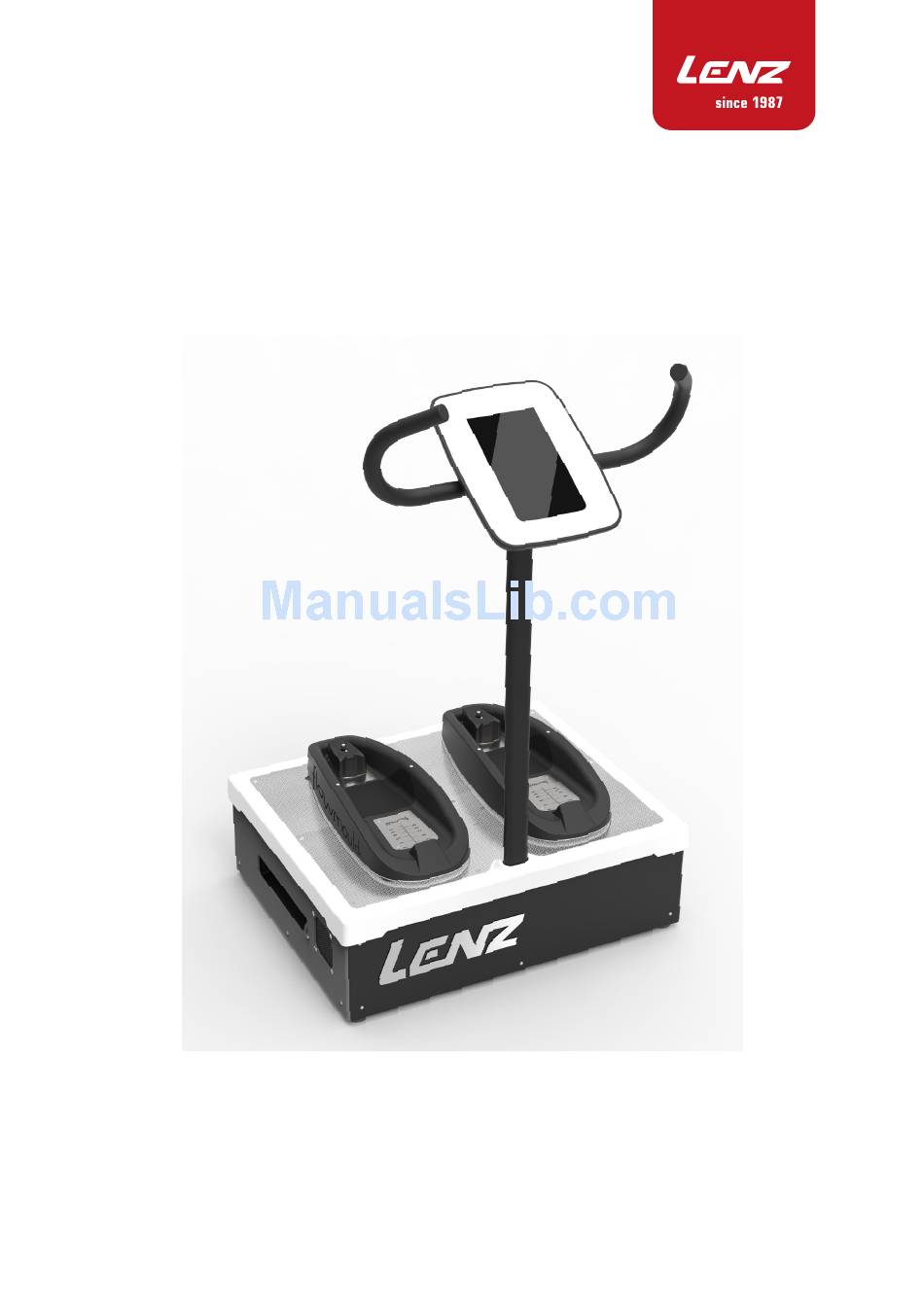

Page 1: Instructions For Use
INSTRUCTIONS FOR USE FLOWMOULD Manufacturer: Lenz Ges.m.b.H. English manual Model: Flowmould 1.0 Year of production: 2017... -
Page 3: Table Of Contents
Lenz Ges.m.b.H. Staudachstraße, 3 6858 Schwarzach Austria Index SCOPE ......... . . 5 1 - Technical information . -
Page 5: Scope
Lenz Ges.m.b.H. Staudachstraße, 3 6858 Schwarzach Austria Scope ● THE READING OF THESE INSTRUCTIONS FOR USE IS MANDATORY BEFORE PERFOMING ANY OPERATION ON THE MACHINERY ● THE INSTRUCTIONS FOR USE MUST BE KEPT ALWAYS AT HAND OF THE USER FOR AN IMMEDIATE CONSULTATION IF PROBLEMS REGARDING THE USE OR MAINTENANCE OF THE MACHINERY SHOULD EMERGE AT ANY TIME ●... -
Page 6: Technical Information
Lenz Ges.m.b.H. Staudachstraße, 3 6858 Schwarzach Austria 1 - Technical information 1.1 Machinery identification The FLOWMOULD has an identification plate showing the model, the year of ma- nufacture and serial number, applied by the manufacturer. This plate must not be damaged or tampered with for any reason. Below is an example of the plate: 2 - Technical data 2.1 Environment conditions... -
Page 7: Safety Instrucions
Lenz Ges.m.b.H. Staudachstraße, 3 6858 Schwarzach Austria 2.3 Machinery description The FLOWMOULD system is designed to make soles fitted to the athlete in diffe- rent sports, using specific soles by LENZ and the patented machinery object of this document. The machinery is capable of determine the correct shoe size of the user, align the foot via the onboard LASER and molding the sole through a thermal process. - Page 8 Lenz Ges.m.b.H. Staudachstraße, 3 6858 Schwarzach Austria 3.2 Emergency stop At any time, if necessary, it is possible to stop the machinery by activating the re- lative command on the touch screen. This command interrupts the heating of the soles and resets the machinery at the start settings.
-
Page 9: Transport, Unpacking, Installation
Lenz Ges.m.b.H. Staudachstraße, 3 6858 Schwarzach Austria 4 - Transport, unpacking, installation 4.1 Transport and unpacking The machinery is loaded on a pallet and then packed in a cardboard box. The total weight of the machinery and the packaging combined is over 75 kg, the- refore every movement of the packaging must be performed with specific handling equipment (transpallet, forklift). -
Page 10: Use Of The Machinery
Lenz Ges.m.b.H. Staudachstraße, 3 6858 Schwarzach Austria 5 - Use of the machinery 5.1 Operation of the machinery After starting the Flowmould APP, the device will automa- tically connect with the machinery, if not, please press the CONNECT button. In seconds, the app and the machinery will connect, and the ‘STANDBY’ screen will appear. - Page 11 Lenz Ges.m.b.H. Staudachstraße, 3 6858 Schwarzach Austria 5.3 Insole selection Connect the insoles to the machinery (see images in the back cover), inserting the flexprint of the insole in the dedi- cated base and blocking it with the magnetic clamp. The insole model is written on the sole. Once the insoles are in place, select the desired sole model by pressing the relative button.
- Page 12 Lenz Ges.m.b.H. Staudachstraße, 3 6858 Schwarzach Austria 5.5 Width and angle adjustment Adjust the width and angle of the soles using the buttons on the screen. It is possible either to select an automatic positioning ba- sed on one of the preset sports or to proceed with manual positioning. In order to make alignment easier, it is possible to activate two lasers that project a line onto the user’s leg (the red...
- Page 13 Lenz Ges.m.b.H. Staudachstraße, 3 6858 Schwarzach Austria 5.6 Heating, Cooling and Forming process After pressing the START button, the soles warming pro- cess begins. The cooling process begins after the heating process. Throughout the cycle, the surface underneath the soles will move to give shape to the soles themselves, these move- ments are normal and are part of the machine functions.
- Page 14 Lenz Ges.m.b.H. Staudachstraße, 3 6858 Schwarzach Austria 5.8 Errors Any errors that may occur while using the machine are shown by a red display at the bottom of the screen. In this situation, it is necessary to contact the store staff to solve the problem. In case of a malfunction, a pop up screen will appear.
-
Page 15: Disposal, Maintenance And Emergencies
Lenz Ges.m.b.H. Staudachstraße, 3 6858 Schwarzach Austria 5.9 Cleaning of the machinery The machine does not require specific cleaning operations other than those foreseen for the environment in which it is installed. ● IT IS FORBIDDEN TO USE AGGRESSIVE CLEANING PRODUCTS, WHICH MAY CAUSE DAMAGE TO THE PLASTIC COMPONENTS. 6 - Disposal, maintenance and emergencies 6.1 Disposal... - Page 16 Lenz Ges.m.b.H. Staudachstraße, 3 6858 Schwarzach Austria ● FOR THE REPLACEMENT OF ANY COMPONENTS, IT IS NECESSARY TO USE ONLY MANUFACTURER’S ORIGINAL SPARE PARTS ● DURING MAINTENANCE OPERATIONS IT IS NECESSARY TO USE PERSO- NAL PROTECTIVE EQUIPMENT WHERE NECESSARY 6.4 Emergency No emergencies are associated with the use of the machinery.
- Page 17 Lenz Ges.m.b.H. Staudachstraße, 3 6858 Schwarzach Austria EU DECLARATION OF CONFORMITY LENZ GesmbH Staudachstraße, 3 6858 Schwarzach AUSTRIA Declare under our sole responsibility that the product described below, in the state in which it was placed on the market: Fulfills all the relevant provisions of the following Directives: • 2006/42/EC Machinery Directive • 2014/35/EU Low Voltage Directive...
- Page 18 Lenz Ges.m.b.H. Staudachstraße, 3 6858 Schwarzach Austria T +43 (0) 5572 581 43 F +43 (0) 5572 58143 - 33 office@lenzproducts.com www.lenzproducts.com A copy of this document is also available in digital format on the website www.lenzproducts.com...
